Help needed for loose steering


lulzpwndyah

TJ Enthusiast
Joined
Jul 3, 2020
Messages
200
Location
Los Angeles, CA
I got my new suspension installed and I replaced the steering with a Currectlync at the same time also did the ball joints at the same time.
Ever since then though my steering wheel hasn't been straight. I got everything retorqued and took it to get an alignment and it was straight but soon after it went sloppy again. Sometimes the steering wheel is straight sometimes it isn't straight and is either left or right.... it moves sometimes when I hit bumps to the opposite side.

I don't think it has a dropped pitman. Can anyone suggest something? I called a different 4x4 shop than the one that installed my suspension but they can't take me until next week so I thought i'd see if I can figure it out here.

















LONGJP2

TJ Addict
Joined
Aug 11, 2019
Messages
1,377
Location
Illinois
I don't think it's part of the problem, but I would adjust the frame side track bar joint. Try to get it more evenly centered. That way you have more available joint travel when articulating.

As far as your issue, most will recommend a dry steering test to check for any play in the system.

OP
L

lulzpwndyah

TJ Enthusiast
Joined
Jul 3, 2020
Messages
200
Location
Los Angeles, CA
I don't think it's part of the problem, but I would adjust the frame side track bar joint. Try to get it more evenly centered. That way you have more available joint travel when articulating.

As far as your issue, most will recommend a dry steering test to check for any play in the system.

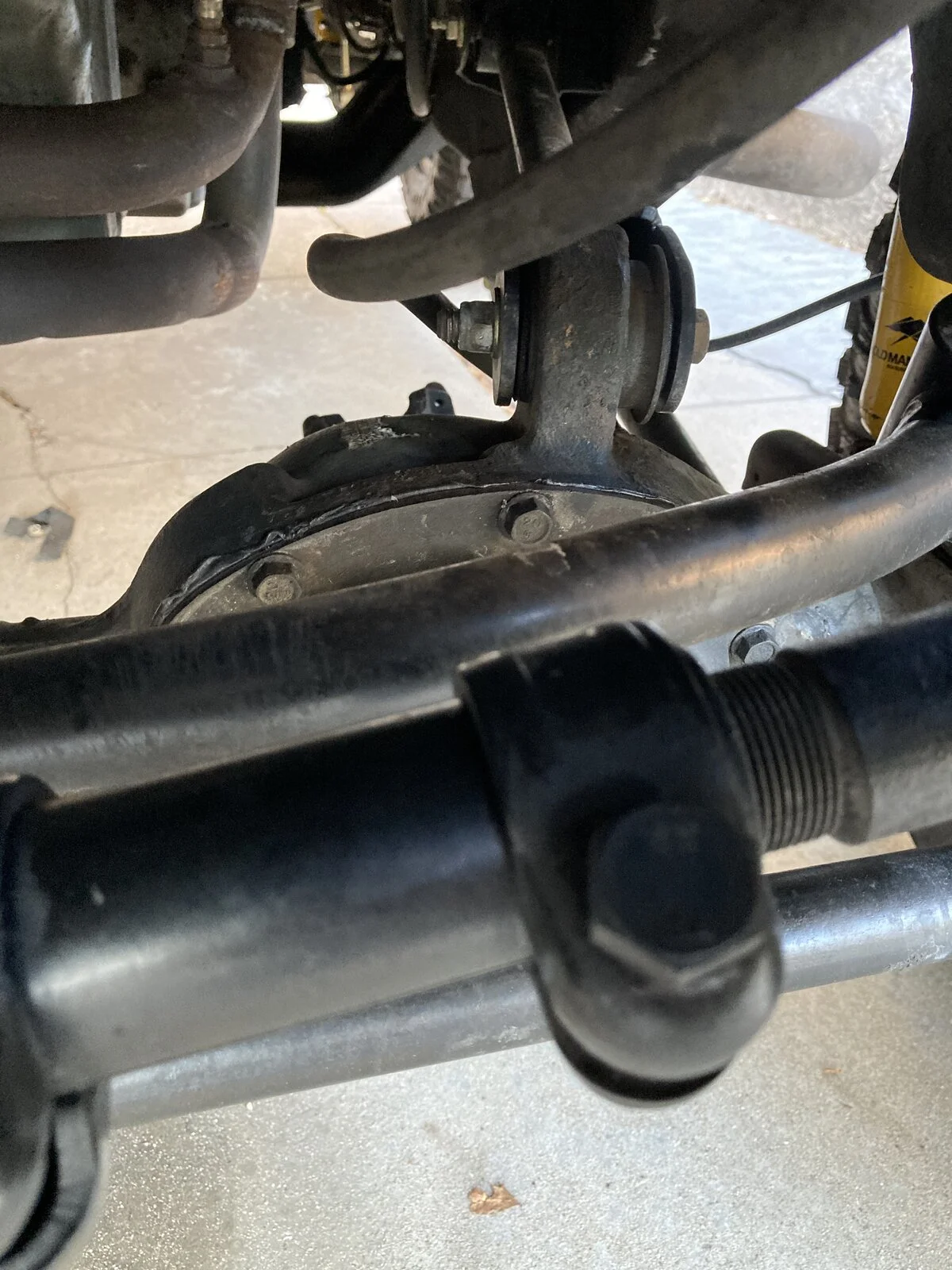

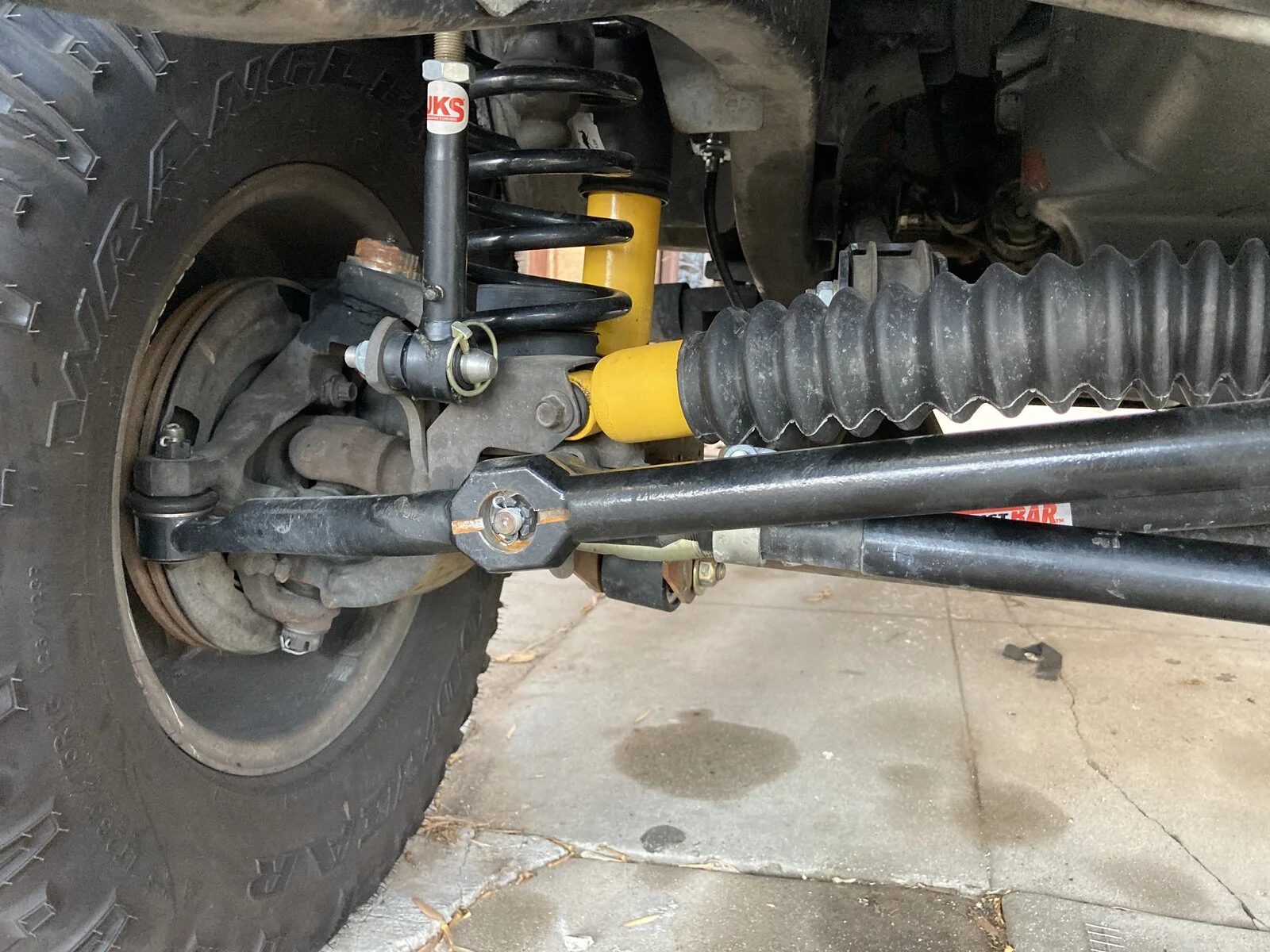

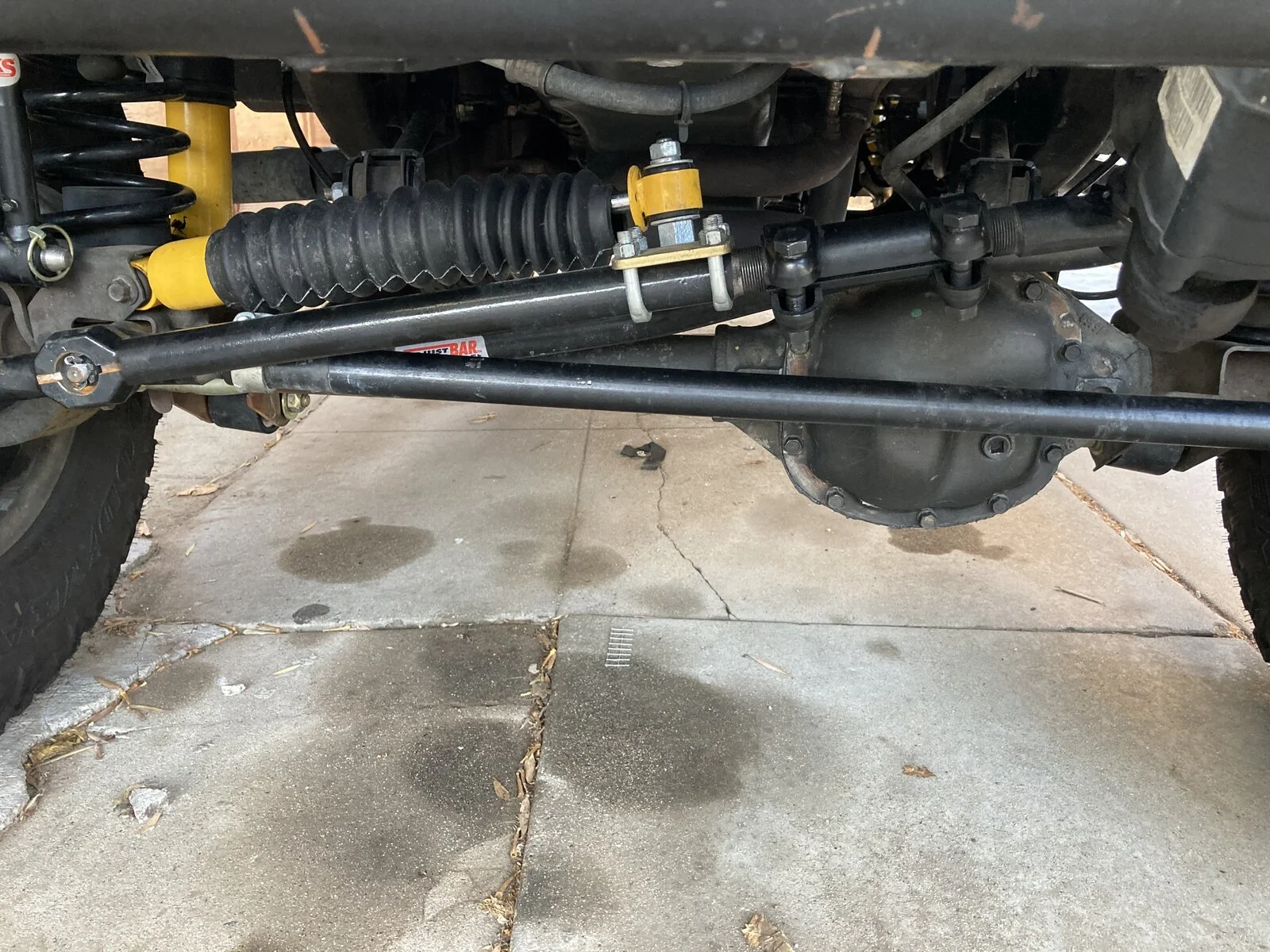

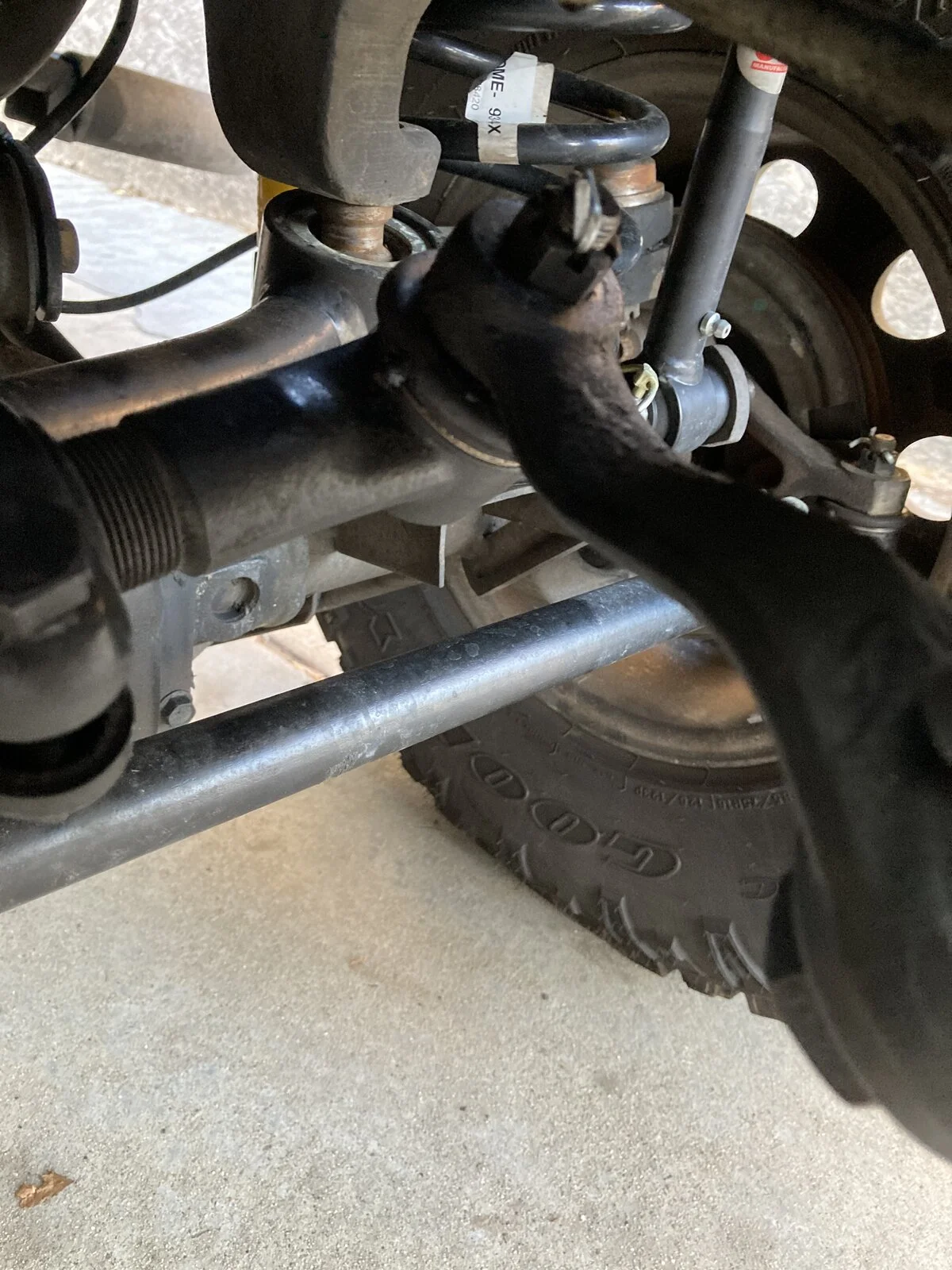

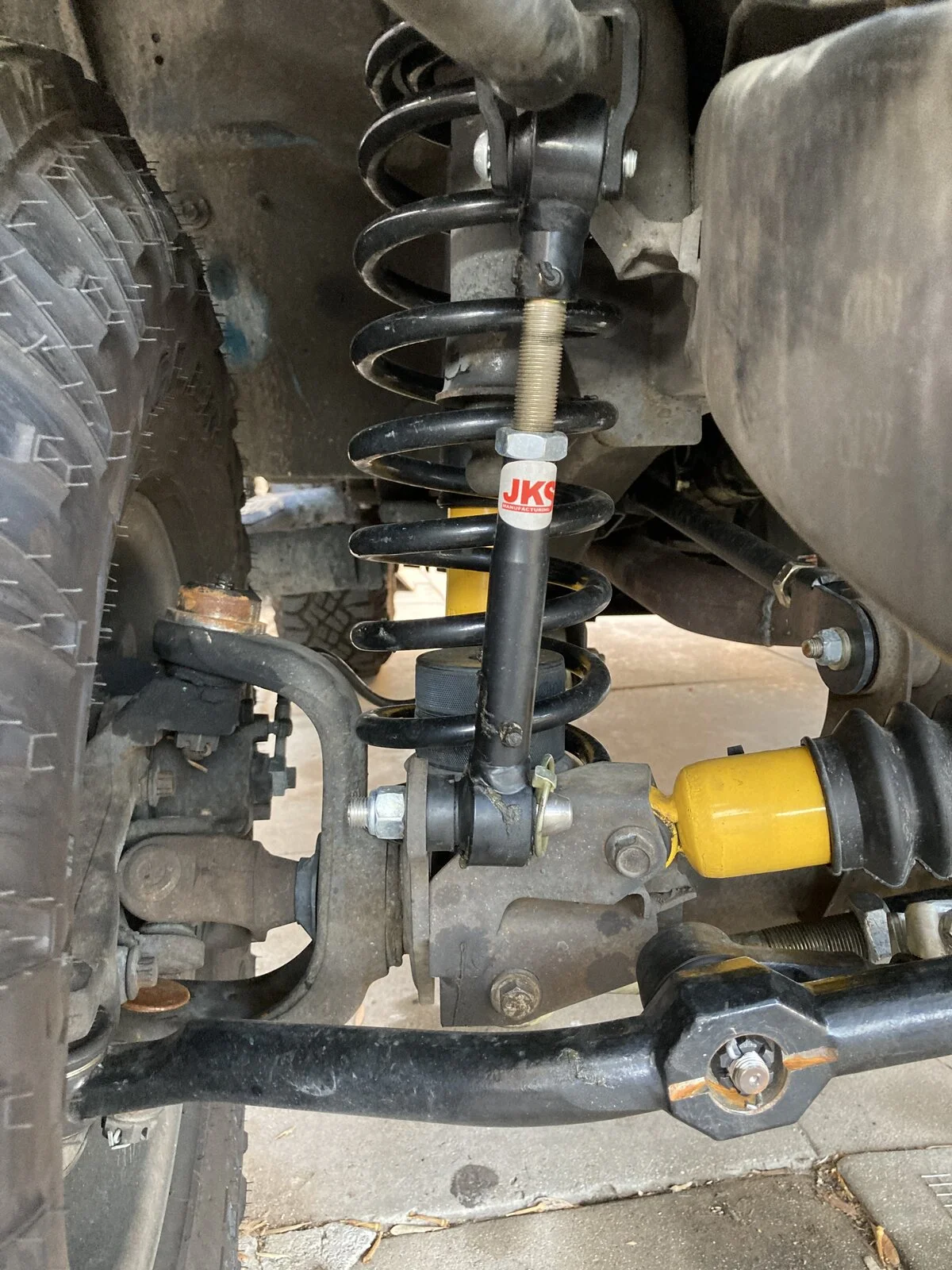

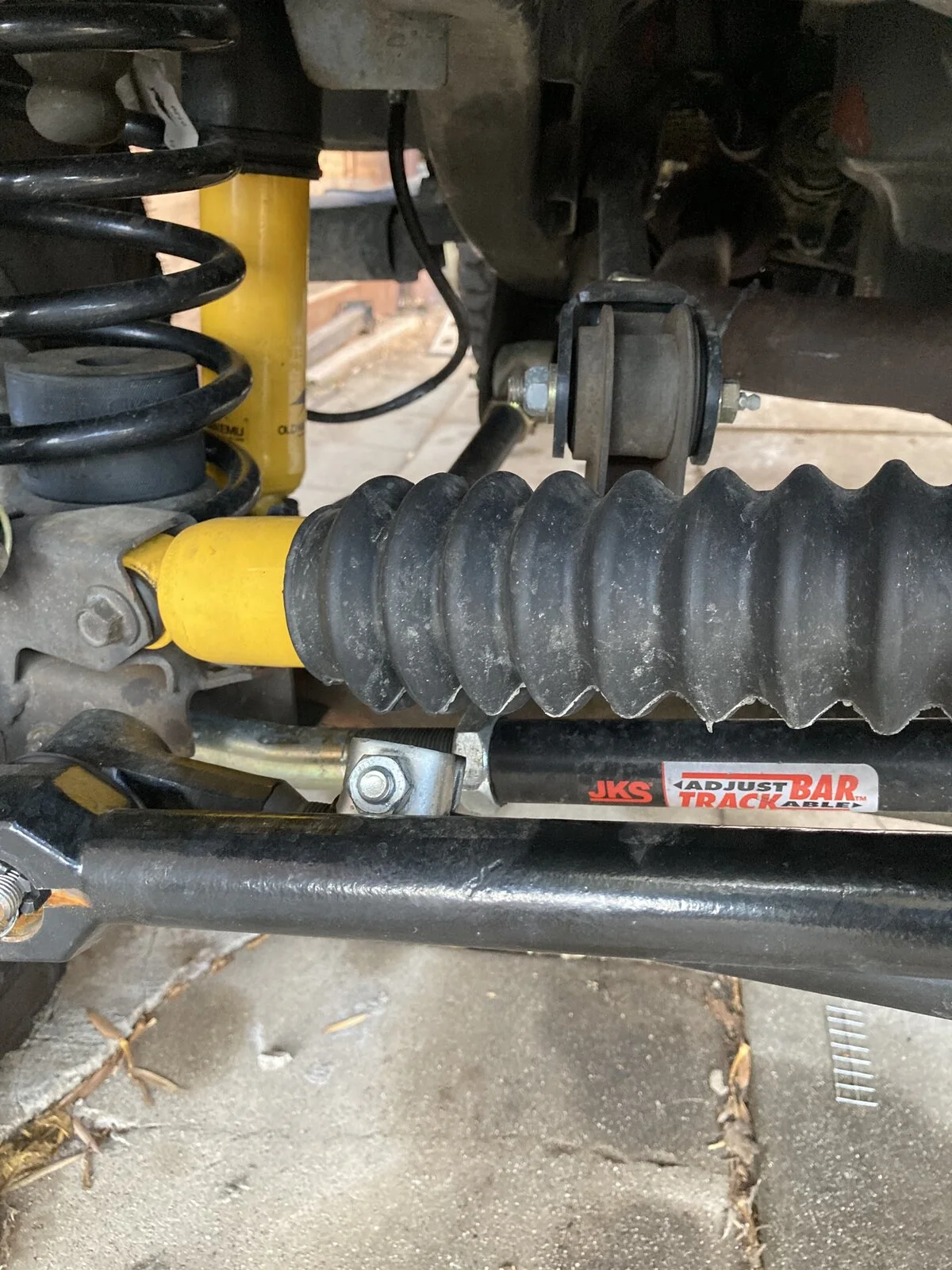

you can see that in the 2nd picture right?
I did the dry steering test myself and definitely felt something moving when I'd jerk it side to side... I'll get my wife to help me out this afternoon though as I did it this morning before work.


CharlesHS

TJ Addict
Supporting Member
Joined
Mar 10, 2020
Messages
2,323
Location
Jacksonville, FL, Quezon Philippines

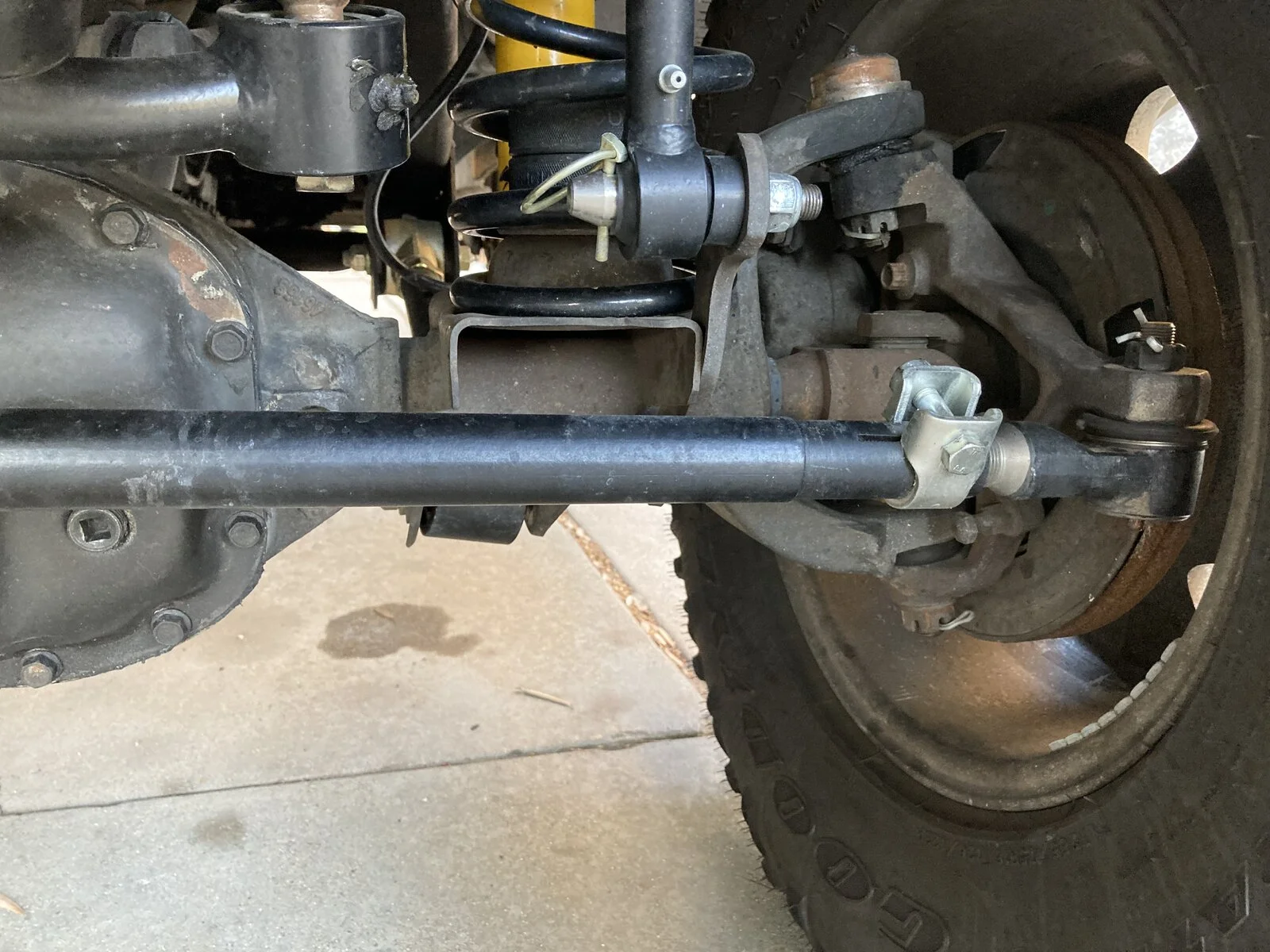

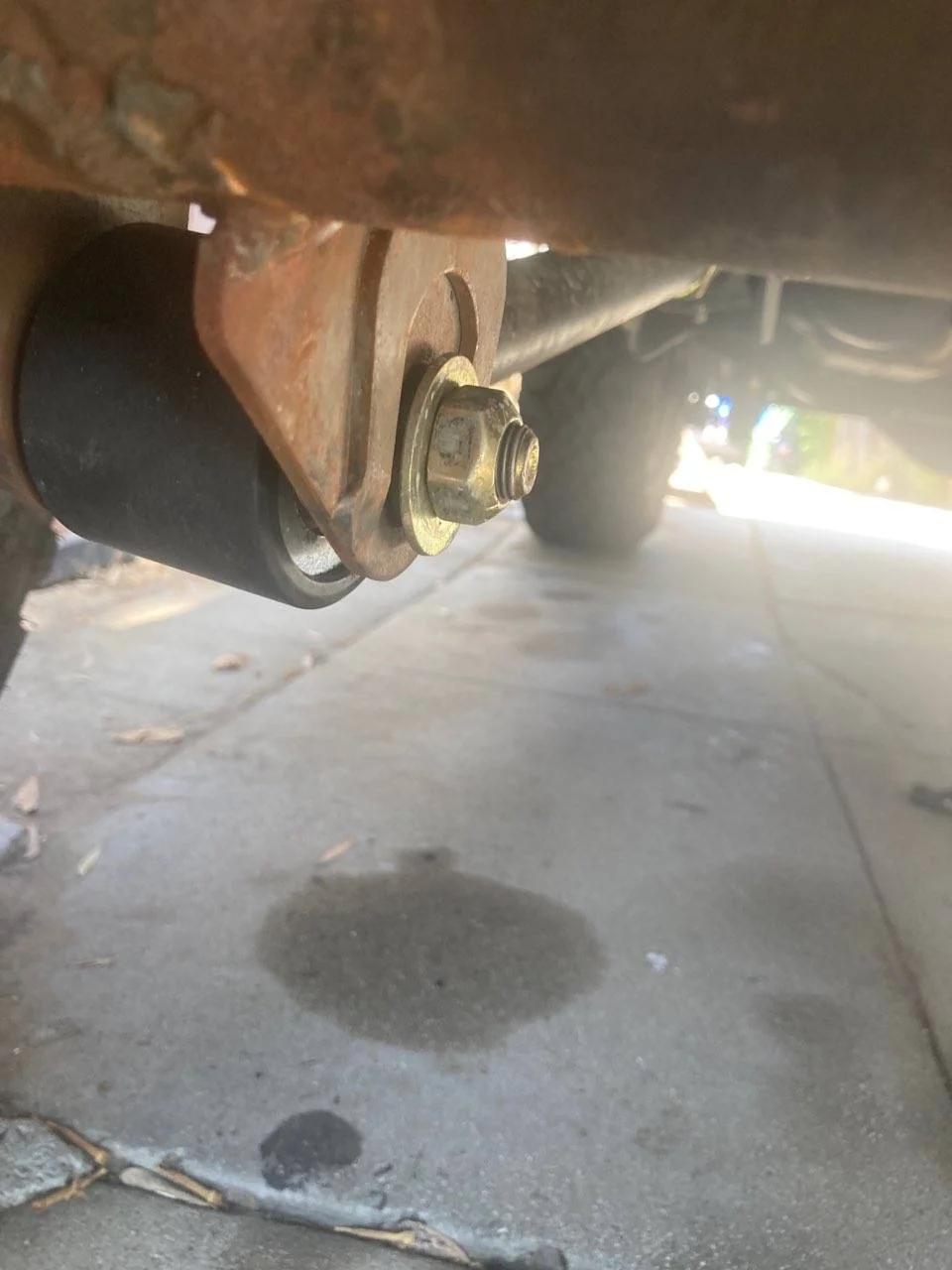

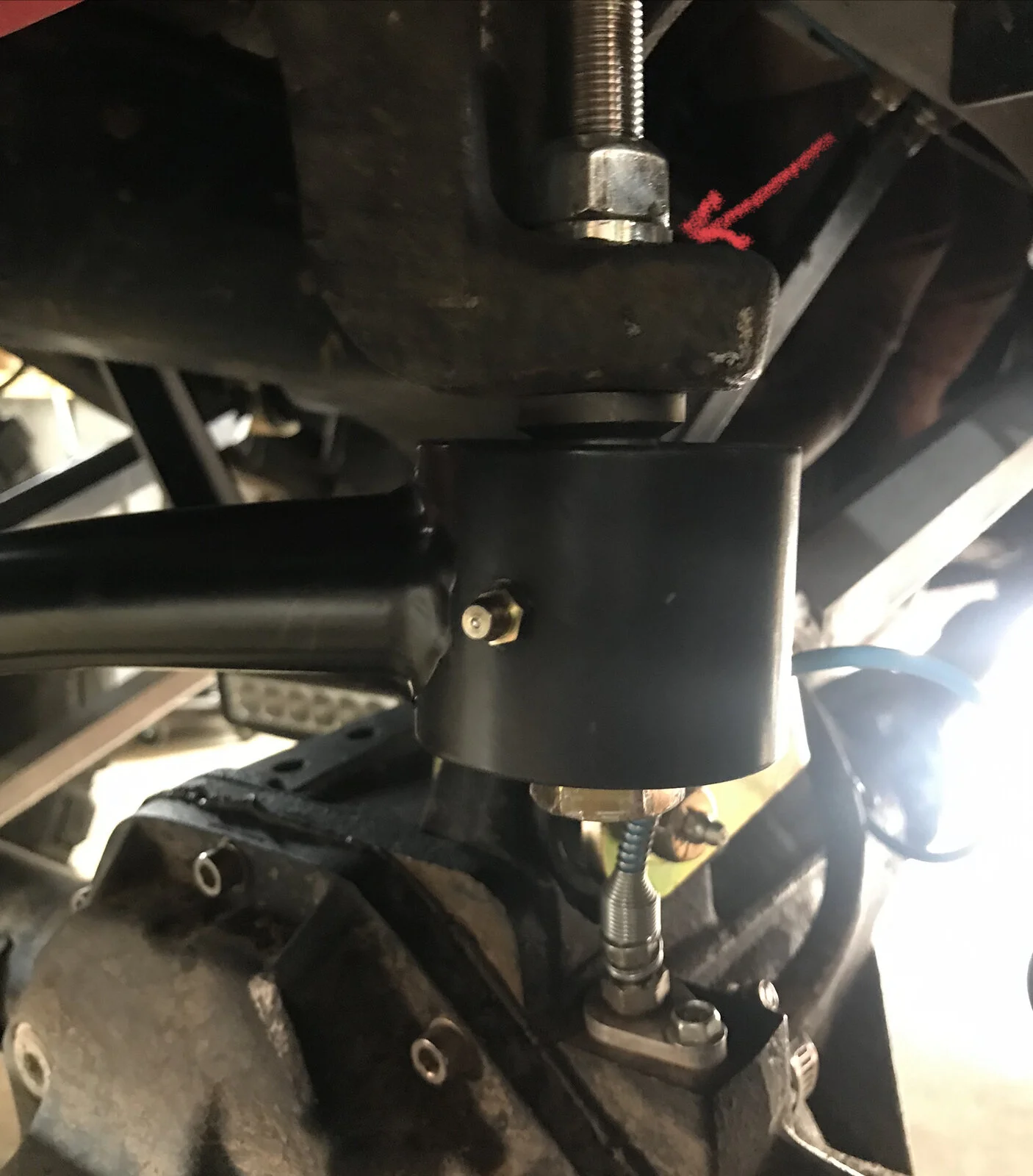

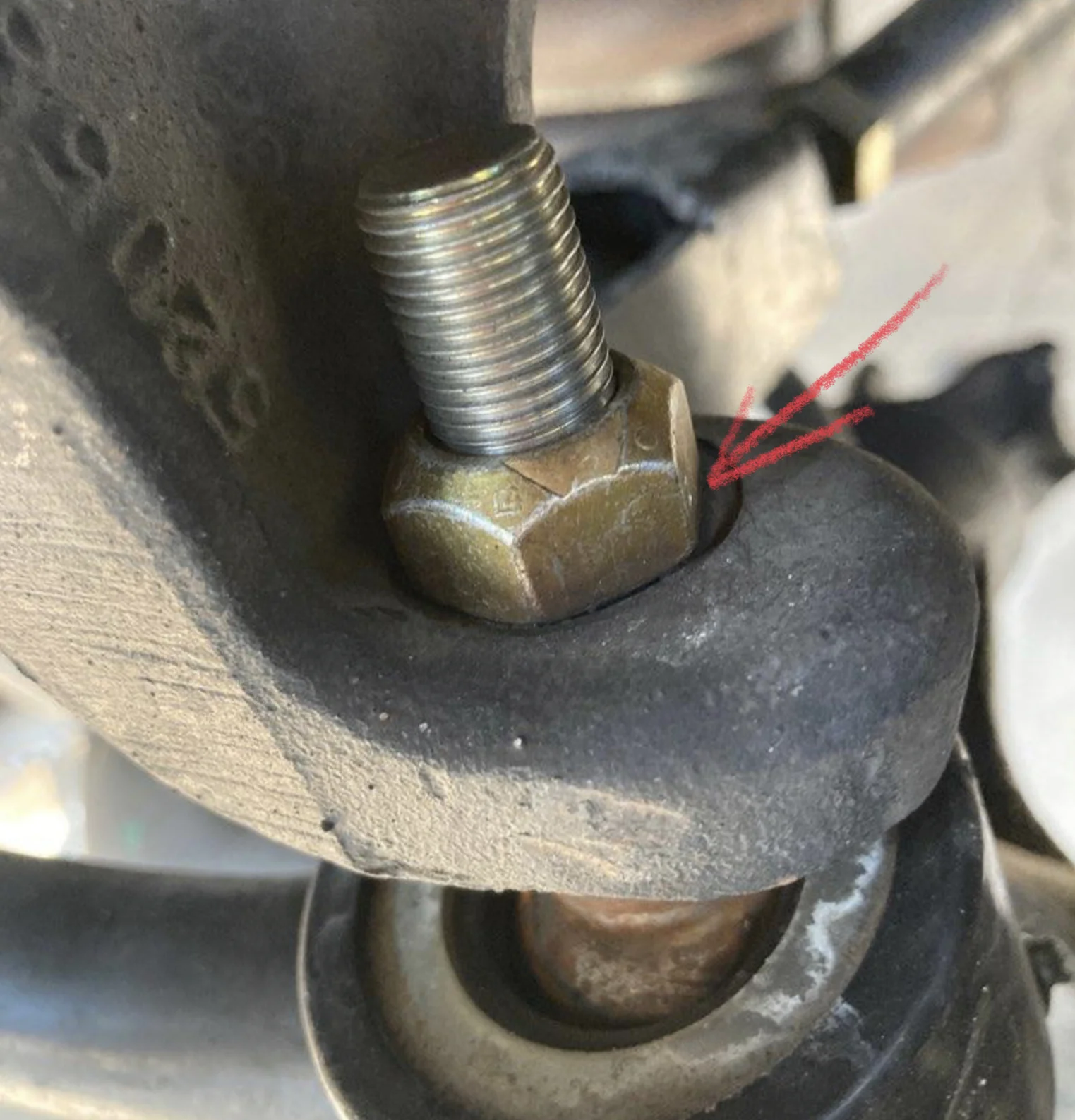

In picture 2 I cant determine if there is a washer under the nut for the frame side trac bar bolt.
This would be one of the reasons why the steering is periodically off center when hitting a bump.

Last edited:

Jason from SoCal

New Member
Joined
Sep 29, 2020
Messages
9
Location
California
I had a similar issue and found that I failed to properly re-torque the front track bar after completing the lift. When the jeep was stationary, I would hear a small cluck when I cycled the steering from left to right. The slight play between the bolt and mounting flange was enough to cause issue.


Artsifrtsi

I just wanna go wheeling...
Supporting Member
Joined
Aug 23, 2020
Messages
547
Location
Huntsville, AL
When I diagnosed the steering in my XJ, I ran the driver's front tire up on a ramp, and did basically the dry test. The entire front end would shift, as opposed to staying with the axle. When my wife moved the wheel with me watching the components, I was able to confirm the TB was bad.


mrblaine

Easter Bunny
Supporting Member
Joined
Nov 20, 2015
Messages
15,528
Location
Quail Valley, CA

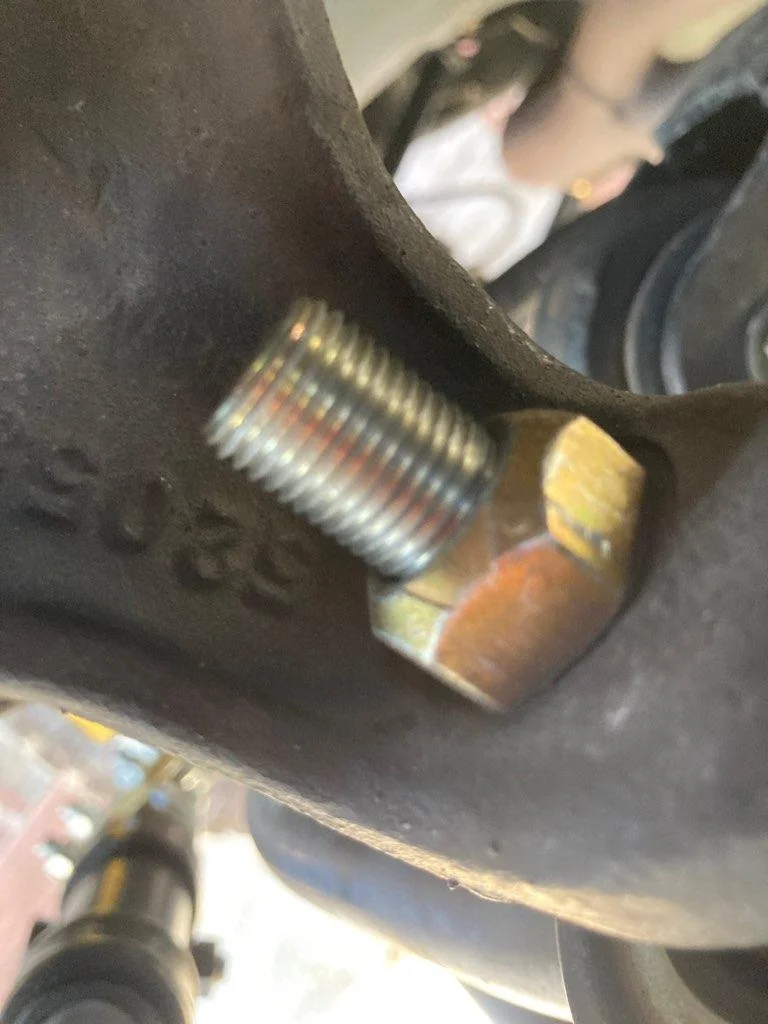

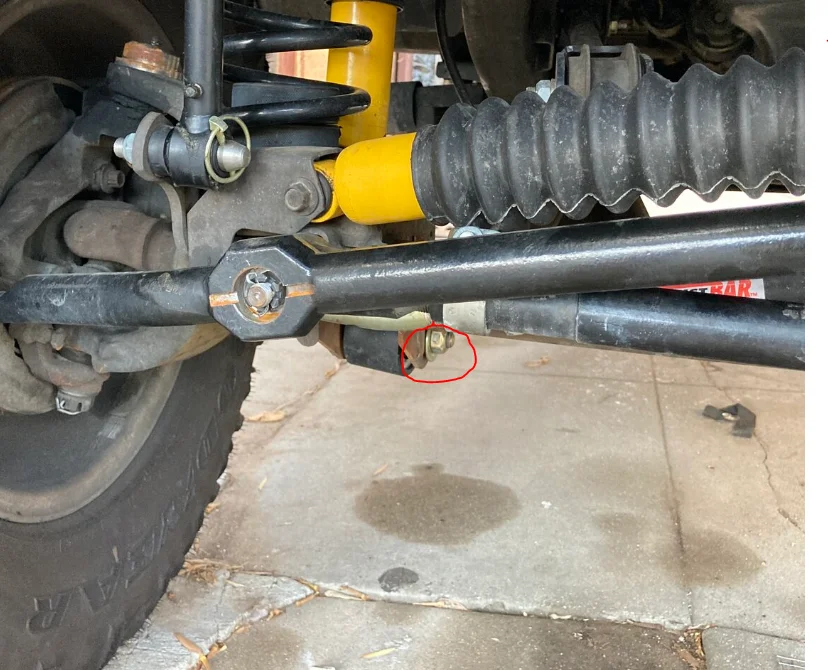

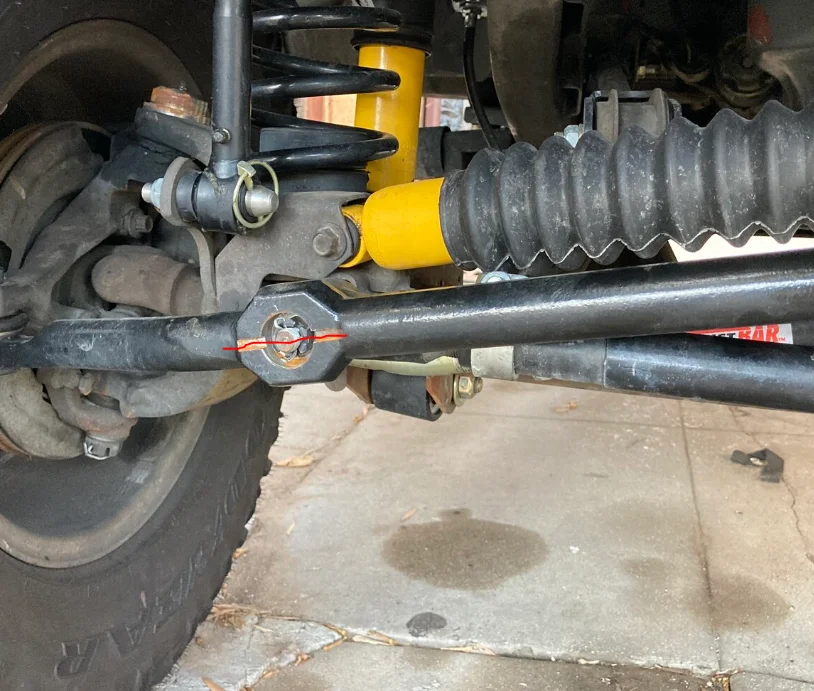

Something doesn't look right at the circled area. Can you get a better picture of that and post it up.


The slot is so you can turn the hole in the tapered pin to line up with it and make insertion of the cotter pin easier.


OP
L

lulzpwndyah

TJ Enthusiast
Joined
Jul 3, 2020
Messages
200
Location
Los Angeles, CA
wow I can't unsee it now. I had my wife take those pics while im at work... she's going to get the trackbar for me in a bit too. well I have homework now when I get home.

OP
L

lulzpwndyah

TJ Enthusiast
Joined
Jul 3, 2020
Messages
200
Location
Los Angeles, CA

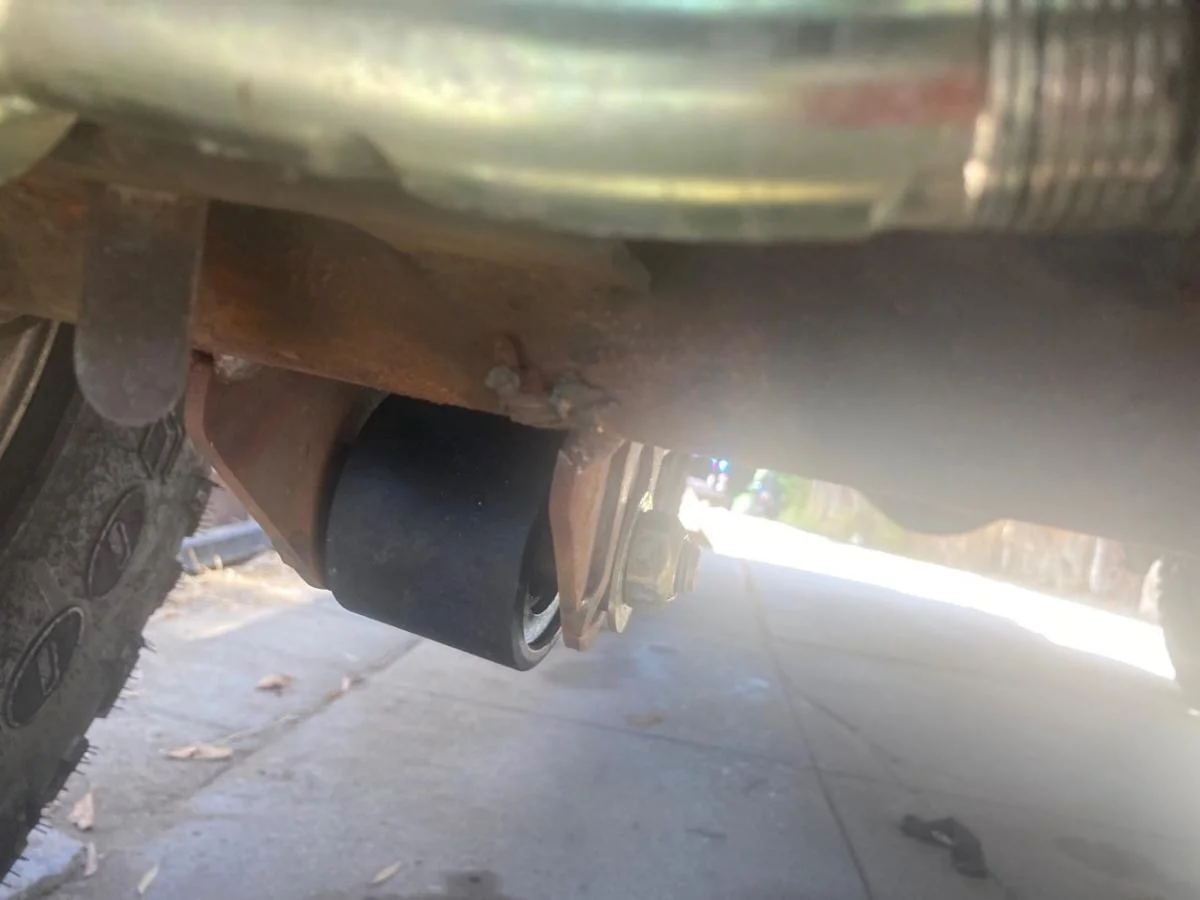

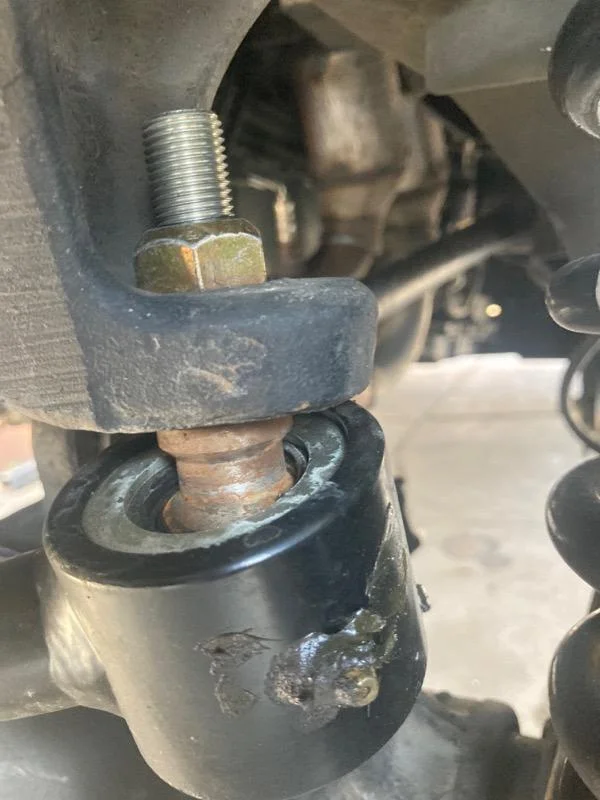

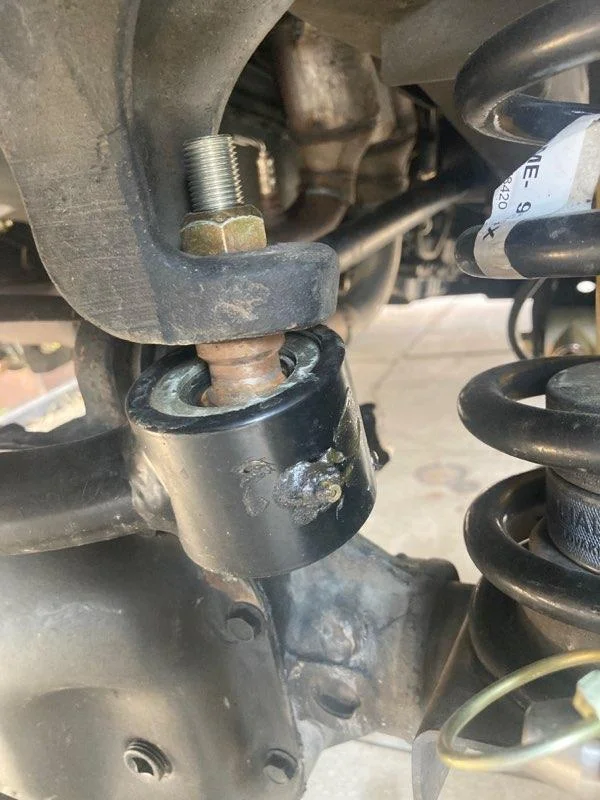

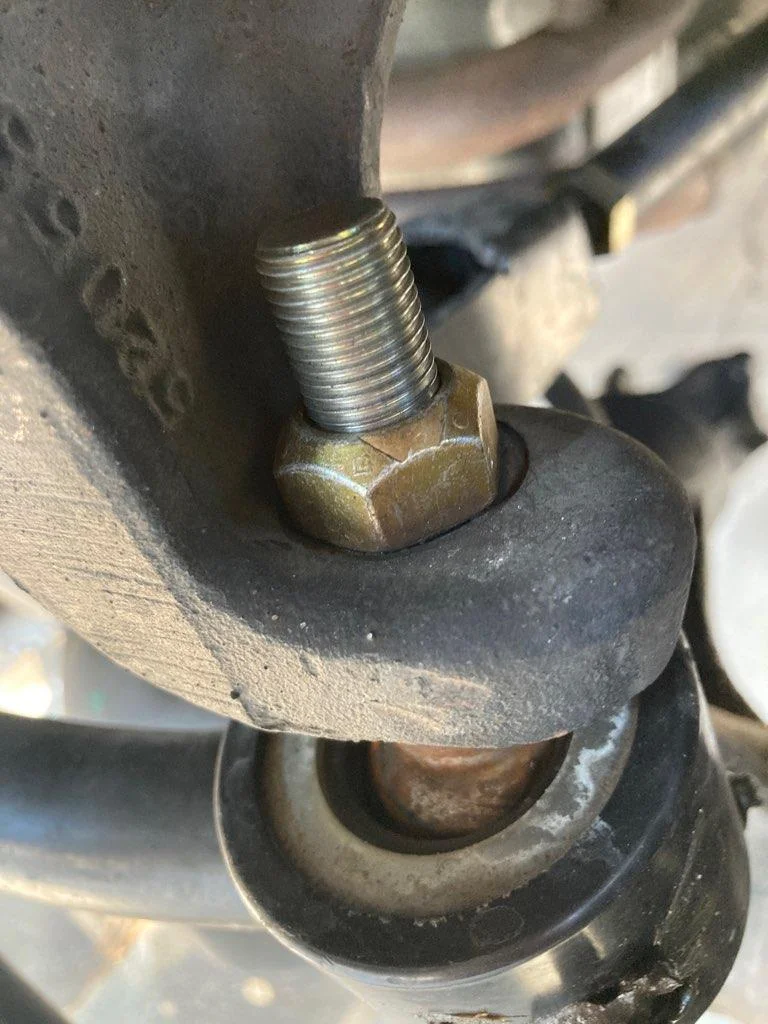

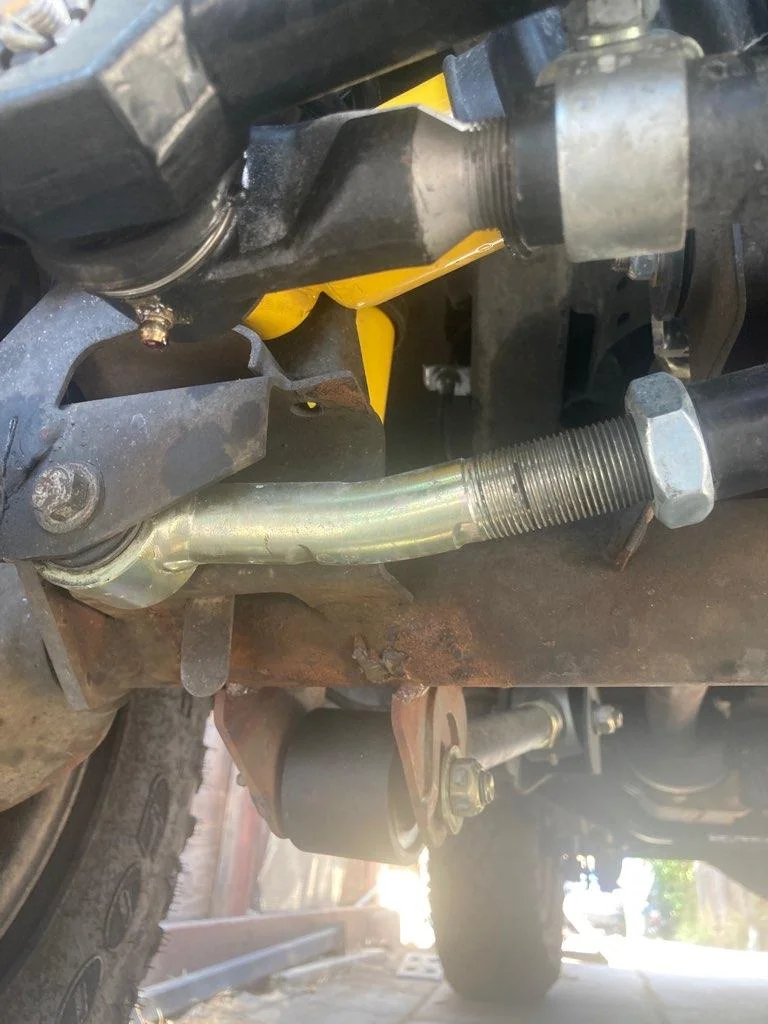

So aside from the control arm not being tightened correctly I’m guessing this here is my other problem. I know it’s a problem. But I don’t know what the actual problem is. Can someone help me out with this part? Is the washer supposed to be on the opposite side or?


Attachments

  • IMG_0489.MOV
    15.9 MB · Views: 49

Lou

TJ Addict
Supporting Member
Joined
Jun 16, 2016
Messages
1,844
Location
Long Beach
That washer looks too large to fit in the recess on the top of the mount where the nut is, but that's definitely your problem. The bolt is loose. I have no experience with JKS to know if they include the special washer currie does.


Steel City 06

TJ Expert
Supporting Member
Joined
Mar 12, 2019
Messages
3,745
Location
Pittsburgh, PA
So aside from the control arm not being tightened correctly I’m guessing this here is my other problem. I know it’s a problem. But I don’t know what the actual problem is. Can someone help me out with this part? Is the washer supposed to be on the opposite side or?
I seem to recall there being a washer for the top side.

Your primary issue is likely that the bolt isn't tightened. I can't remember the torque specification, but it needs a lot of cranking to work properly.


Steel City 06

TJ Expert
Supporting Member
Joined
Mar 12, 2019
Messages
3,745
Location
Pittsburgh, PA

cpwolf

TJ Enthusiast
Supporting Member
Joined
Jun 15, 2020
Messages
611
Location
Cedar Park, TX

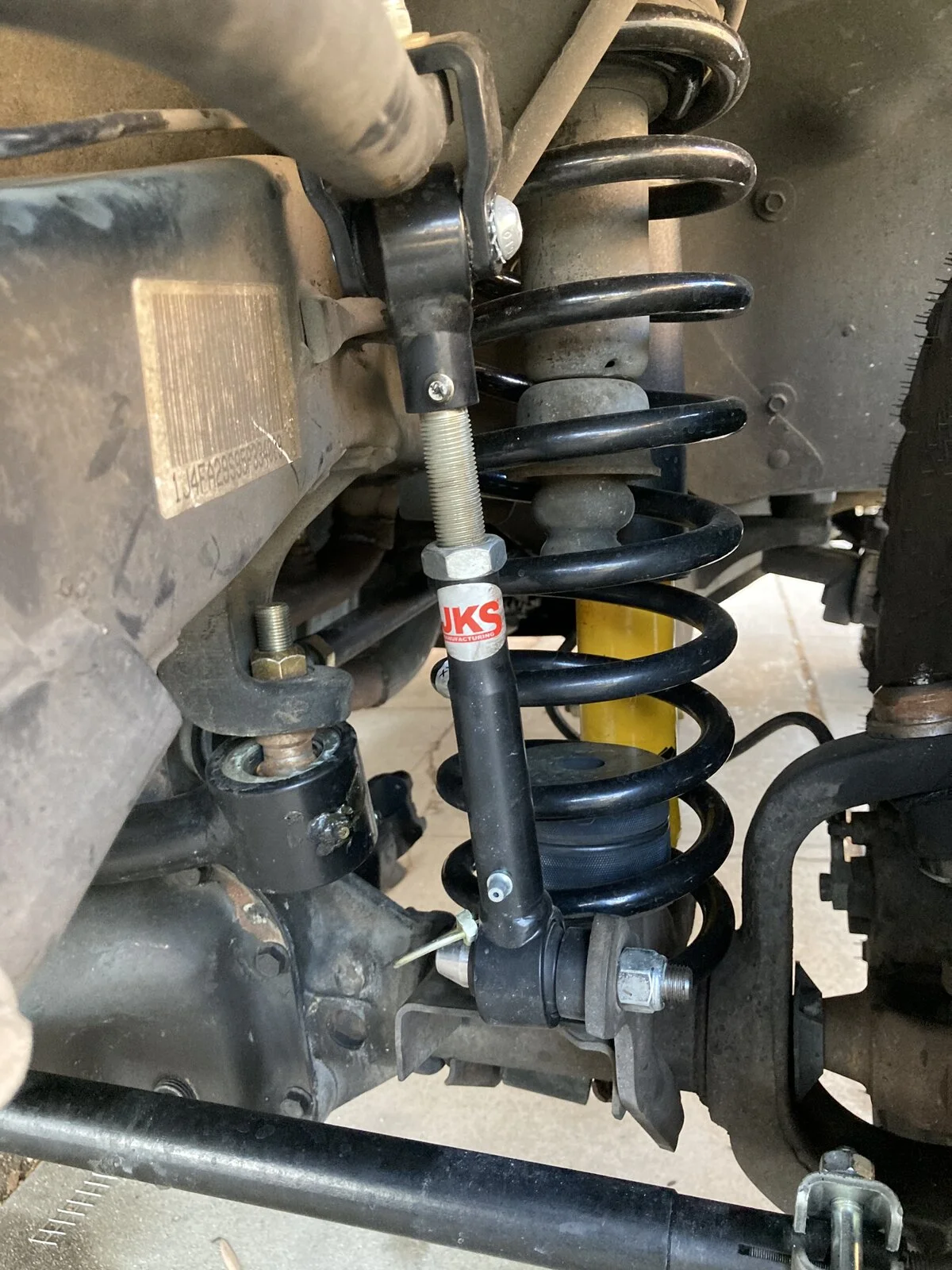

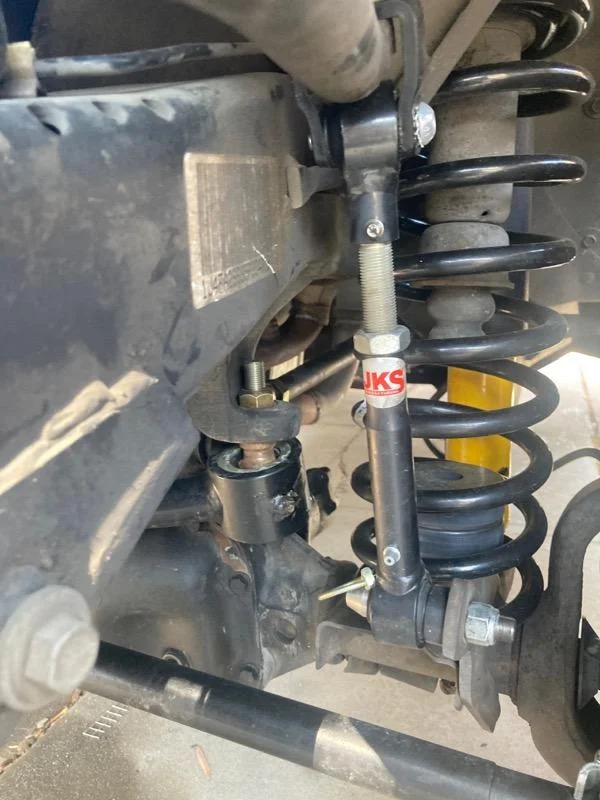

Like Blaine pointed out, the LCA washer isn’t even flush to the bracket. That’s a slot, not a round hole, without a washer that will hold it centered, and what looks loose, that doesn’t look good.

The Track bar isn’t tight obviously, but I’m curious, the JJ On that track bar looks looser than of the JJs anywhere on my TJ. If it’s been loose, and slamming around more than just normal wear, maybe it’s worn that JJ out.

I’m not a pro on that, but I’d consider a JJ rebuild in my future. Tighten it may work, but still.


AndyG

TJ Guru
Lifetime Supporting Member
Joined
Jul 30, 2018
Messages
8,607
Location
Alabama
Like Blaine pointed out, the LCA washer isn’t even flush to the bracket. That’s a slot, not a round hole, without a washer that will hold it centered, and what looks loose, that doesn’t look good.

The Track bar isn’t tight obviously, but I’m curious, the JJ On that track bar looks looser than of the JJs anywhere on my TJ. If it’s been loose, and slamming around more than just normal wear, maybe it’s worn that JJ out.

I’m not a pro on that, but I’d consider a JJ rebuild in my future. Tighten it may work, but still.
I agree, I see a number of things that need checked ..you can almost see the elongation of the axle end track bar bolt as well by looking at the edge of the bolt.. or that may be my eyes. The top of the frame end track bar Johnny joint seems starved for lubrication which means wear, control arm washer is on top of the cam horseshoe so your caster is going to be weird possibly..and Blaine made me realize control arm bushings can mess with steering.

On the plus side , everything you have under there is good, heavy equipment....needs serviced, torqued and tightened the realigned in my estimation.

I'd look into a heavier bushing for that axle end if the track bar myself, if I want replacing it.

There's been a lot of money spent on that TJ front end, don't let up til it drives good. Be sure to check that ES3096L at the pitman arm.


DrDmoney

WRKP406
Supporting Member
Joined
Jan 29, 2019
Messages
4,200
Location
The “530”
You could use a washer under the track bar nut, preferably a thick one that fits in the recess on the topside of the bracket plus the joint looks bone dry despite the grease on the zerk.



  • Like
Reactions: CharlesHS

mrblaine

Easter Bunny
Supporting Member
Joined
Nov 20, 2015
Messages
15,528
Location
Quail Valley, CA
That washer looks too large to fit in the recess on the top of the mount where the nut is, but that's definitely your problem. The bolt is loose. I have no experience with JKS to know if they include the special washer currie does.
I don't see a washer at the topside of the trackbar bolt on the frame side. I also can't tell if it is or isn't tight. He needs to check that with a steering test.

  • Like
Reactions: CharlesHS
