Opinion on rear diff pattern

hosejockey61

TJ Addict
Supporting Member
Ride of the Month Winner
Joined
Apr 9, 2020
Messages
1,516
Location
Parker, CO
Do you have the crush sleeve in? If you do, take it out for setup. Pinion preload isn't critical during setup. Just tighten the nut until you have some resistance. Don't overtighten though.

  • Like
Reactions: SvtLdr
OP
Jeepster78

Jeepster78

Member
Joined
Aug 8, 2021
Messages
75
Location
Albuquerque, NM

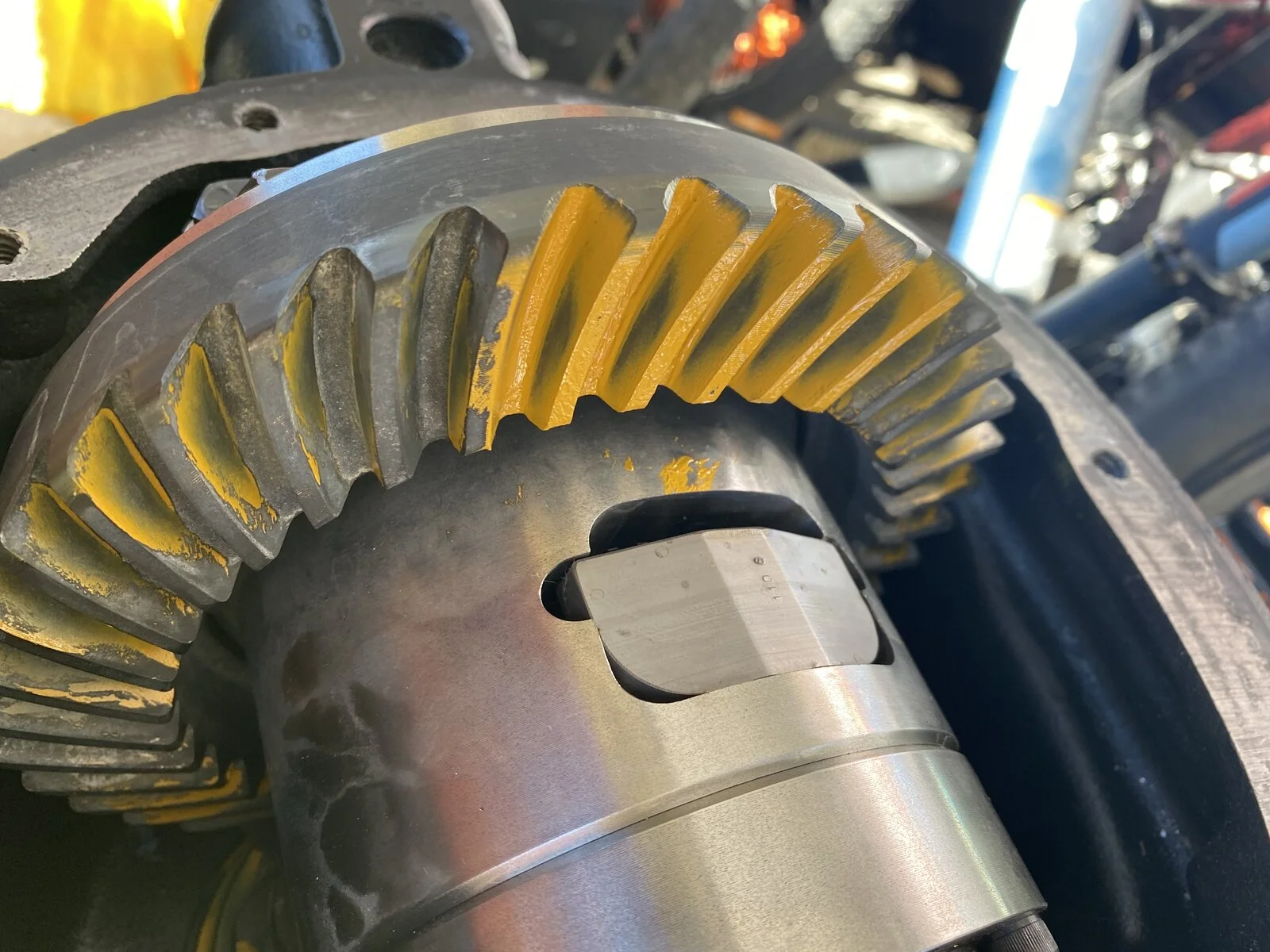

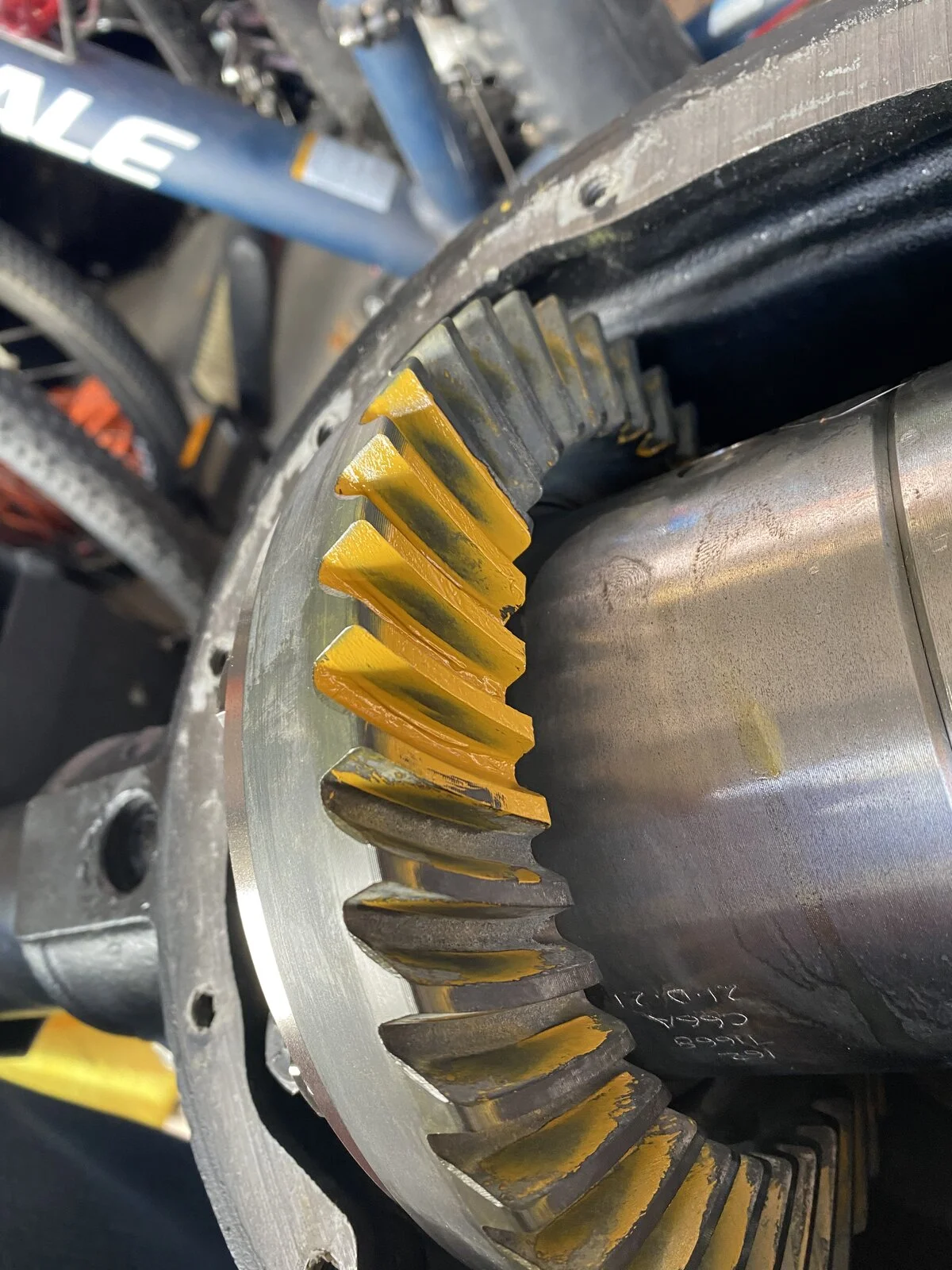

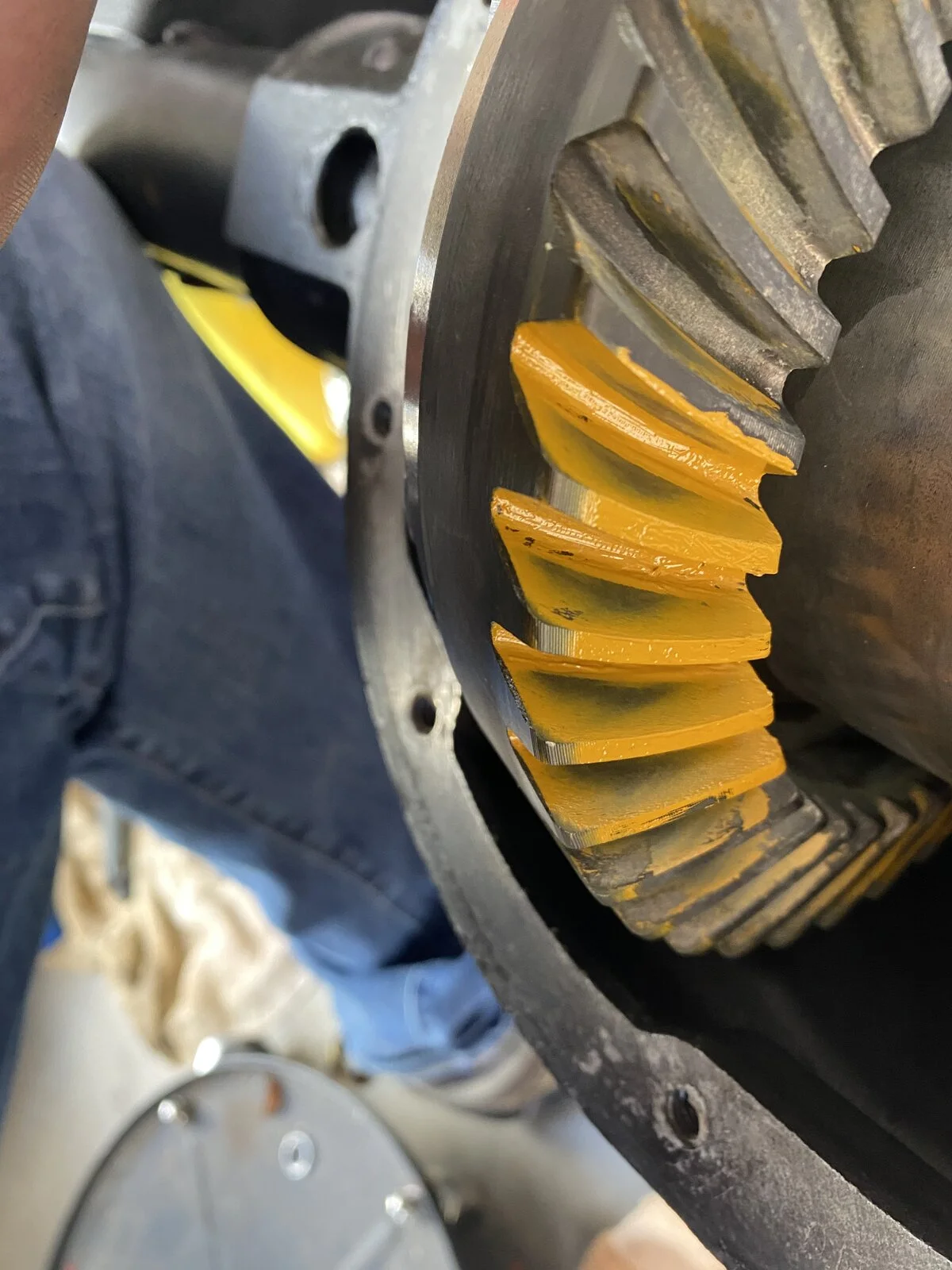

Ok check backlash at 4 different spots 6 thou at 3 points and 7 at the fourth preload at around 18 in lbs and here is the pattern.






OP
Jeepster78

Jeepster78

Member
Joined
Aug 8, 2021
Messages
75
Location
Albuquerque, NM
Looks like the drive side is too much towards the toe and the coast side is too much to the heel and still a bit too deep which means I need to move ring away from pinion correct?


hosejockey61

TJ Addict
Supporting Member
Ride of the Month Winner
Joined
Apr 9, 2020
Messages
1,516
Location
Parker, CO
Looks like the drive side is too much towards the toe and the coast side is too much to the heel and still a bit too deep which means I need to move ring away from pinion correct?
Still too deep. Do you have the crush sleeve in there? If so, take it out until final setup. Help us help you.

  • Like
Reactions: SvtLdr

someguysjeep

simple guy
Lifetime Supporting Member
Joined
Nov 17, 2019
Messages
4,806
Location
ohio
still got the old pinion bearing cup? could trim that diameter down a hair for a slip fit and see if that gives a different result. maybe you got an out of spec race?
could throw the calipers to um but it's really how deep the cones rest into it that determines depth.


hosejockey61

TJ Addict
Supporting Member
Ride of the Month Winner
Joined
Apr 9, 2020
Messages
1,516
Location
Parker, CO
Something isn't right. I'm on the bet you have some sort of shim between the pinion head and the pinion bearing. Did you put anything there or are you reusing the original gears?


hosejockey61

TJ Addict
Supporting Member
Ride of the Month Winner
Joined
Apr 9, 2020
Messages
1,516
Location
Parker, CO
My guess is one of two things. Either you have a shim under the pinion bearing or you aren't seating the race all the way. When you hammer that thing in you should hear/feel a ping when it's seated.

Another thought is thick gears on a carrier that doesn't need it.

  • Like
Reactions: someguysjeep
OP
Jeepster78

Jeepster78

Member
Joined
Aug 8, 2021
Messages
75
Location
Albuquerque, NM
I just talked with my buddy who pressed on the pinion bearing for me and he said he pressed on shims between the pinion and bearing. From what I’ve read the shims should be between the race and axle housing is that correct and no shims on the pinion?


hosejockey61

TJ Addict
Supporting Member
Ride of the Month Winner
Joined
Apr 9, 2020
Messages
1,516
Location
Parker, CO
They can go in either configuration. If you are going to put then behind the race, make a setup race until you get your final pattern.

  • Like
Reactions: someguysjeep

SvtLdr

Search Engine Certified Mechanic
Supporting Member
Ride of the Month Winner
Joined
Nov 26, 2019
Messages
1,767
Location
NE Indiana
I just talked with my buddy who pressed on the pinion bearing for me and he said he pressed on shims between the pinion and bearing. From what I’ve read the shims should be between the race and axle housing is that correct and no shims on the pinion?
Correct. That's why you make a setup race to slip in and out of the housing when changing shims. After you get the proper pinion depth, you press the new race (much tighter fit) in on top of the shims.

  • Like
Reactions: williambmac
