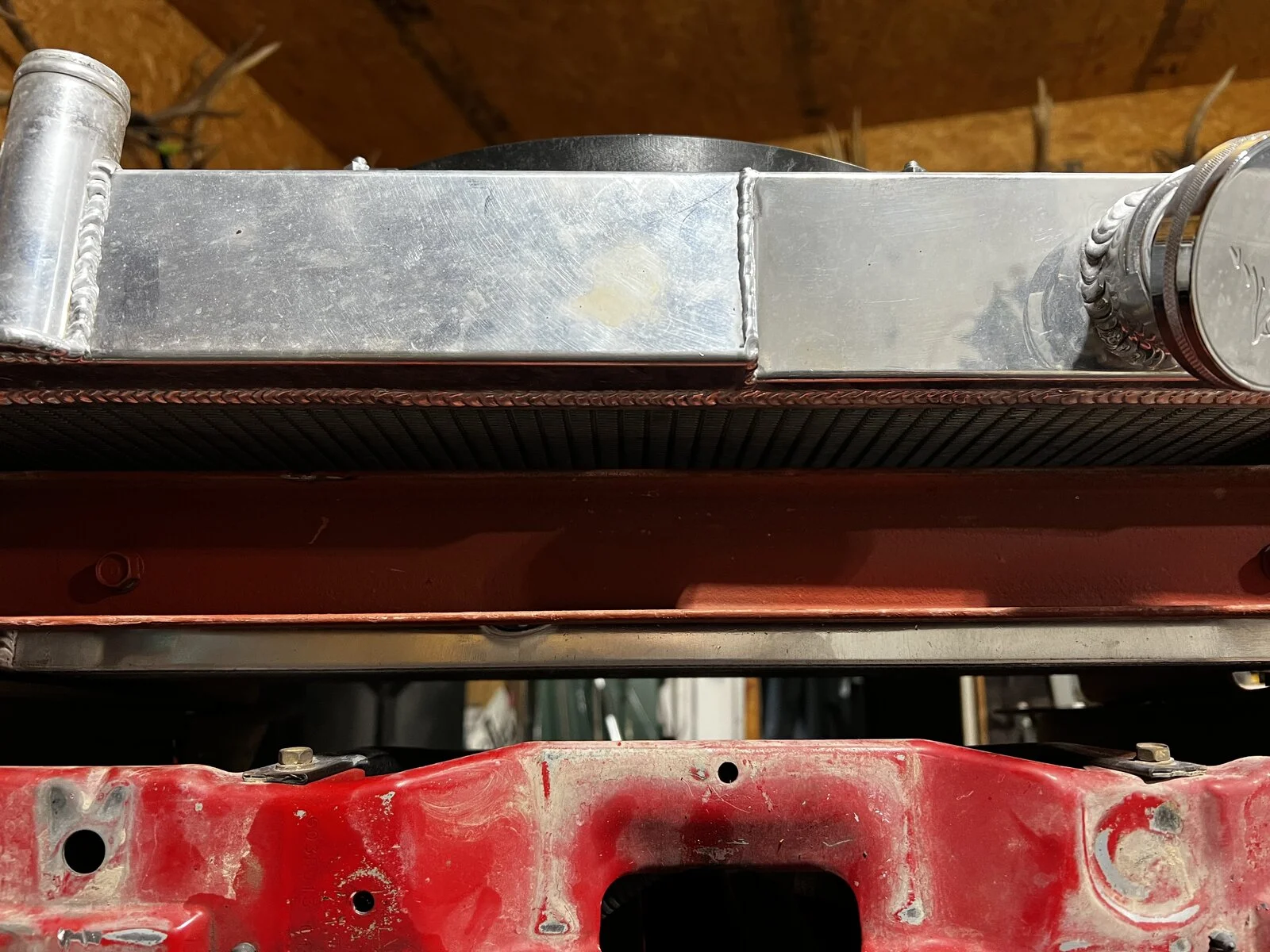

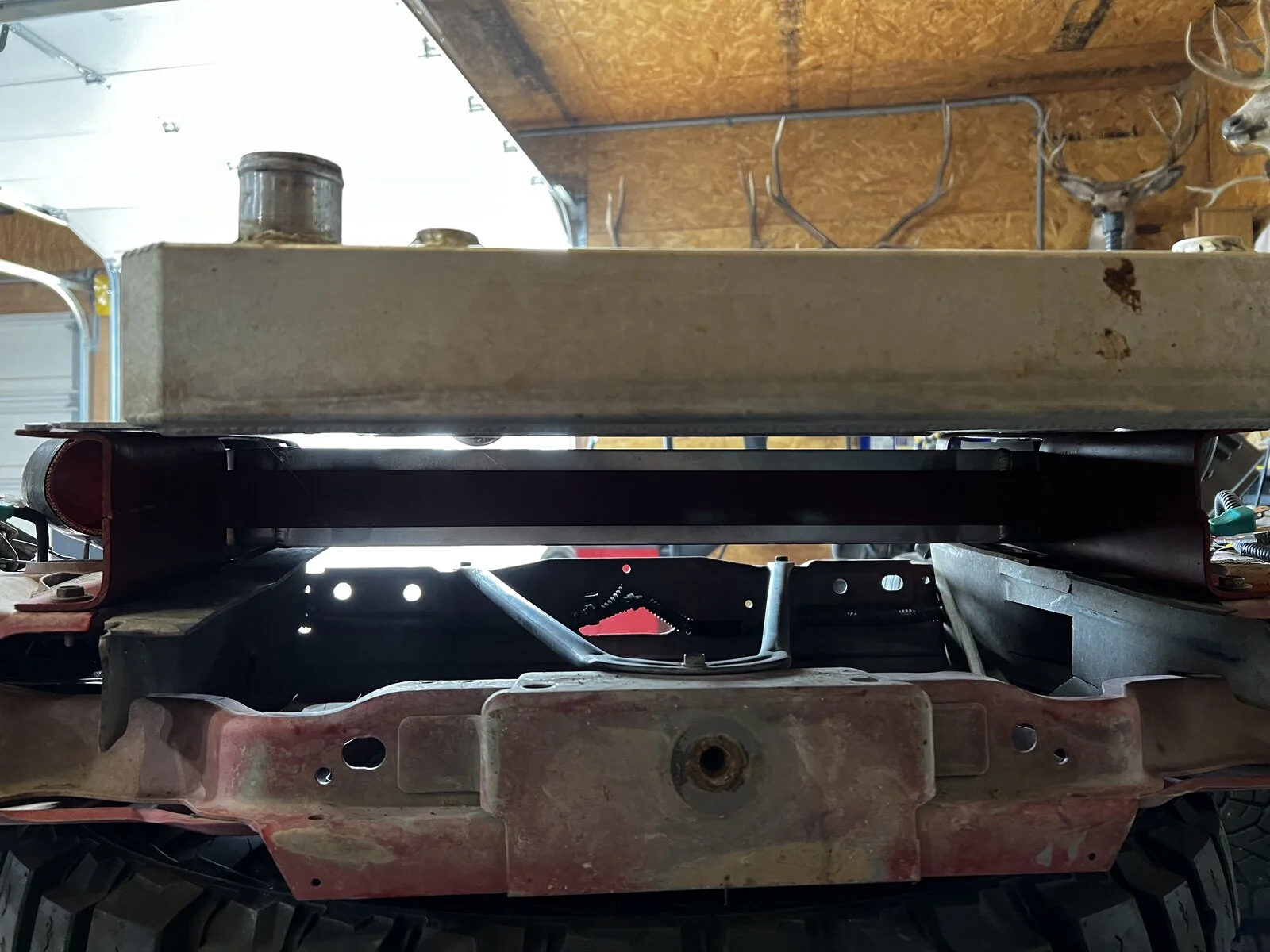

I spent my shop time today modifying my radiator support to house my intercooler. Maybe the grill goes in tomorrow, but I am on borrowed time because my daughter is due with my first grandchild, so at any minute the project goes on hold





rasband

Tranny Swap Club
Supporting Member
Ride of the Month Winner
Joined
Sep 11, 2018
Messages
7,689
Location
Highlands Ranch, CO
I spent my shop time today modifying my radiator support to house my intercooler. Maybe the grill goes in tomorrow, but I am on borrowed time because my daughter is due with my first grandchild, so at any minute the project goes on hold

View attachment 335165

View attachment 335167

You should just mount the intercooler to the front bumper! 😂😂

Congrats on the impending grand baby!

OP
nuffsaid

nuffsaid

Member
Supporting Member
Joined
May 10, 2020
Messages
80
Location
Wyoming

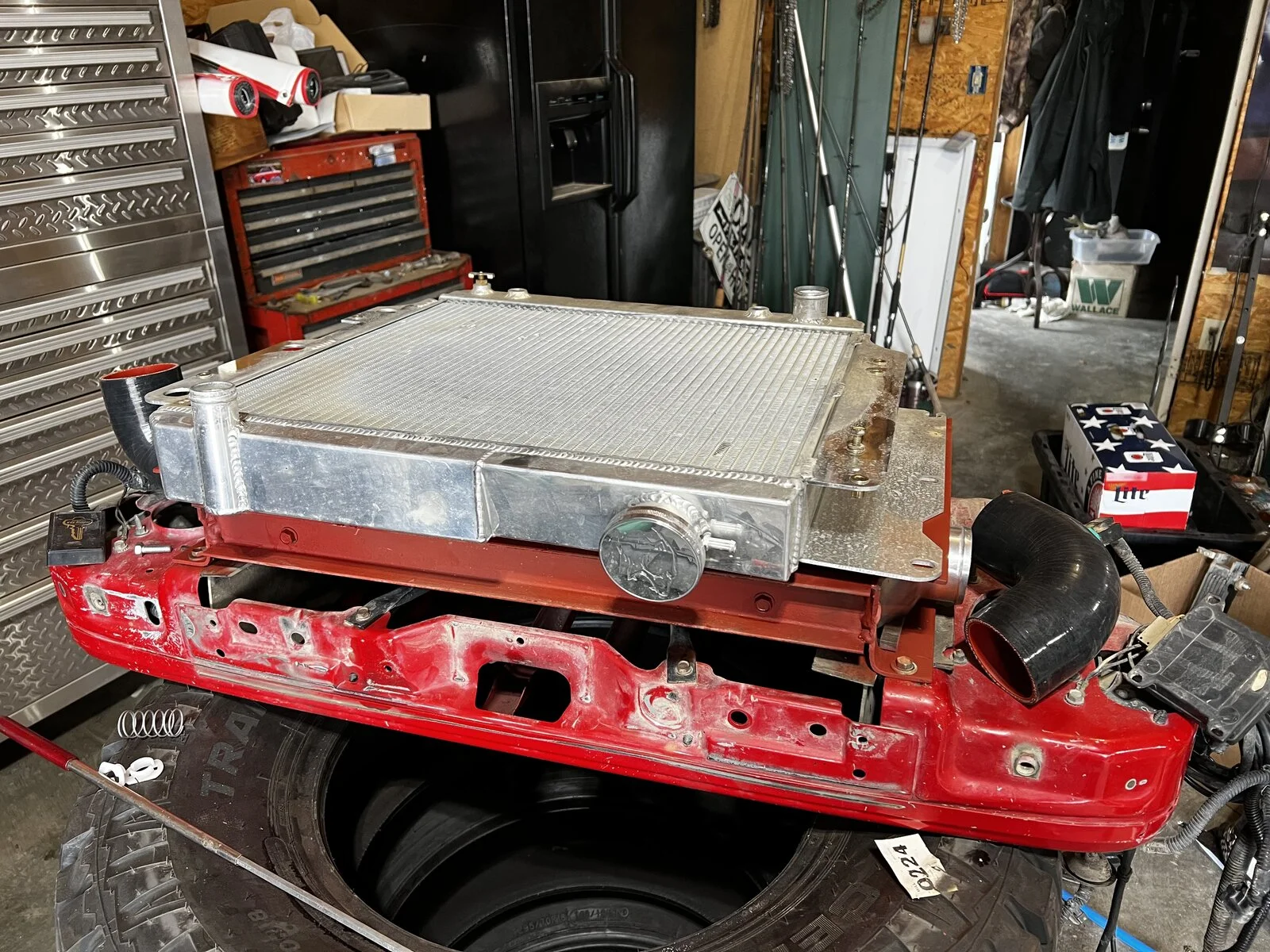

Grill assembly finished, intercooler is kind of permanent, welded straps top and bottom, I would need to cut the welds to get it out, but at least it shouldn’t fall out on the trail




  • Like
Reactions: Wildman
OP
nuffsaid

nuffsaid

Member
Supporting Member
Joined
May 10, 2020
Messages
80
Location
Wyoming

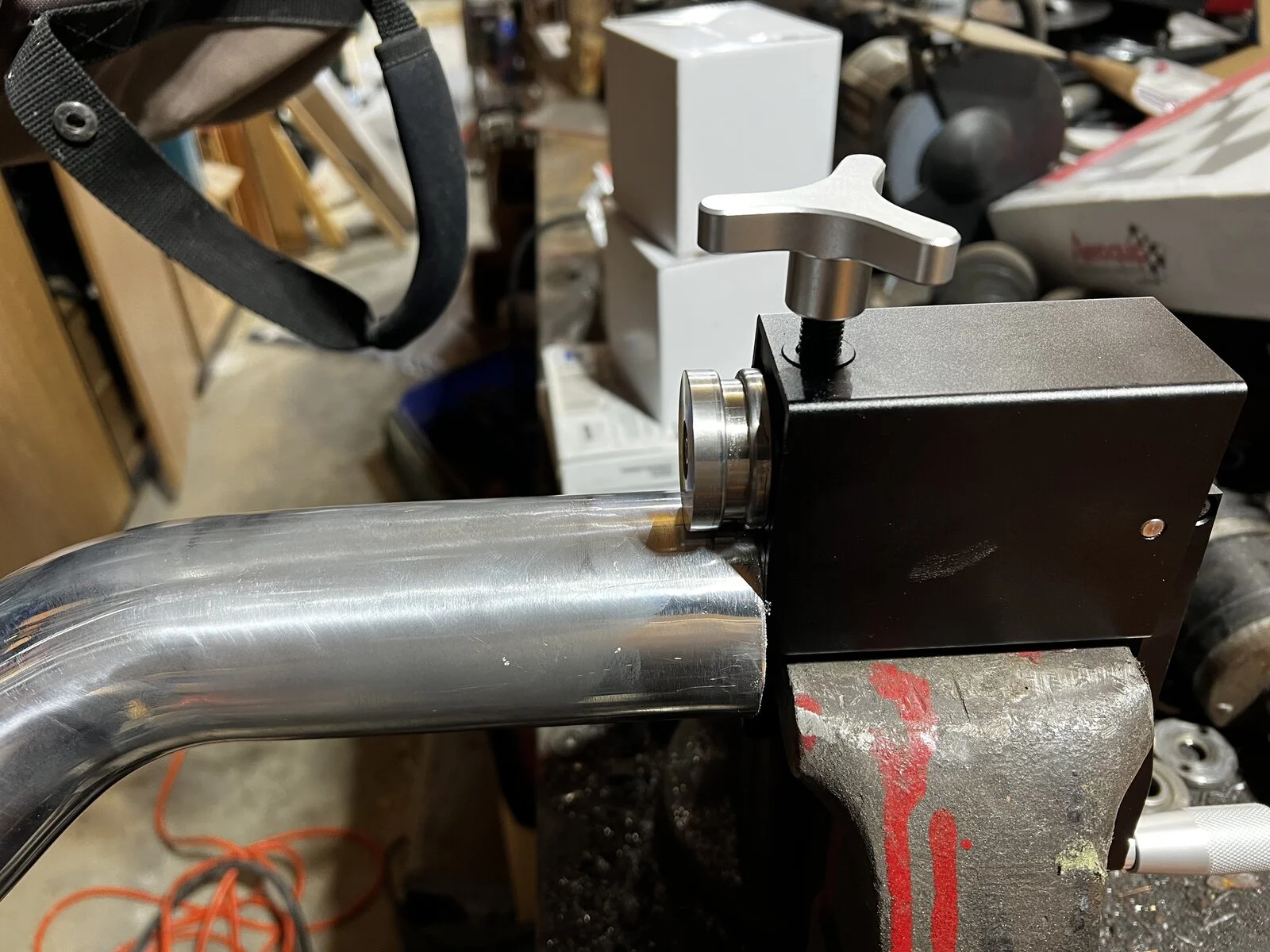

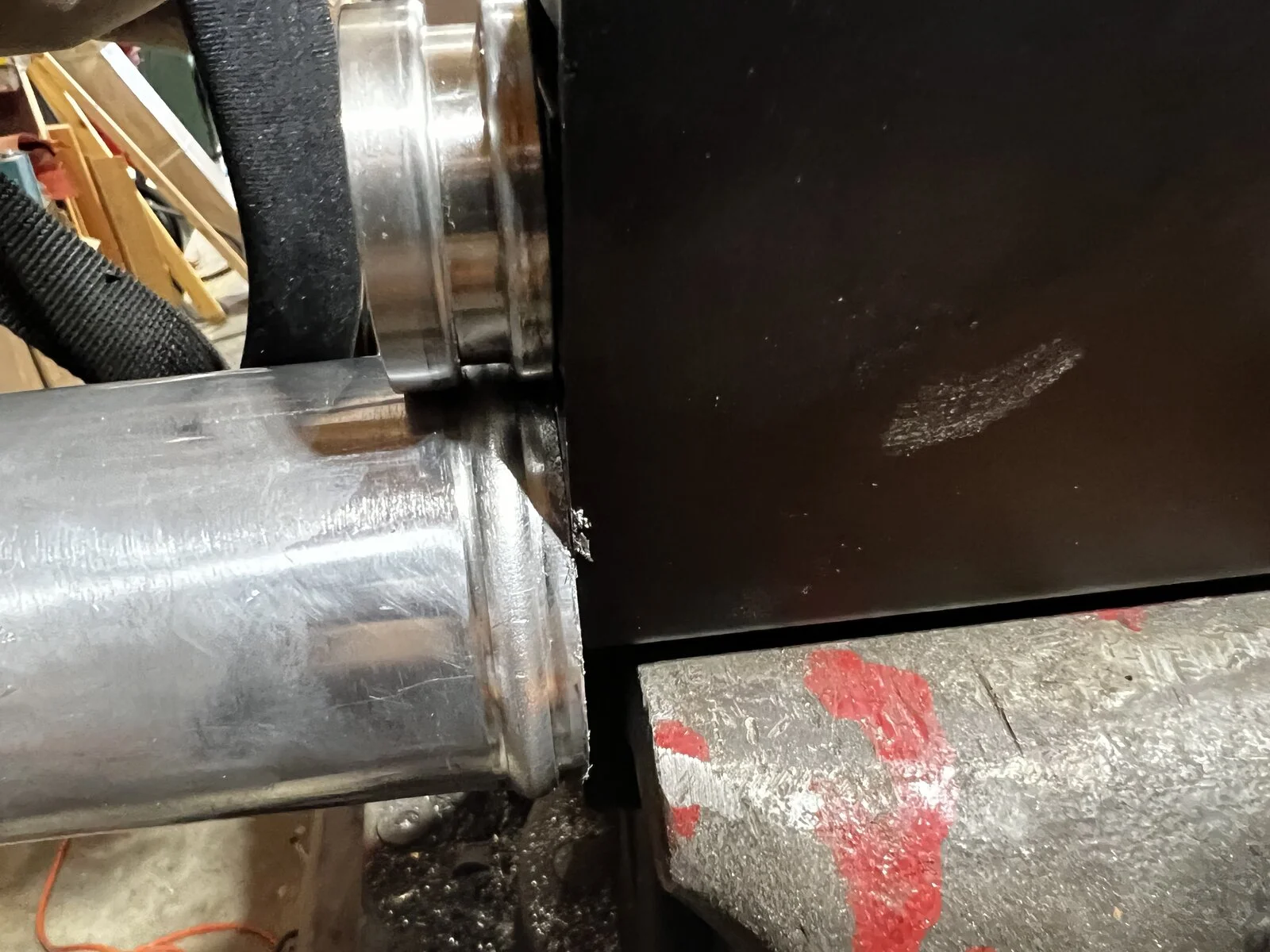

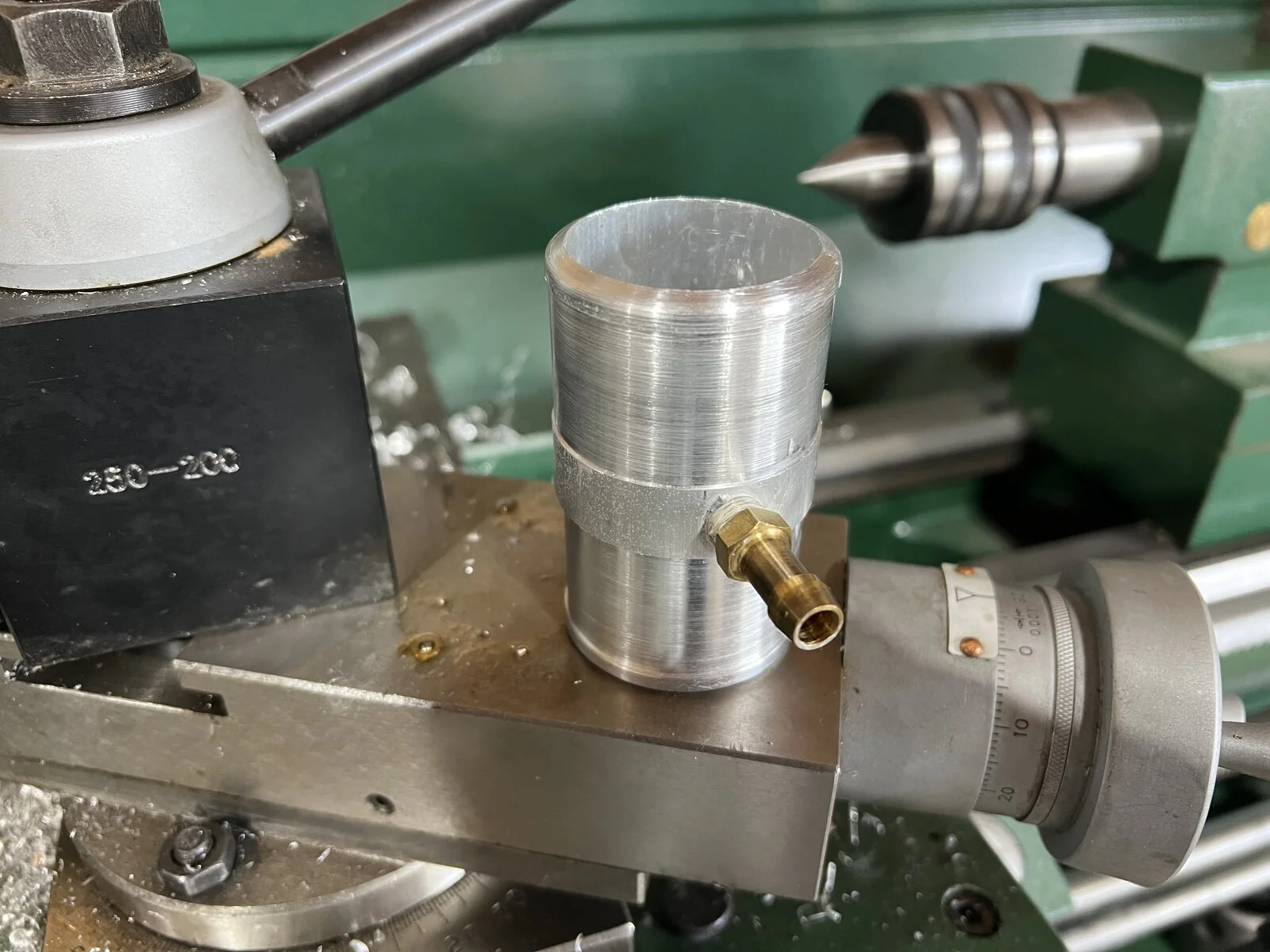

I got to try out a new tool today rolling beads on the intercooler tubing, worked great, but I found that I can't roll a bead on a tube that has been cut where a bend is. Unfortunately I no longer have access to a TIG welder since I just retired and I hate to buy one just for this project, but it could happen. I had to put a bit of a flex in the 90 degree fittings that come and go to the intercooler, but I think they will be ok. Next, I am fabbing up some radiator hoses, and I think I am able to modify the stock upper hose to work. For the lower hose I am taking two different hoses and cutting the ends off and then machining a piece of two inch aluminum tubing to join them together and in the center of the tube I will make a port for a air breather to route to the de-air box.

  • Like
Reactions: Wildman
OP
nuffsaid

nuffsaid

Member
Supporting Member
Joined
May 10, 2020
Messages
80
Location
Wyoming

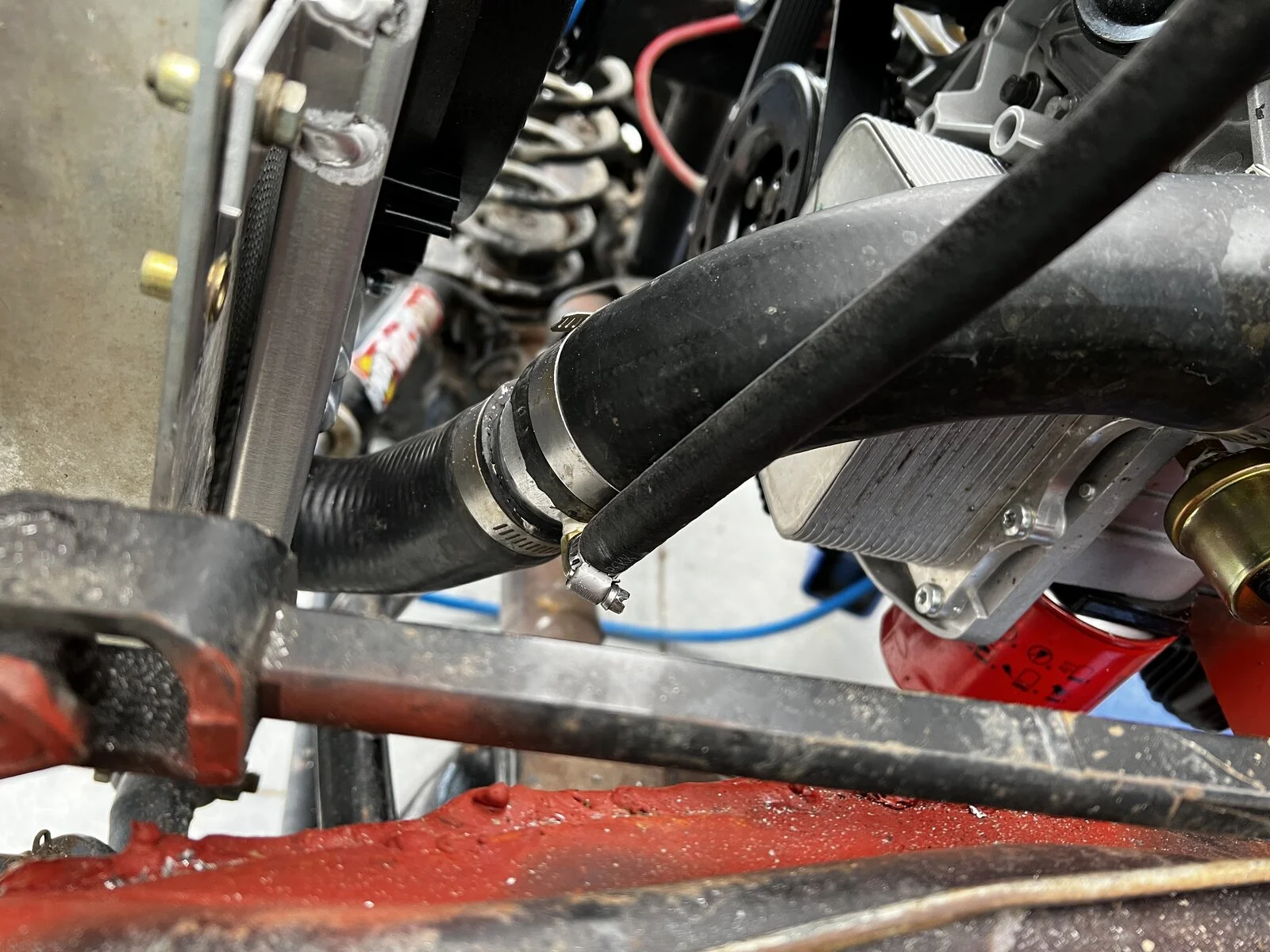

Cooling system is plumbed, I was able to repurpose the stock Jeep radiator hoses with a few mods. Looks like driver’s fender fits, will test passenger side tomorrow. I don’t want to install them until I complete the wiring.
