Should I install a dropped pitman arm?


Midtenn

TJ Enthusiast
Joined
Mar 4, 2020
Messages
772
Location
Tennessee

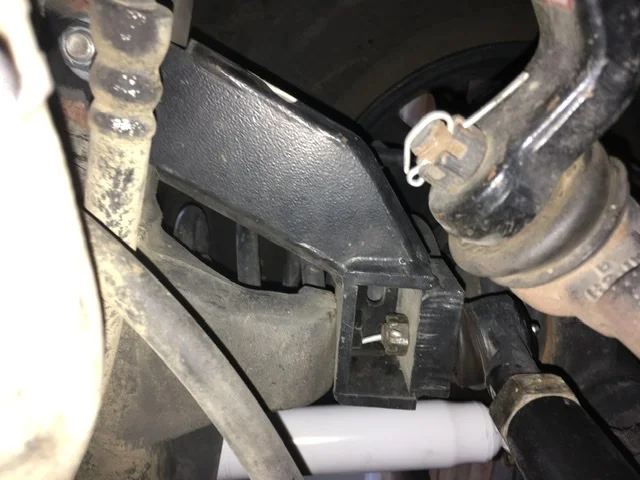

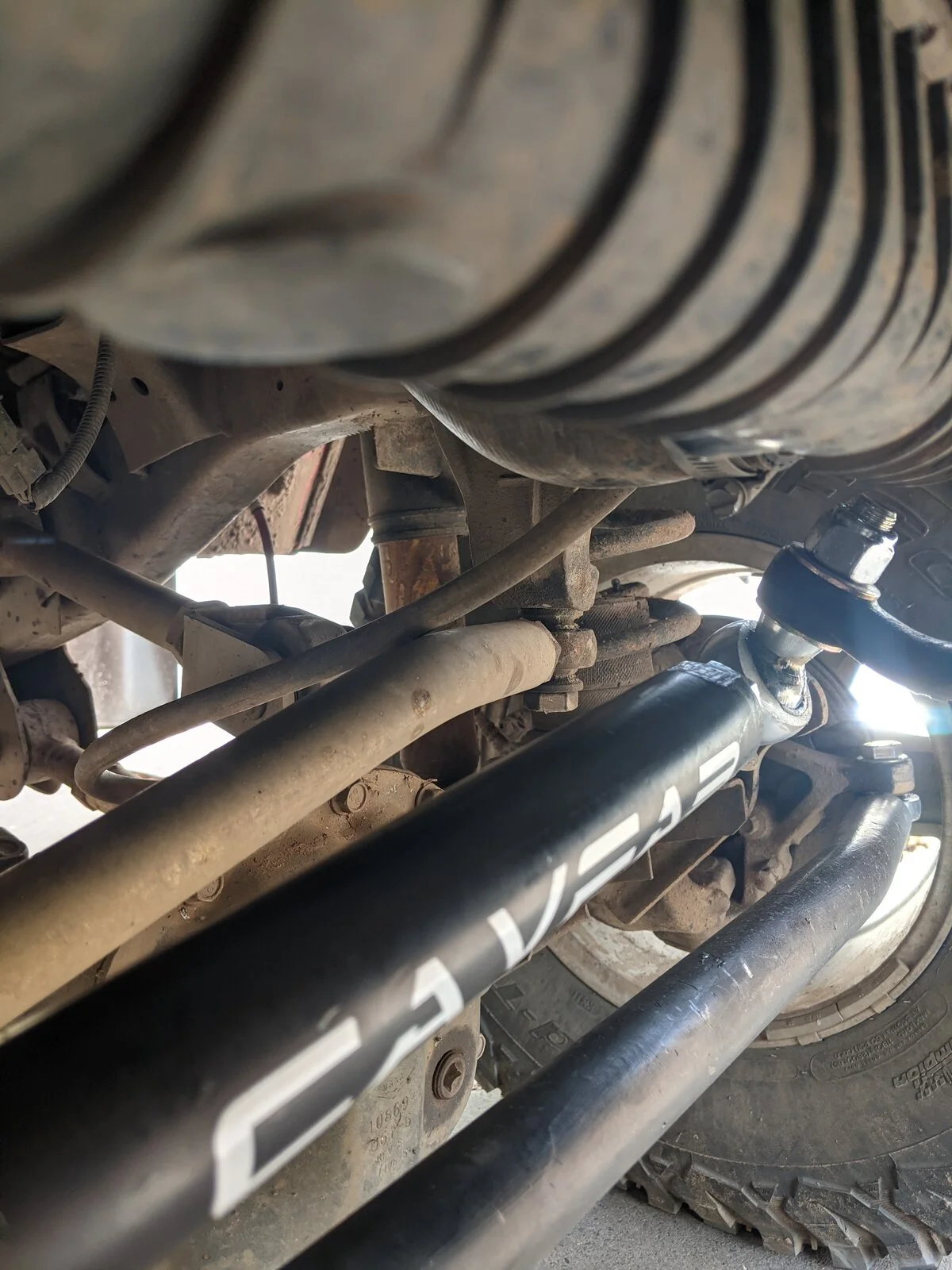

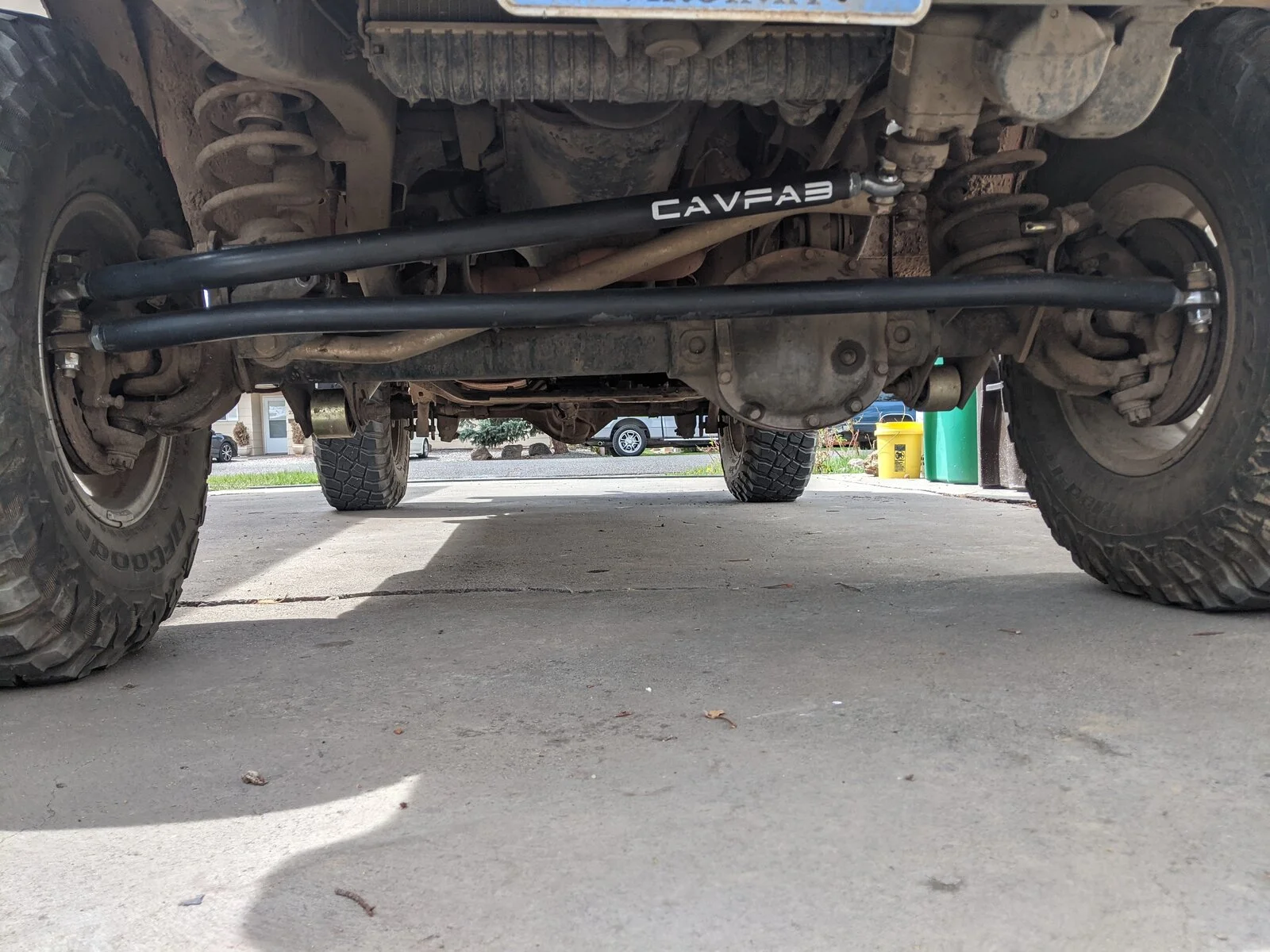

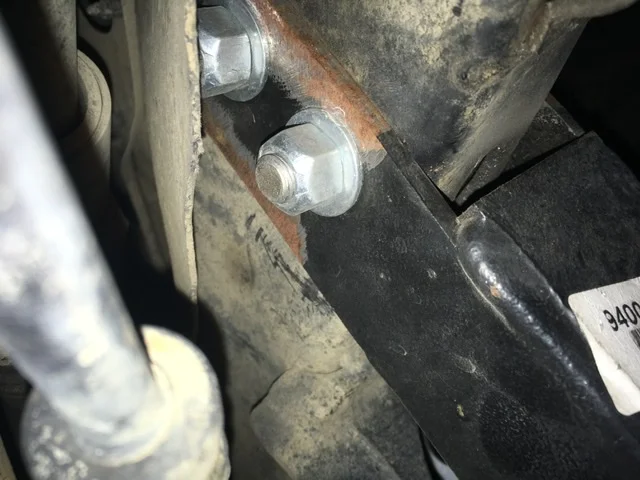

I am still a bit confused. I think I have a dropped pitman arm and a dropped bracket, so no further parts here are necessary. I took some pictures to see if I’m on the right track.














Last edited:

jjvw

Everything is great. No issues.
Supporting Member
Ride of the Month Winner
Joined
Feb 17, 2018
Messages
14,578
Location
Colorado, USA

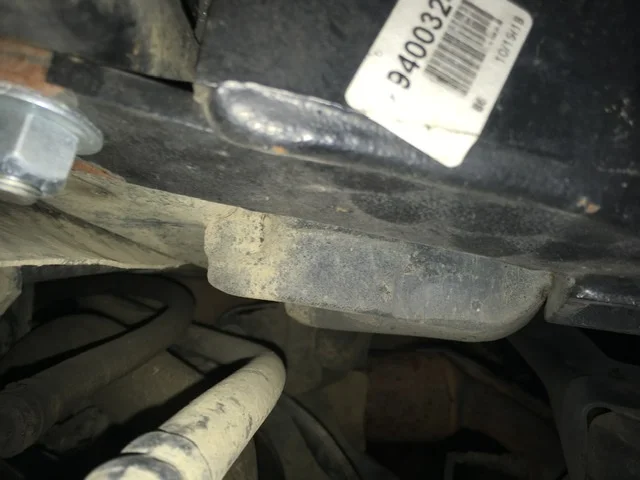

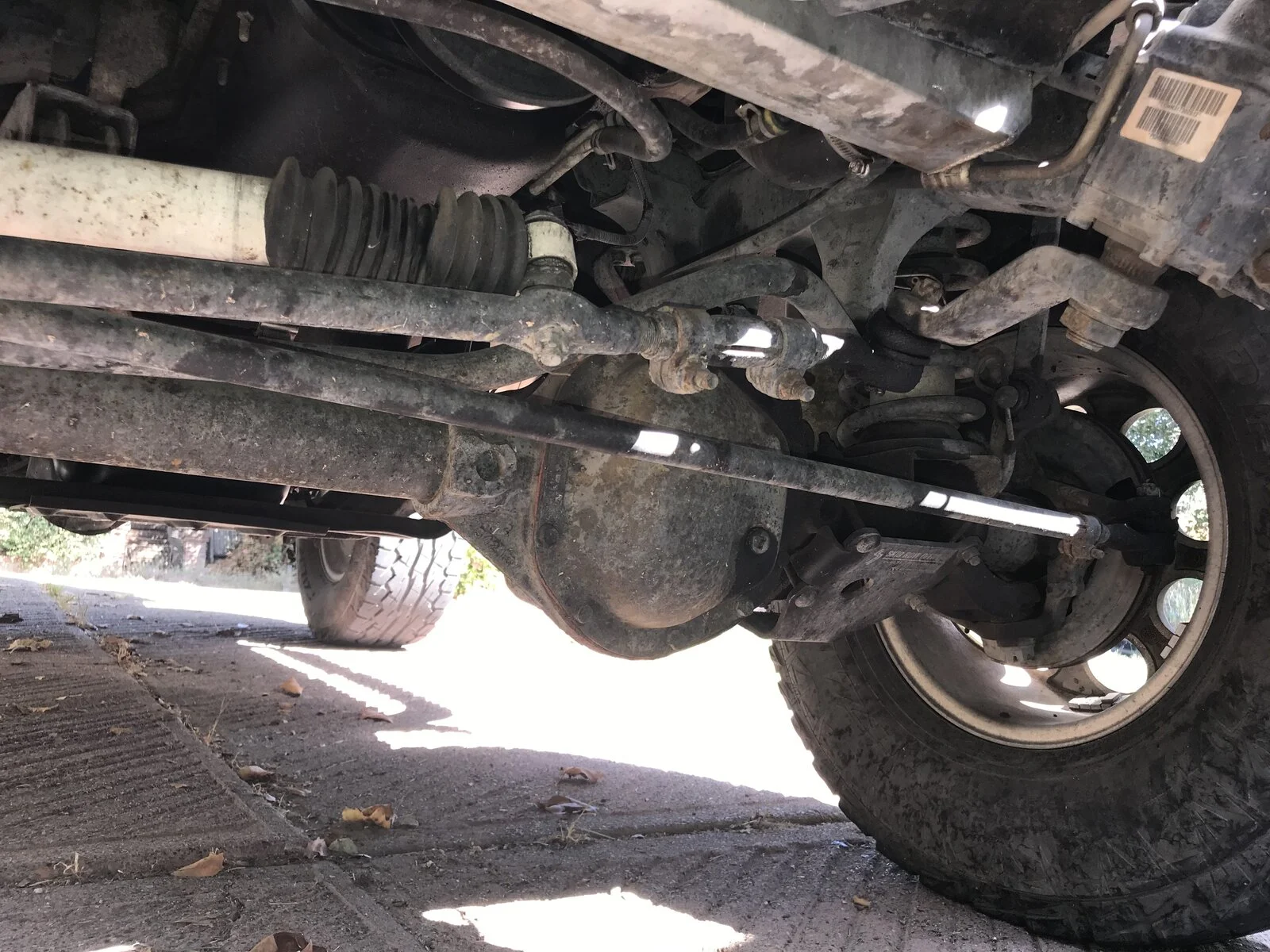

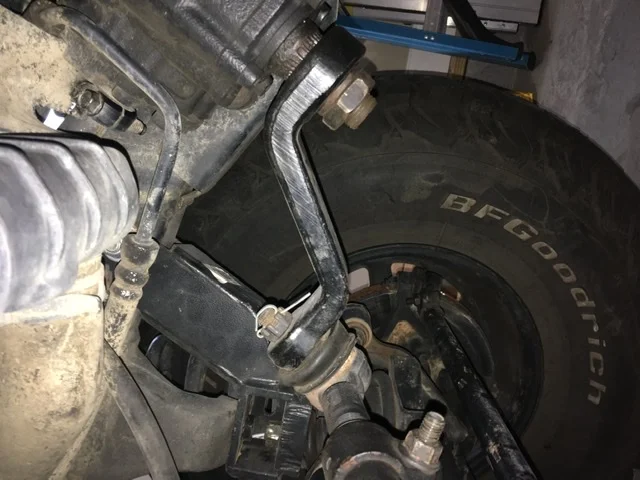

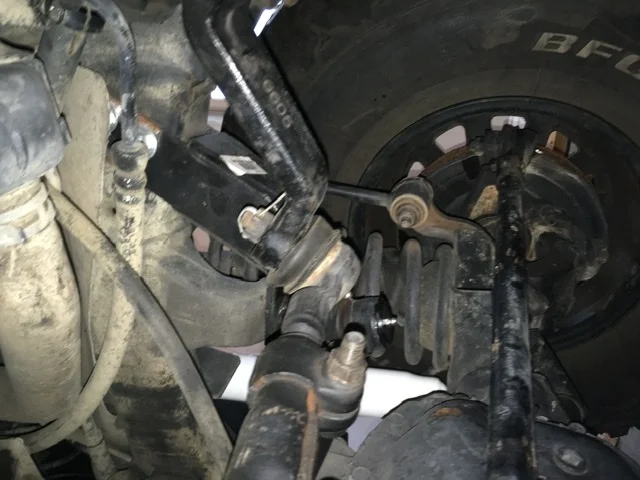

I am still a bit confused. I think I have a dropped pitman arm and a dropped bracket, so no further parts here are necessary. I took some pictures to see if I’m on the right track.

View attachment 149930

View attachment 149931

View attachment 149932

View attachment 149933

View attachment 149934

View attachment 149935

View attachment 149936

Your's has a dropped pitman arm and a dropped frame side track bar bracket.

Ideally, neither should be there. But both together should not screw up the steering.


Midtenn

TJ Enthusiast
Joined
Mar 4, 2020
Messages
772
Location
Tennessee
Your's has a dropped pitman arm and a dropped frame side track bar bracket.

Ideally, neither should be there. But both together should not screw up the steering.

okay that is what I thought. It’s finally starting to click.

I’ll leave this item alone for the time being and focus on the re gear.

  • Like
Reactions: jjvw

Kerry

Member
Joined
Jun 27, 2019
Messages
39
Location
New Zealand

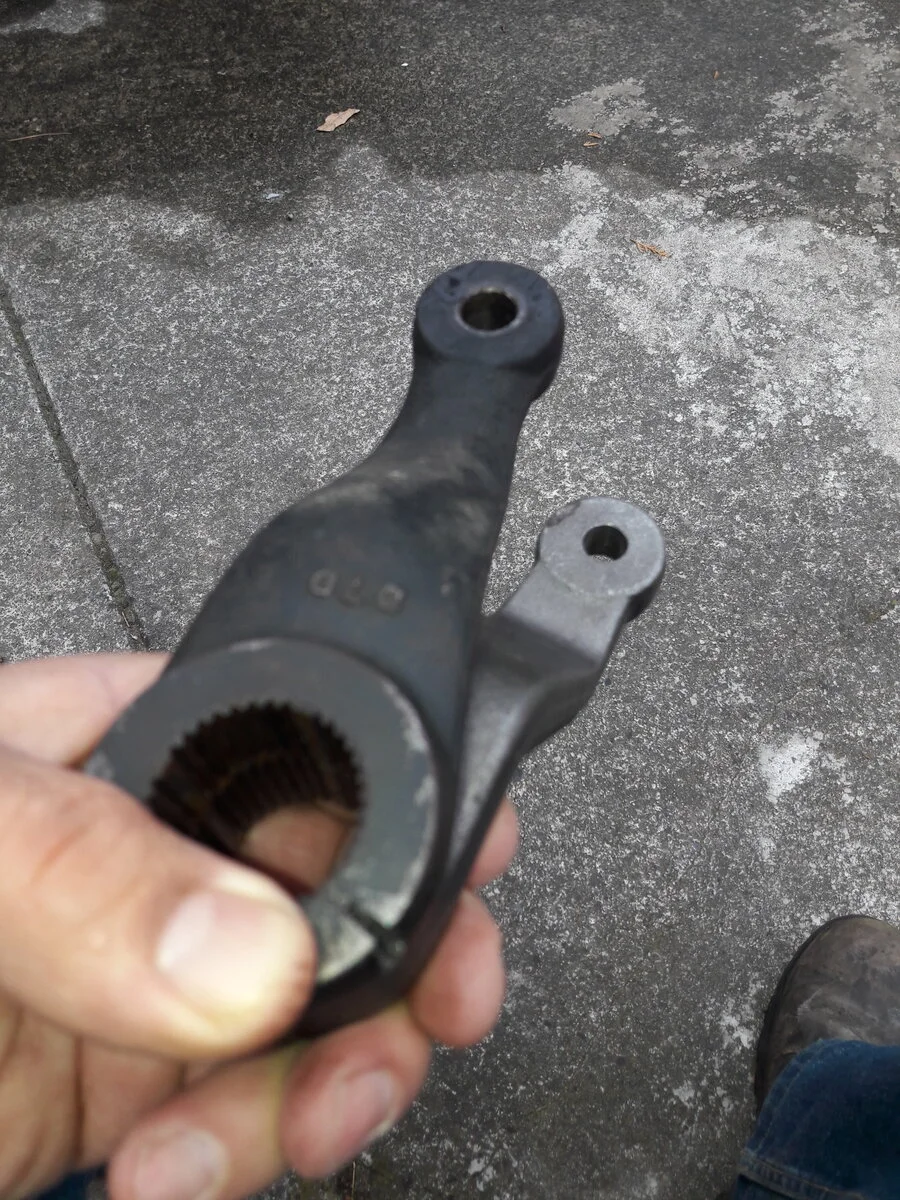

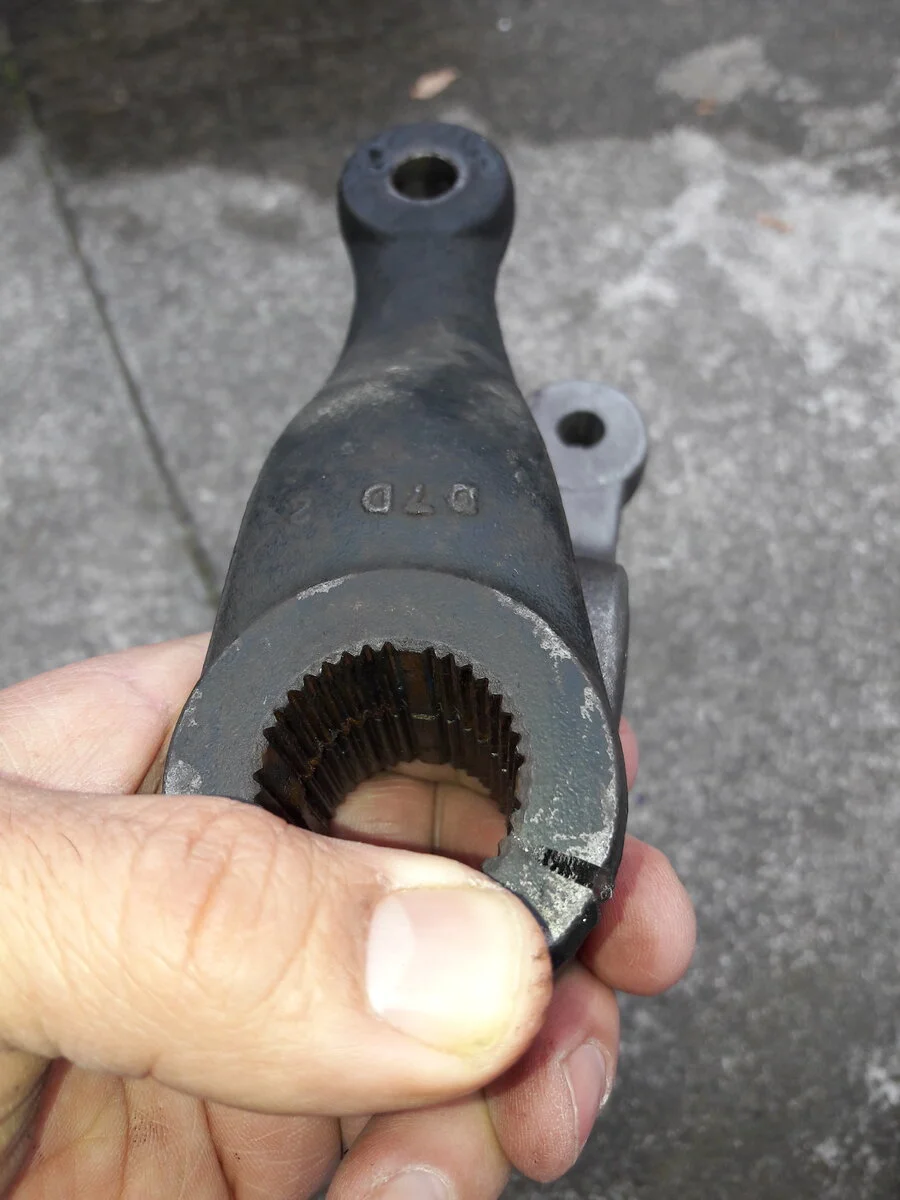

Not only do the drop pitman arms drop the fixing point lower, they also skew it off to the side about 40mm, see photos. The drag link would have to be wound right in for it to fit on my right hand drive, I did not like the look of it so I did not use it.


Kerry

Member
Joined
Jun 27, 2019
Messages
39
Location
New Zealand
Not only do the drop pitman arms drop the fixing point lower, they also skew it off to the side about 40mm, see photos. The drag link would have to be wound right in for it to fit on my right hand drive, I did not like the look of it so I did not use it.
View attachment 164046View attachment 164045
Oh wait a sec, I'm in NZ so mine is Right hand drive, I'm not 100% sure but the alignment could be the difference between RHD & LHD...


Dan75

New Member
Joined
May 24, 2016
Messages
1
I'm not sold on on installing the dropped pitman arm, I just put a 3 inch lift on my tj and now when i lift the drag link to put it on the pitman arm it pulls the passenger side wheels inward, if that pitman arm was down lower that won't happen


imactj2004

Member
Joined
Nov 7, 2020
Messages
34
Location
ashland
how do I identify if i have a dropped pitman arm? Someone mentioned to me in another thread that mine is dropped (see pic) but Im not clear on what demonstrates that.



Kerry

Member
Joined
Jun 27, 2019
Messages
39
Location
New Zealand
Yep looks like a dropped one to me. Do yourself a favor and get rid of it. I recommend the Moog part, both the Omix and Crown parts did not fit my TJ properly as the hole was not tapered to suit the steering box shaft when I got them a few months back.

The problem you might have after fitting a stock drop though is the steering damper binding on the drag link due to its fatter than stock diameter.


TWiG01

TJ Enthusiast
Supporting Member
Joined
Jun 1, 2020
Messages
373
Location
New Jersey
how do I identify if i have a dropped pitman arm? Someone mentioned to me in another thread that mine is dropped (see pic) but Im not clear on what demonstrates that.

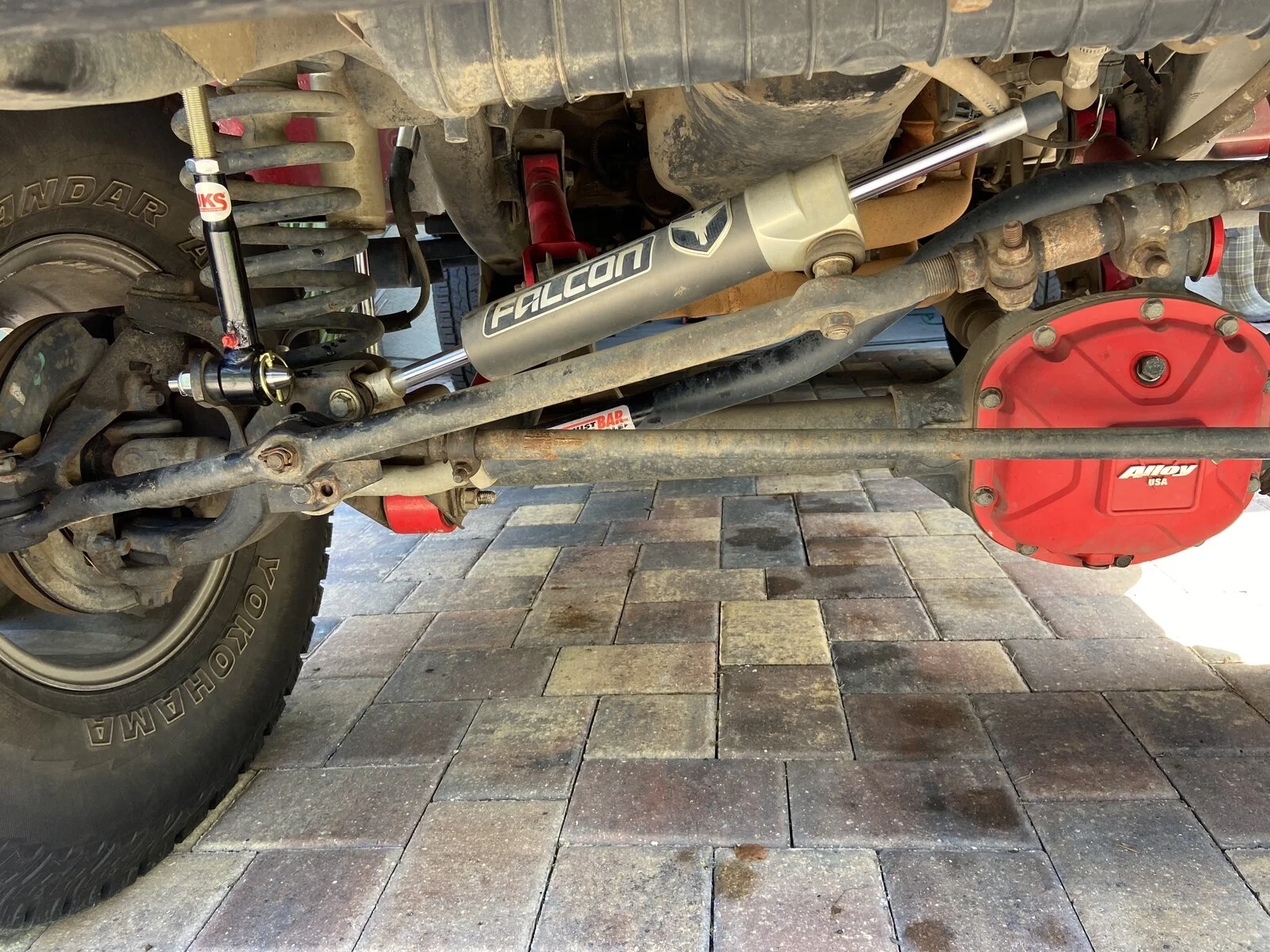

View attachment 204850

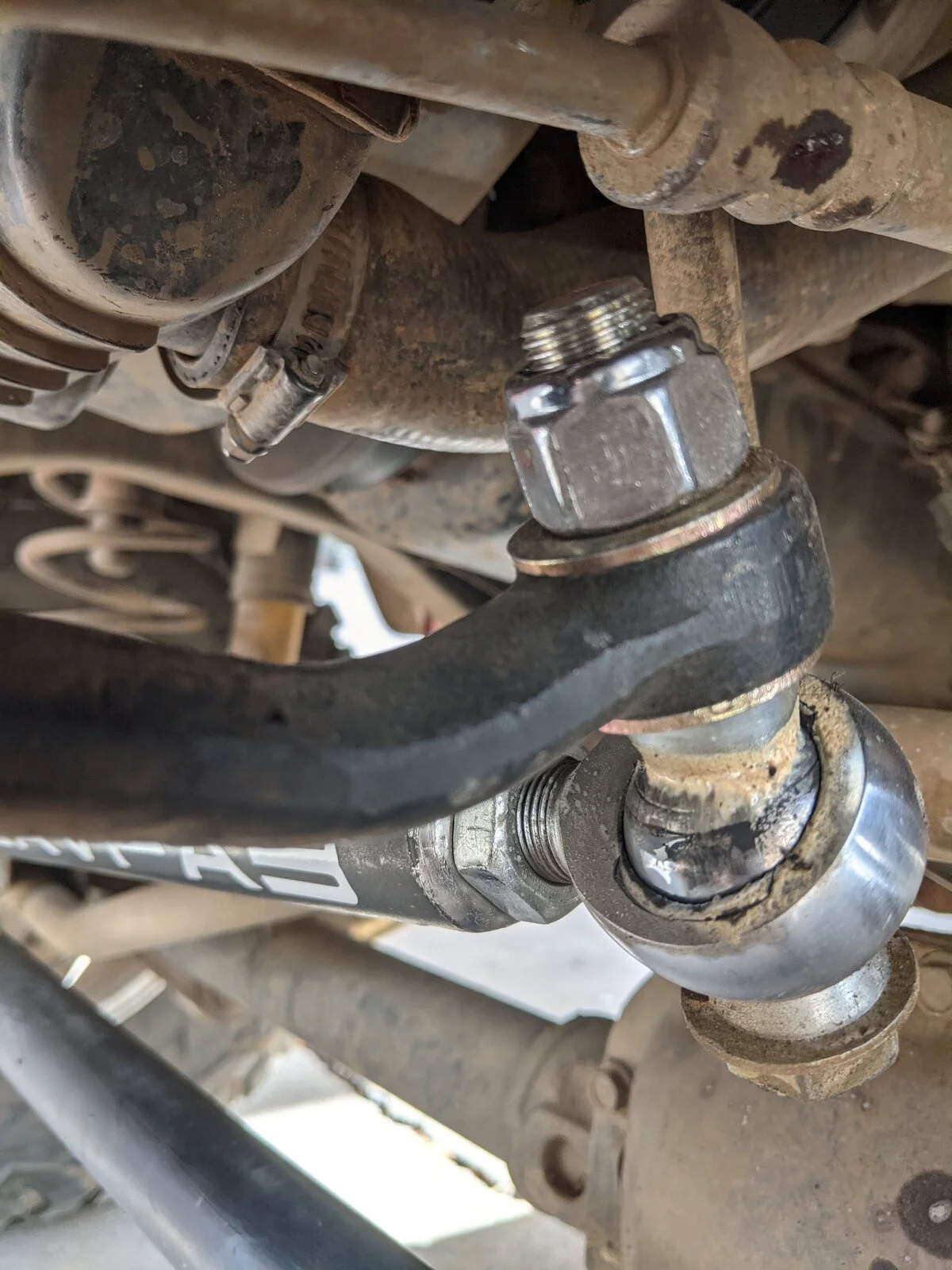

Just to answer your question, identifying a drop pitman arm is pretty simple. Here’s a picture displaying varying amounts of drop.
A drop pitman arm does just that, drops down to the drag link on a lifted vehicle.

Most factory car/truck pitman arms would fall between the flat pitman arm and the one second from left.

  • Like
Reactions: imactj2004
