To make the overdrive switch still function but turn off automatically as you shift into gear (which is about when I think about it.)

Get a common 4 or 5 pin lighting relay, I used Dorman part #88069 but a 4 pin works if it operates the same..there are different kinds.

1. Find the green/white back up wire at the drivers side rocker panel...run that to pin 86

2. Tap the overdrive swiitch green wire to pin 30

3. Tap the overdrive switch blue wire to 87 (this may be orange on some models)

4 . Run 85 to ground

87a is not used.

The reverse light switch wire pulses the overdrive switch when you pass reverse to drive , just like pushing the button does.

It stays off until you turn off the ignition or manually overide it for higher speed driving. In effect, the green/white reverse wire power now does for you what your finger did, all else remains the same.

Thanks to @Jamison C for advising me, tune in tomorrow as we explain how the pyramids were built.

Hope you auto guys like this as much as I do.

Andy G

Thanks for doing this. I may have to try it. It’s cool that it seems so easy because I’m not great with electrical stuff; no confidence.

Where did you mount your relay?

Does the orange indicator light work the same as it did before the mod?


Maso

TJ Enthusiast
Joined
Sep 29, 2017
Messages
140
Location
Geelong, Victoria, Australia

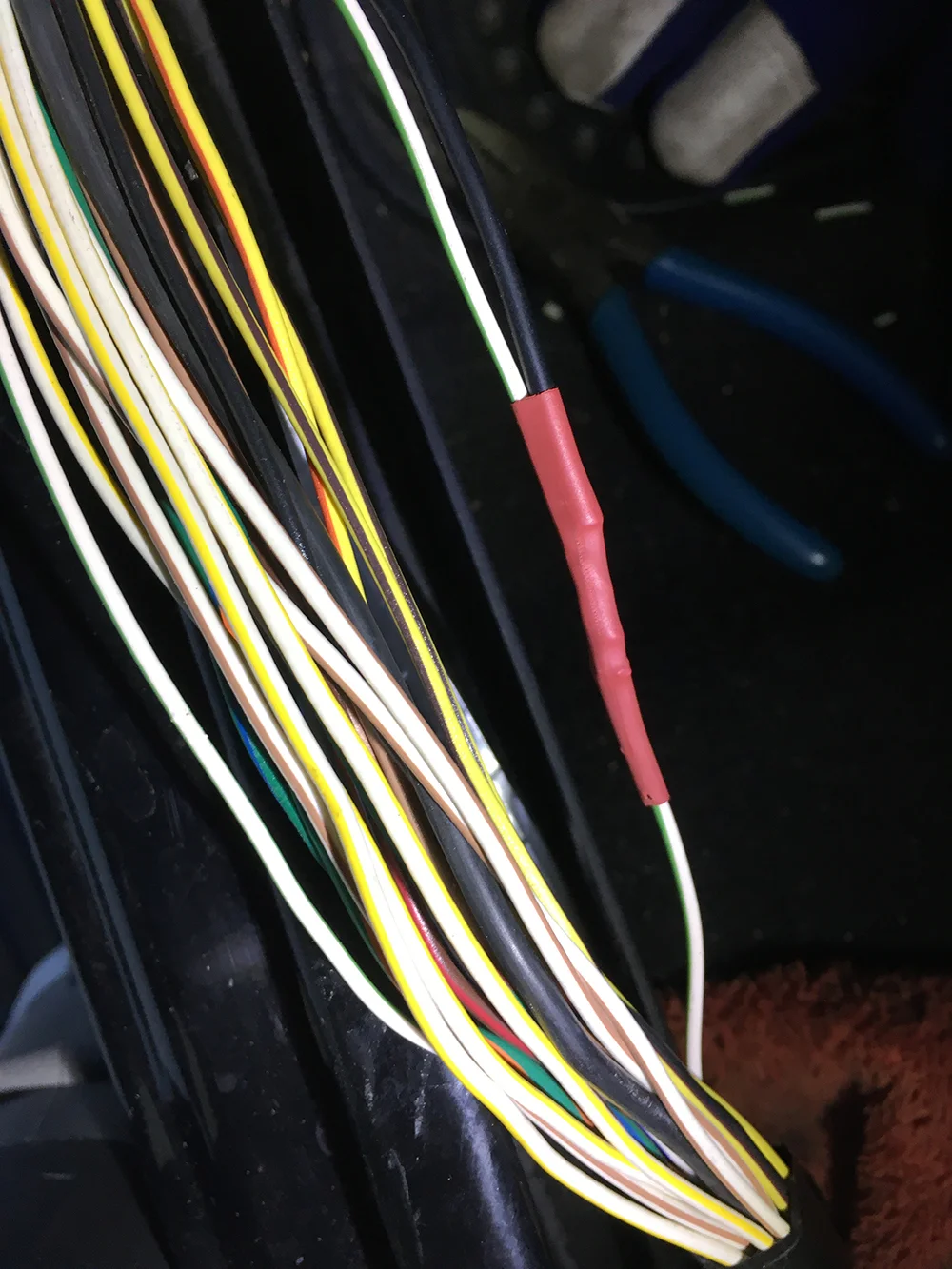

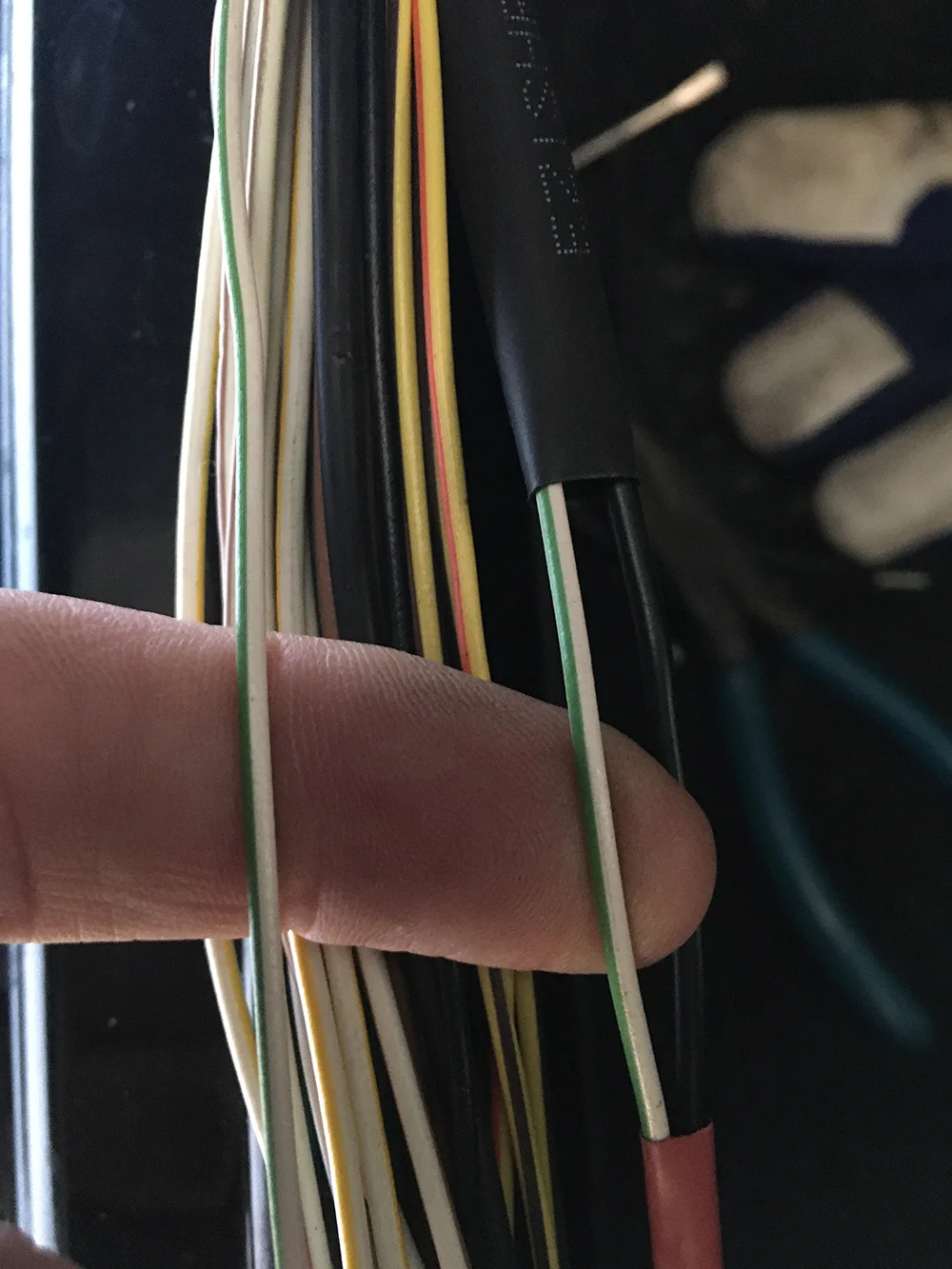

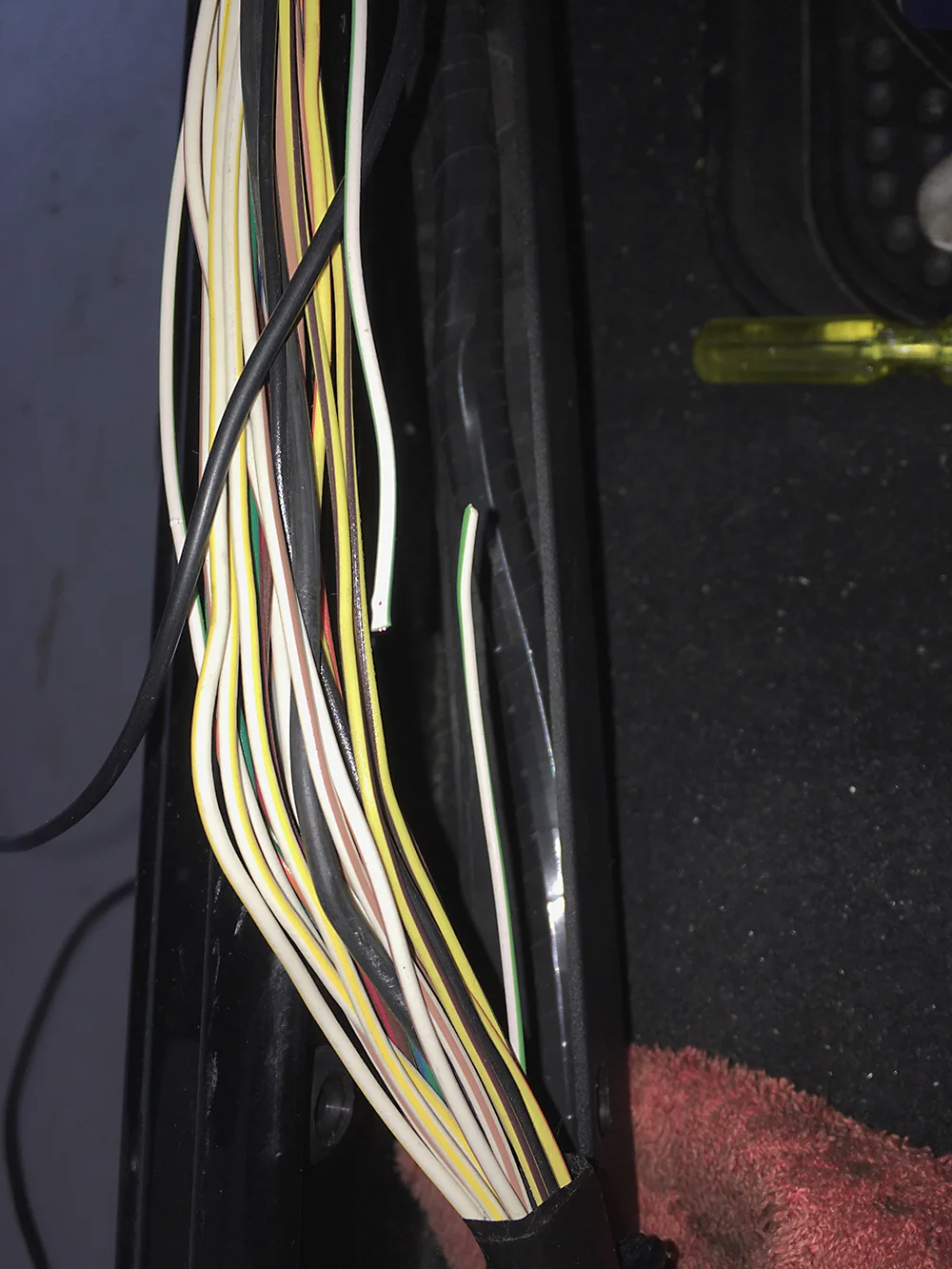

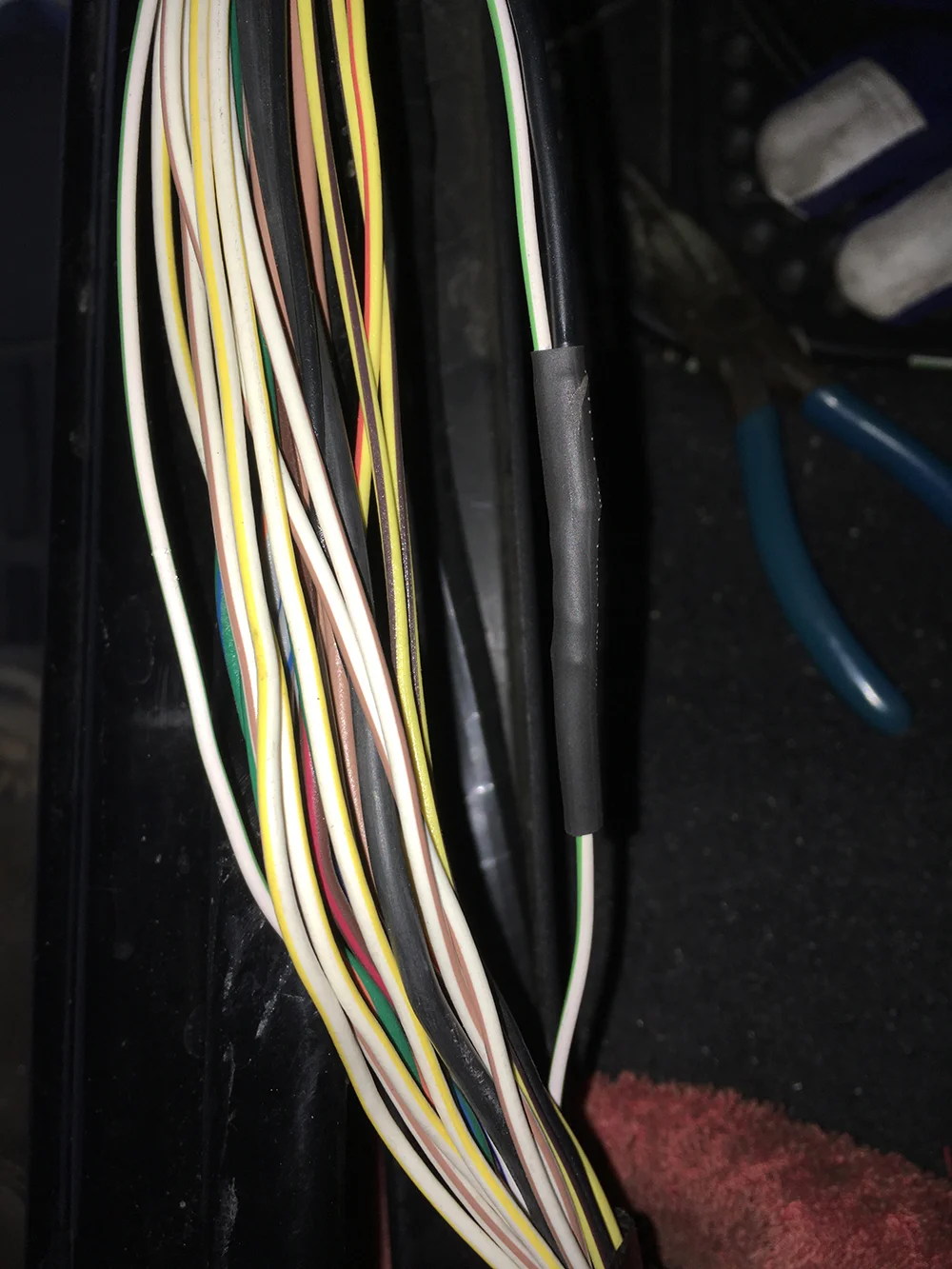

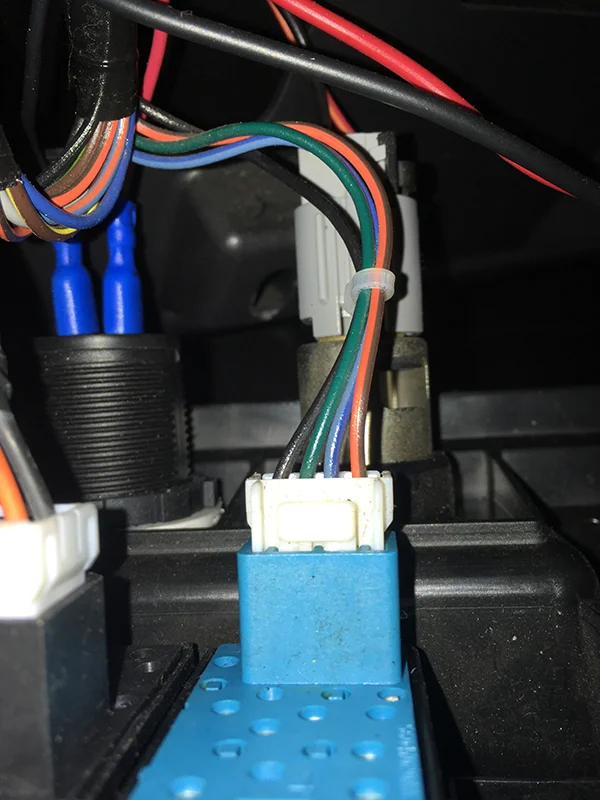

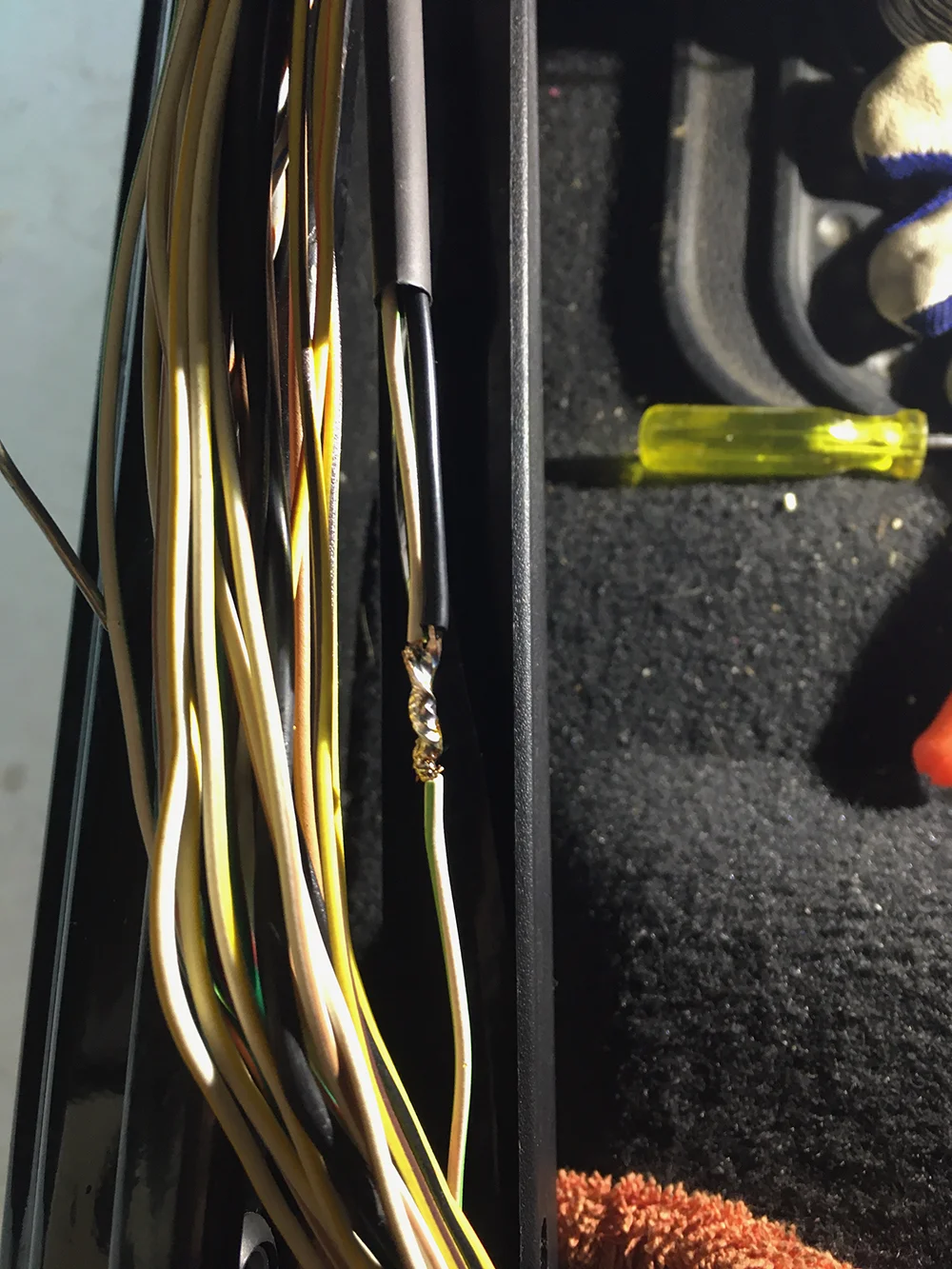

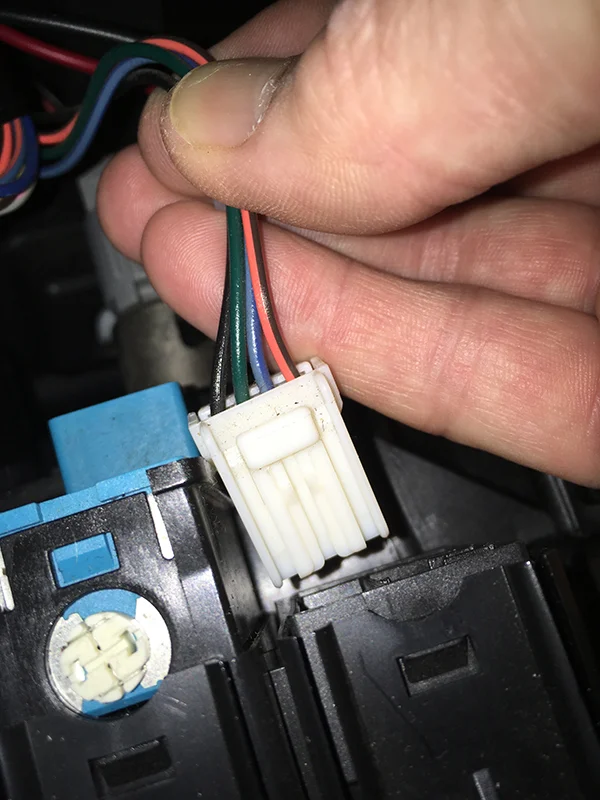

Here is a couple of pics of the wires and connector of the OD switch in a 2006 TJ, Export. In case anyone's interested. I haven't done the mod yet, just wanted to see what it looks like for now.
