Upgrading the underhood light

Viking Jeeper

2A Supporter
Supporting Member
Joined
Jan 10, 2019
Messages
3,439
Location
Fleming Island FL
Thanks for all the info and links. I already received the NOS GM light and ordered another for my truck. Found the wiring harness from information here also. Great mod.


TDB55

TJ Enthusiast
Supporting Member
Joined
May 18, 2019
Messages
290
Location
North Carolina
I have my light and harness but I’m not much on wiring things. How is everyone connecting the wiring? Cut and crimp? Add a tap connector? Ground to the hood?
I also want to leave the stock light in place.

Last edited:

oldjeepman

TJ Enthusiast
Supporting Member
Joined
Jan 14, 2019
Messages
525
Location
Nebraska
I cut off the old connector plug and spliced the new pigtail to the stock wire. Used the heat shrink solder connectors with heat shrink over that. You could also cut and crimp..

  • Like
Reactions: TDB55

Drippy

TJ Enthusiast
Joined
Mar 15, 2019
Messages
137
Location
VA
I have my light and harness but I’m not much on wiring things. How is everyone connecting the wiring? Cut and crimp? Add a tap connector? Ground to the hood?
I also want to leave the stock light in place.

If you're going to keep the stock one. Wired it like I did, in line with the stock wiring.

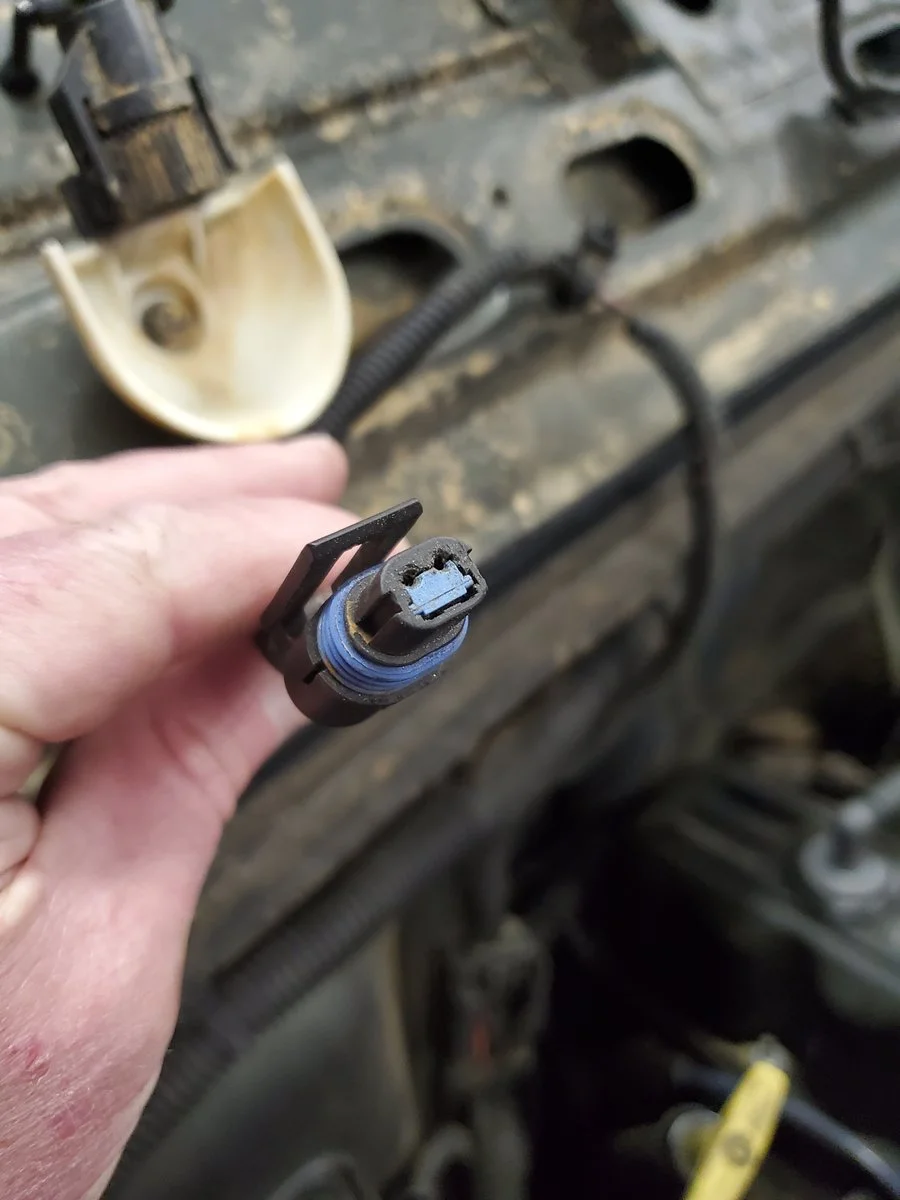

On the pigtail connector itself, there should be two letters A and B stamped on the body. A (left side wire) is Positive, B (right side wire) is negative. Extend the (A) lead wire and tapped it into the stock Red (Power) wire. Then find a place for ground.

  • Like
Reactions: TDB55

BAPilot2

Member
Joined
Sep 3, 2019
Messages
63
Location
Fort Worth, Texas

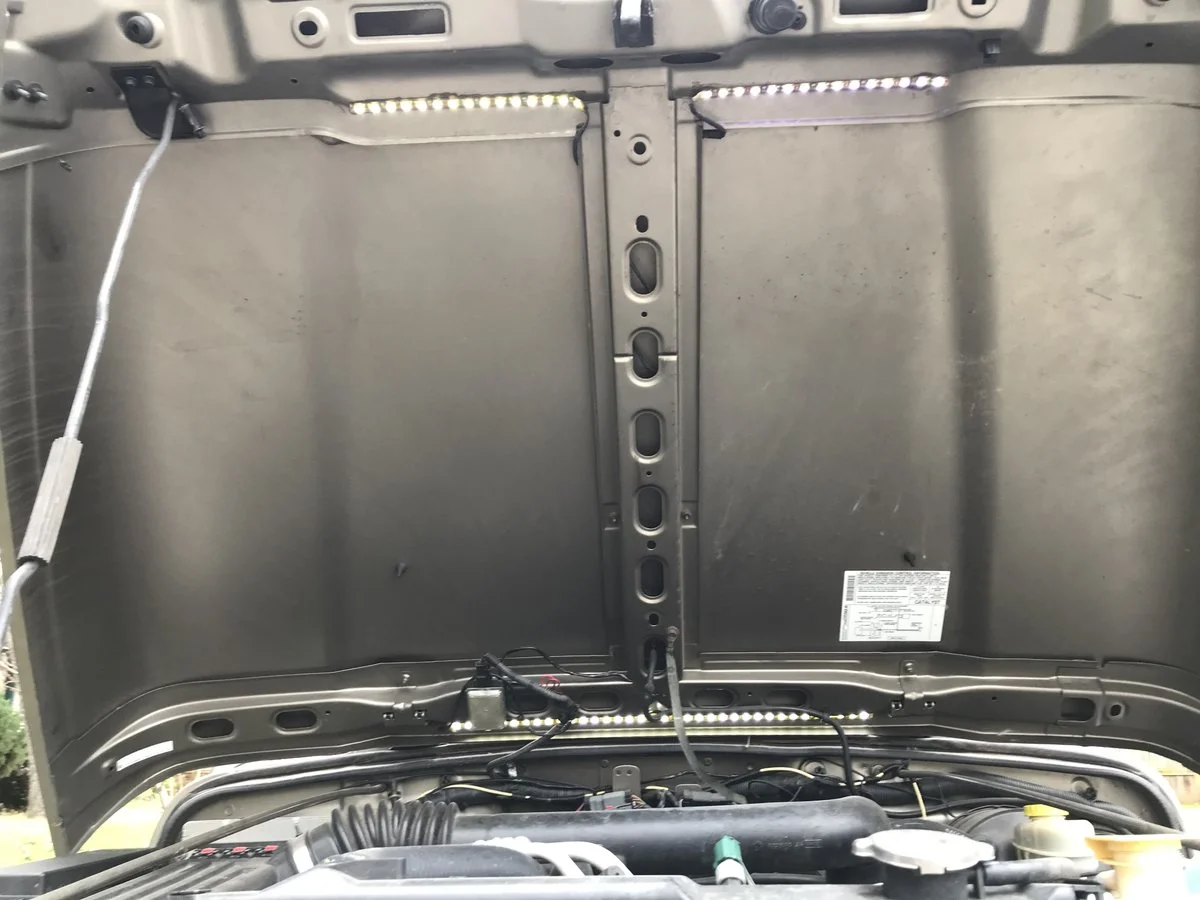

A few months back I installed 3 strips of LED rope lighting. I wired them directly to the factory hood light bulb connectors. So when the hood opens, the lights turn on, and when it’s closed they turn off. It works just like the factory bulb light but they are a lot brighter and they give more overall illumination.

You can see the two smaller strips to the right of the prop rod and the longer strip near the hood hinges.


AndyG

TJ Guru
Lifetime Supporting Member
Joined
Jul 30, 2018
Messages
13,509
Location
Alabama
I recently purchased some 2100 lumen led 1156 bulbs on Amazon , if I do this , that's what I'm putting in it.


T A

TJ Enthusiast
Joined
Mar 15, 2020
Messages
153
Location
North Carolina
Anyone know the part number for the existing wiring harness connector? I don't want to cut mine off, just connect the new light into the existing plug. I've looked but there are so many different ones I can't find anything confirming which one is correct.



LONGJP2

TJ Expert
Joined
Aug 11, 2019
Messages
3,106
Location
Illinois
Anyone know the part number for the existing wiring harness connector? I don't want to cut mine off, just connect the new light into the existing plug. I've looked but there are so many different ones I can't find anything confirming which one is correct.

The switch for the light is inside the light. So, the original plug is hot all the time.


CharlesHS

TJ Expert
Supporting Member
Lifetime Supporting Member
Joined
Mar 10, 2020
Messages
5,051
Location
Jacksonville FL, Quezon Philippines

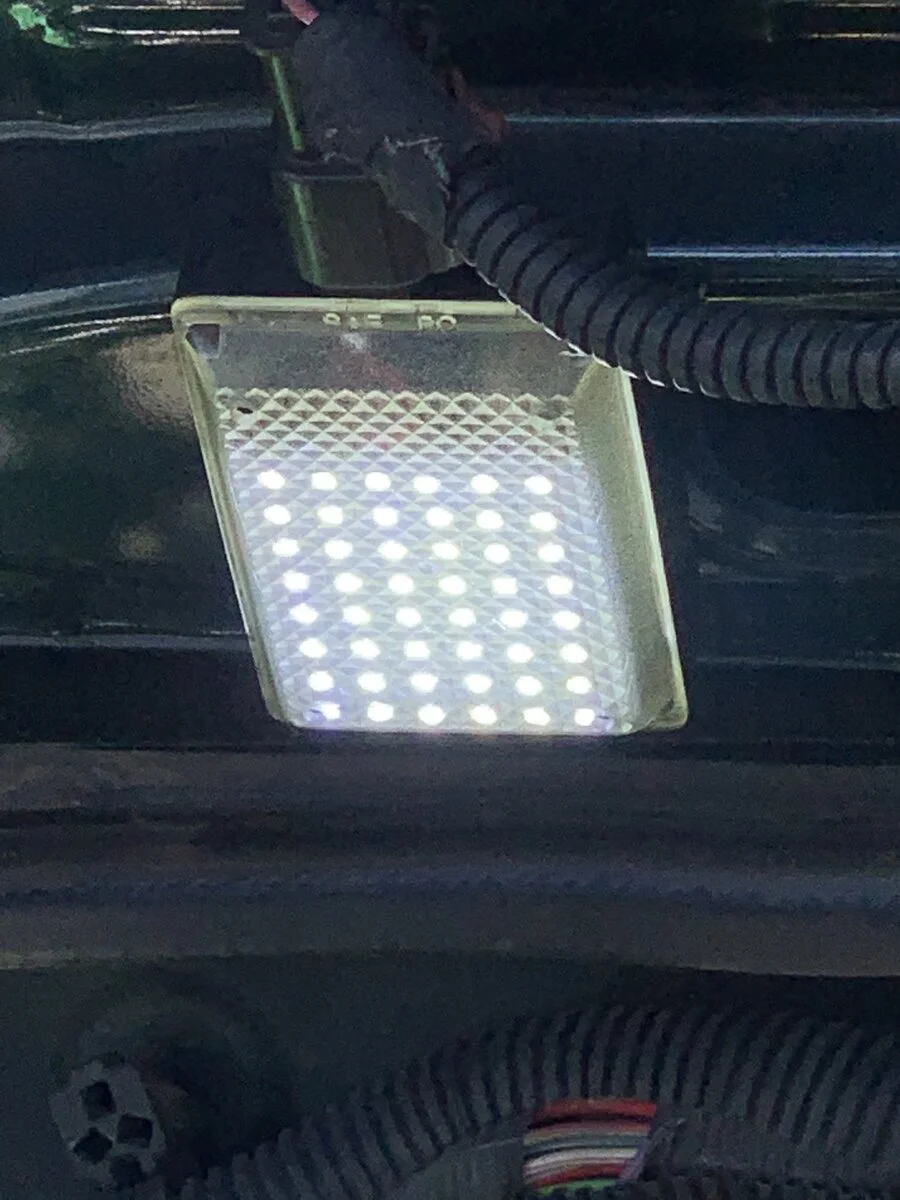

Purchased a 48 SMD circuit board and soldered the negative lead to the switched brass terminal and the positive lead to the other brass terminal. The circuit board fits snugly into the factory housing. The LEDs light up the entire engine compartment at night and only cost $5.50 including shipping.



TDB55

TJ Enthusiast
Supporting Member
Joined
May 18, 2019
Messages
290
Location
North Carolina

GaTechTJ

TJ Enthusiast
Supporting Member
Joined
Jan 1, 2020
Messages
246
Location
Georgia
Thanks for coming up with this mod. It is by far one of the useful mod I've done.

Also, there is a seller on Ebay under the handle of "qzsues2dogs" who is selling new old stock for $10 a piece. Get it while it last! And the original has a suction mount along with the magnetic base. Neat!

https://rover.ebay.com/rover/1/711-...0001&campid=5337789113&icep_item=283764059540

View attachment 143658

View attachment 143659
Drippy, Where did you get power from? Did you splice into the wires feeding the OEM light, or did you splice into the OEM light itself? I like the clean look of your installation and I am trying to replicate it. Thanks for your help.


Drippy

TJ Enthusiast
Joined
Mar 15, 2019
Messages
137
Location
VA
Drippy, Where did you get power from? Did you splice into the wires feeding the OEM light, or did you splice into the OEM light itself? I like the clean look of your installation and I am trying to replicate it. Thanks for your help.

I spliced it into the oe wire and ground it on the hood bumper stud. In case I'd ever need to remove the GM light, I'll still have the stock light available. Real easy mode once you have everything on hand.


Viking Jeeper

2A Supporter
Supporting Member
Joined
Jan 10, 2019
Messages
3,439
Location
Fleming Island FL
My Jeep's PO ran hot/ground wires from the battery to the back of the Jeep for rear facing lights. He never finished the job. I'm thinking of mounting the GM light in the back of the Jeep. The retractable cord is plenty long enough to reach anywhere on the Jeep and this way if I want to use it as a cargo/work lamp I dont have to open the hood.

  • Like
Reactions: Zorba

Drippy

TJ Enthusiast
Joined
Mar 15, 2019
Messages
137
Location
VA
My Jeep's PO ran hot/ground wires from the battery to the back of the Jeep for rear facing lights. He never finished the job. I'm thinking of mounting the GM light in the back of the Jeep. The retractable cord is plenty long enough to reach anywhere on the Jeep and this way if I want to use it as a cargo/work lamp I dont have to open the hood.

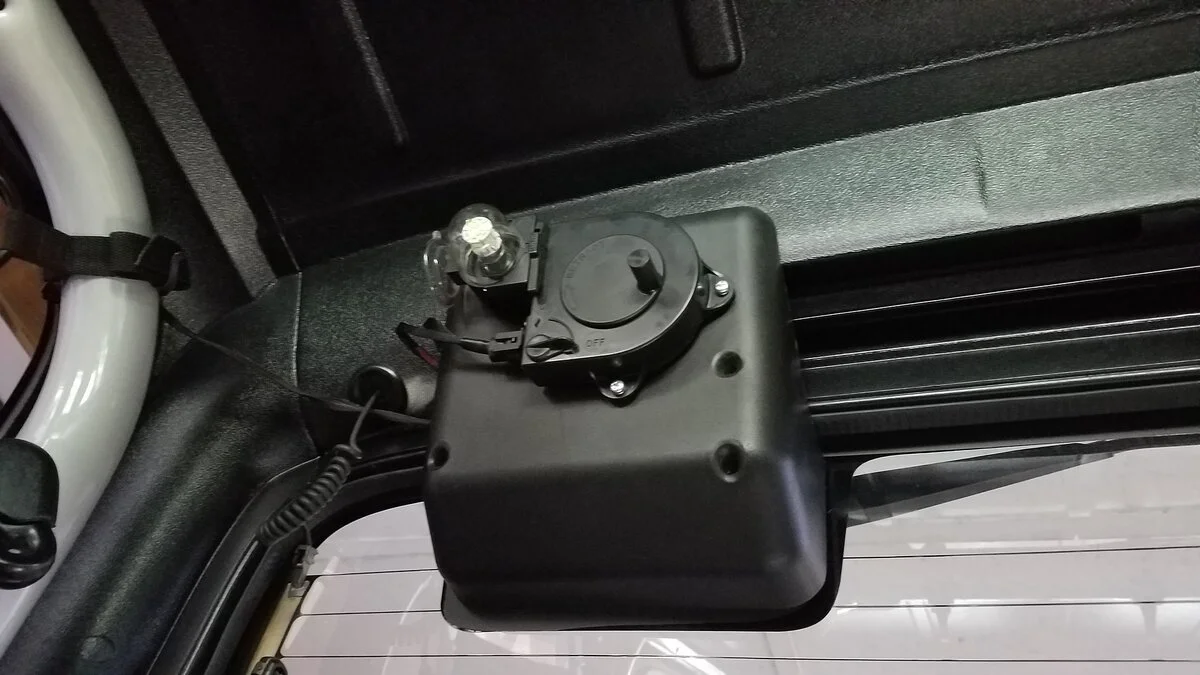

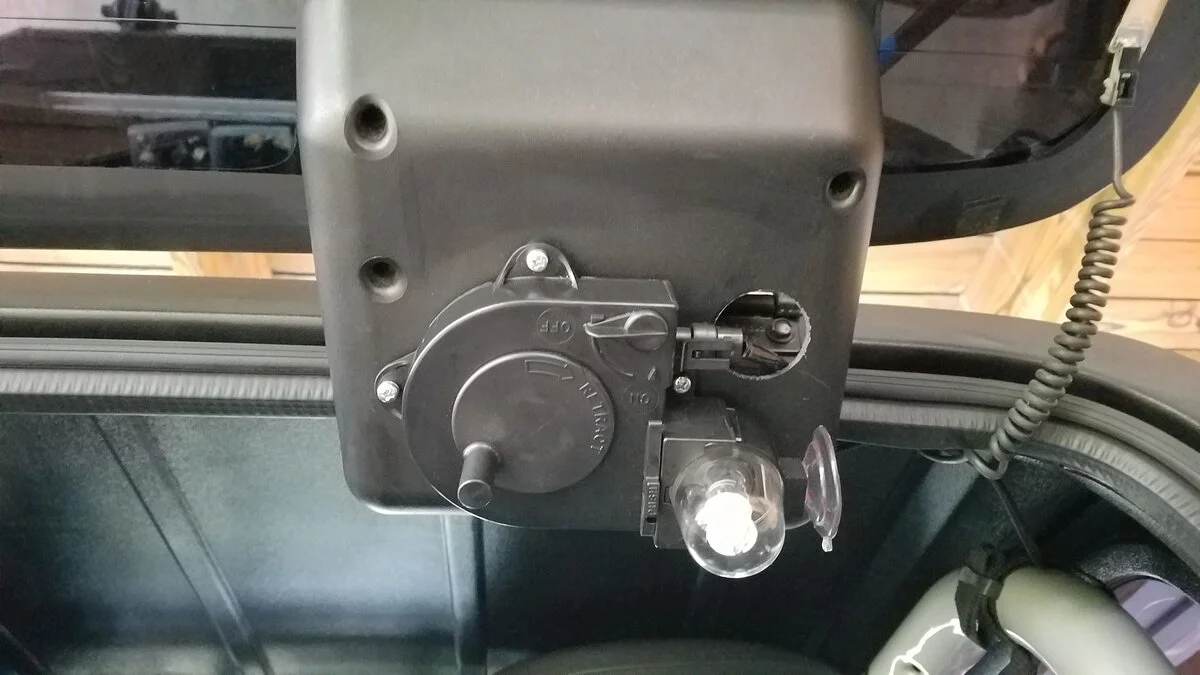

I also mounted one in the back. with a flip of the switch I have light. Tapped right into the existant dome light and grounded to the tub. Very useful.
