I just finished installing my 2 speed. I thought the shift lever install would be the toughest part but was actually the easiest. Definitely start with the rear in High. I used red loc-tite on everything and cut the supplied shrink tube 3/8" longer than anticipated.

  • Like
Reactions: B00mb00m and WSS
@WSS , looking at the rear of your atlas, I noticed your low range switch position is installed in the housing in line with the front axle output shaft. Is this its' intended location? I assumed it was meant to be installed at the shift tower (if that's what it's called)

WSS said:
Then I would have no torque and might be able to do 150mph (like my speedo says). A tc is a torque multiplier not a torque divider, I think??
Click to expand...
No. If your TC ratio is 5:1 that means the input shaft is rotating 5 times for every 1 time the output rotates.

So (assuming your transmission is 1:1), your engine would be turning 5x faster than the output of your transfer case.

  • Like
Reactions: WSS
sierradmax said:
@WSS , looking at the rear of your atlas, I noticed your low range switch position is installed in the housing in line with the front axle output shaft. Is this its' intended location? I assumed it was meant to be installed at the shift tower (if that's what it's called)
Click to expand...
You are correct, it is know up on the tower. And, I have signal lol

  • Like
Reactions: sierradmax
toximus said:
No. If your TC ratio is 5:1 that means the input shaft is rotating 5 times for every 1 time the output rotates.

So (assuming your transmission is 1:1), your engine would be turning 5x faster than the output of your transfer case.
Click to expand...
So nothing in the Atlas II is spinning 5 times the input speed? I wonder what in the heck he was referring to.

  • Like
Reactions: B00mb00m
WSS said:
So nothing in the Atlas II is spinning 5 times the input speed? I wonder what in the heck he was referring to.
Click to expand...

Not that I can think of, although I've never taken one apart. I know they're used in racing conditions in low range at much faster speeds than most of us will ever take them at.

@B00mb00m everyone's install will be a bit different. Physically installing will require some fabrication. I'm still trying to solve the 4wd indicator issue but mine's a Rubicon and the wiring/programming is completely different than a sport/SE/Sahara application.

  • Like
Reactions: Wildman
sierradmax said:
@B00mb00m everyone's install will be a bit different. Physically installing will require some fabrication. I'm still trying to solve the 4wd indicator issue but mine's a Rubicon and the wiring/programming is completely different than a sport/SE/Sahara application.
Click to expand...
What did you have to fabricate?

  • Like
Reactions: Wildman
Shift linkages (Advanced supply's the parts to do so)
Tub massage just a bit

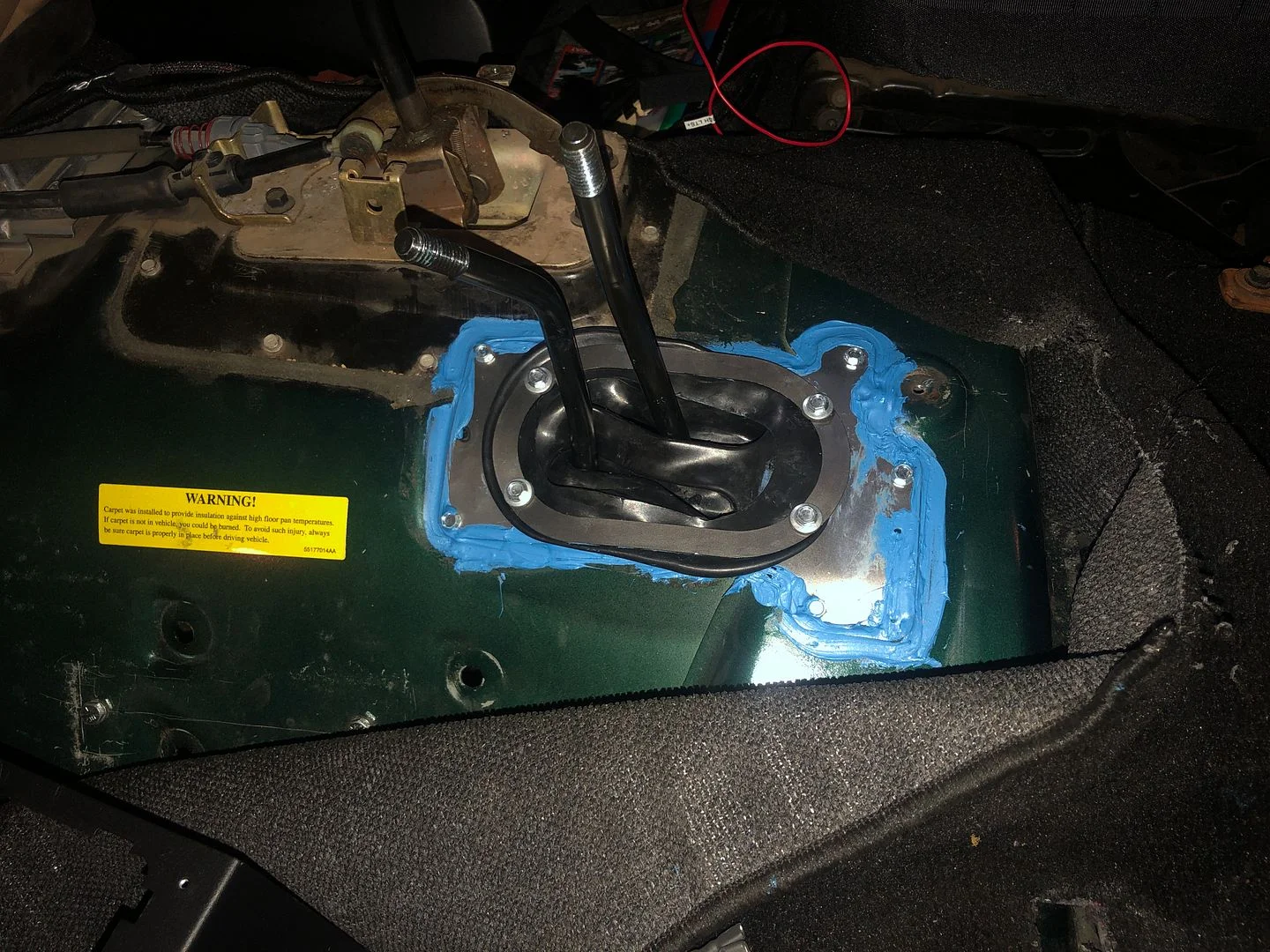

sheet metal to cover transfer case shift opening
My original trans mount wouldn't work with the Atlas so I opted to build a cross-member at the time of install, which also led to exhaust modifications.

  • Like
Reactions: Sj's TJ and Wildman
Also, I think the 97-01's (maybe 02's) have a single CAT that's monitored before and after.

  • Like
Reactions: Wildman

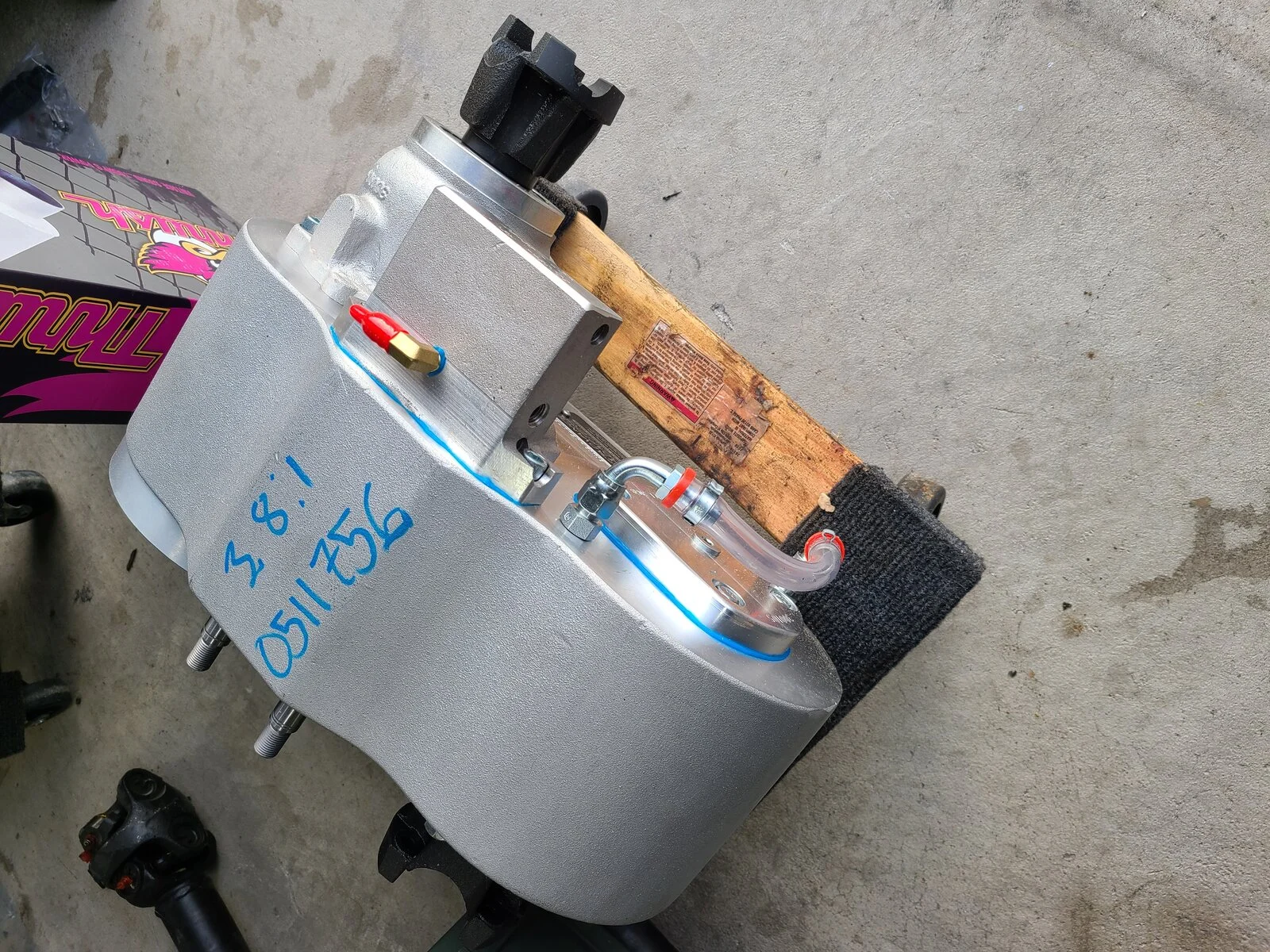

And then there was a shiny new thing in my driveway...shipped 4 days earlier than projected


  • Like
  • Love
Reactions: tworley, Alex01, Fouledplugs and 4 others
B00mb00m said:
Did you add an O2 sensor to your exhaust?

Is there a good Atlas 2-speed install thread?
Click to expand...
No, The 02 senors are OE I believe. It is not a original Kali vehicle, I bought it in Gilbert Az.

I followed along with these guy as they show lots of pics LOL:

http://www.higherground4x4.com/Tech Atlas 1.htm

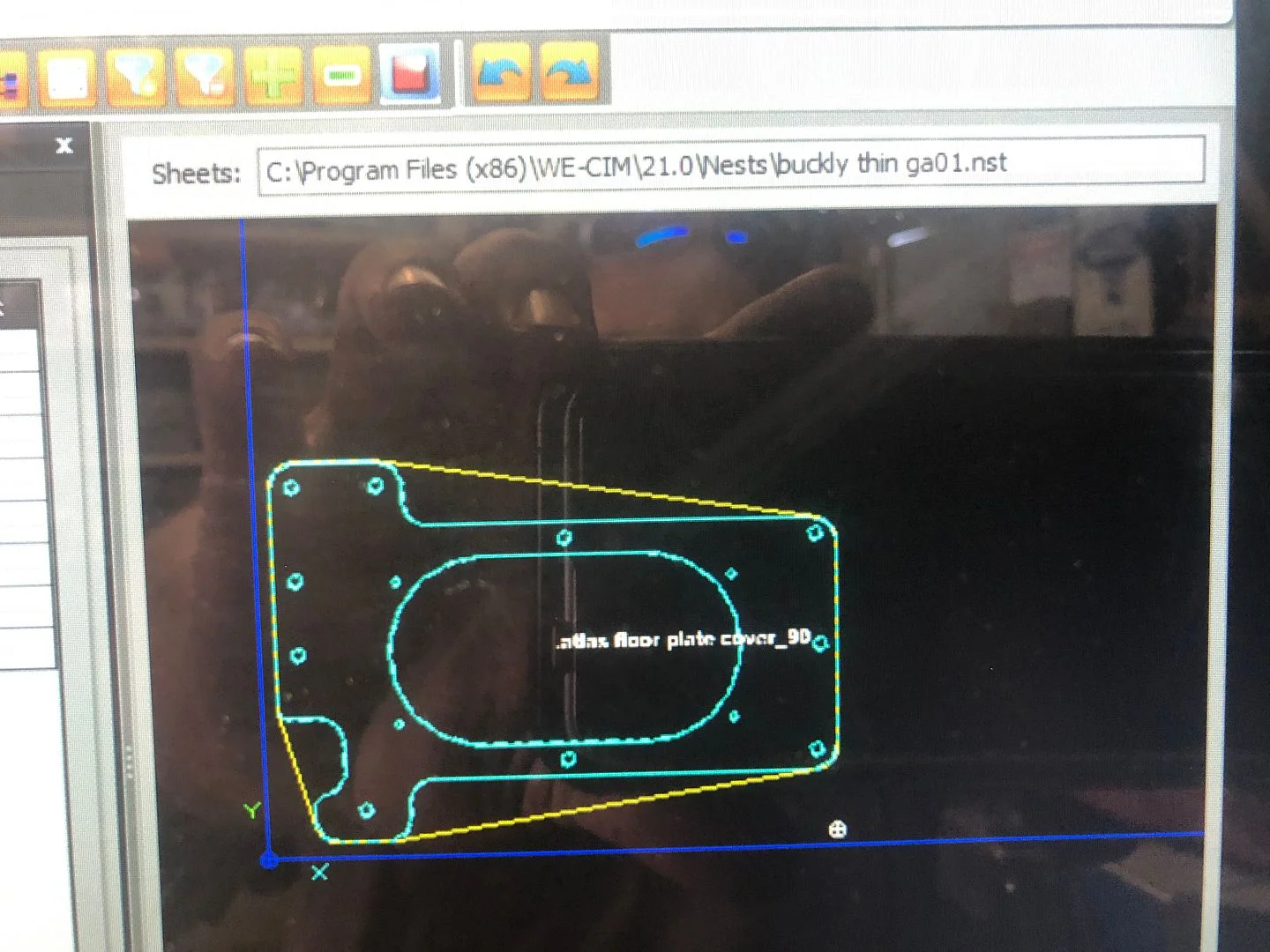

I did install a 1" body lift before the ordeal and did a motor mount lift too. I pounded the tub upward enough to get the TC more than level, as in a little high on the drivers side. Was not too bad used a 3 and 4 lb hammer. BTW, I made a drawing of the tower cut out for sealing after the tub cut, I can send that around if anyone needs it.








  • Like
Reactions: tworley, Jeeptundra and B00mb00m
All I can say is IT IS GOOD TO HAVE FRIENDS IN SOUTHERN PLACES...
@mrblaine can you show them what you found me!?!

  • Wow
Reactions: Apparition
Atlas order cancelled. Pretty excited to see the crate invention the Wizard conjures up...

  • Wow
Reactions: Apparition
