How many things are wrong in this picture?
- Thread starter mrblaine
- Start date
The sad part is that someone would spend $55,000 on it and believe the seller as to how great it is. Reminds me of the Davisautosports overpriced Jeeps sold around here.
I didn't read the entire thread, but to me it looks like the caster is way off. Who ever built it incorrectly intalled the outer c's.
which is going to fubar your steering axis.
Also looks like the inside edge of the rotor is/was rubbing on the knuckle.
which is going to fubar your steering axis.
Also looks like the inside edge of the rotor is/was rubbing on the knuckle.
OP
Alright, lets prune.
Tires go- 3000 mistake.
Rims go- 1500 mistake.
Now you have a 9000 front axle for 35's with a matching rear for another 6000.
What part of that makes any sense? You buy it for 50, then you get to fix it?
OP
B00mb00m
The Church of Cutting Brakes of Atlas-Front Digs
Supporting Member
Ride of the Month Winner
The only thing better than locked steering is parking in salt water.

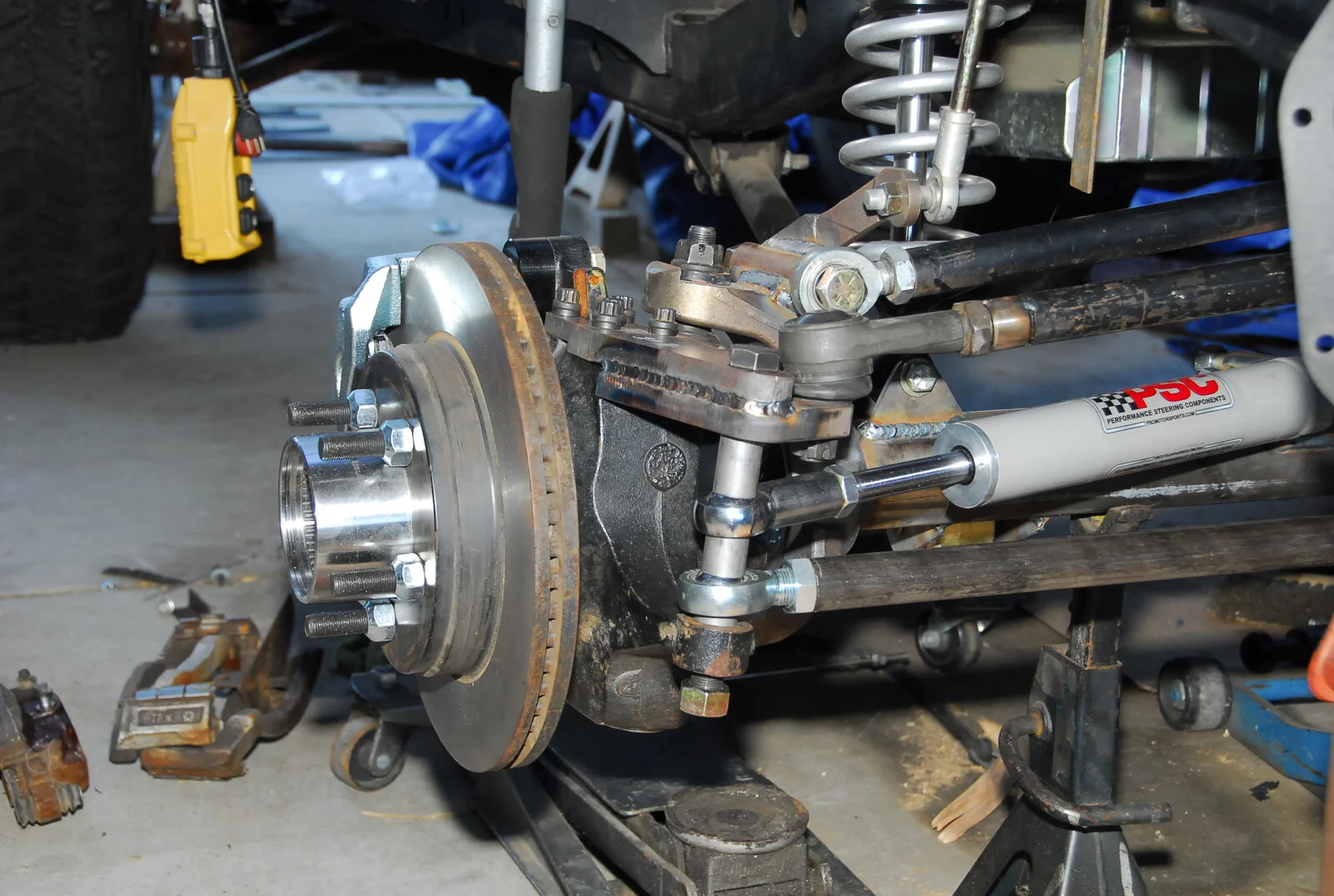

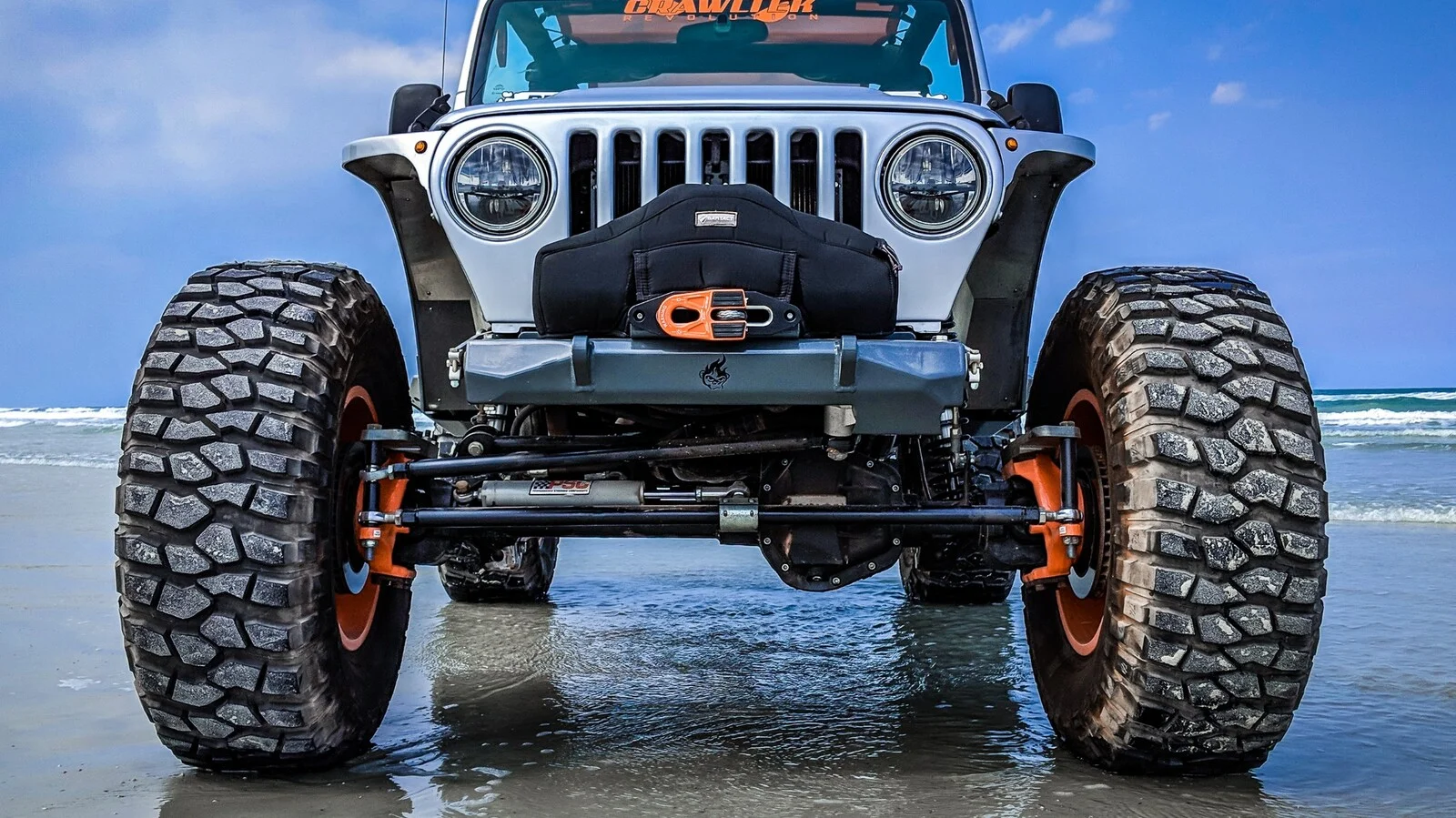

I've messed with about zero non-factory TJ axles...but what the hell is going on with the knuckles and that 8" long bolt that goes through them and the TRE joints? At least the joints are up next to the knuckle, but that drag link right in the middle...shear>bending.
For anyone that may think mrblaine isn't really a nice guy in general, so far this thread has proven you wrong because I don't think he's yet provided any link to the seller so we could ask," WTF did you do to that, and why?"
gimme a minute, i gotta change my shirt and grab my gloves.
dammit i never know what to wear........what do you think guys? stripes or go with basic black.
the 15K worth of axles is the only reason it might be worth 25k, much of the rest is a headache waiting to be discovered.
OP
The bolt is 3/4". The sleeves that set the height of each steering bit are minimum 1" .120 wall tube. When they are cut the correct length and the 3/4" bolt is torqued, the amount of force it would take to deflect them is astounding. I've built 20-30 that way without ever a single failure or issue.
OP
If I torque that bolt to a little over 300 ft lbs, it generates over 30,000 lbs. of clamping force. For the bolt to deflect, it has to see enough lateral force to tip the sleeves over sideways with that much clamping force preventing it. It it way overkill for any steering forces you might encounter including pretty hard hits on rocks at speed with a tire.
yeah. Now that I think about it, it's pretty easy to look at it and assume the sleeves just locate the rod ends without thinking about the immense amount of shear stress it would take sandwiching the vertical axis of the sleeve to allow any movement. It's actually pretty elegant.
OP
The sleeves having to tip over really adds a lot of strength to the design. In order for it to move, one side of the sleeve has to compress and the other side has to have a gap open up. The bolt stretch with that much force really makes that very hard to do. Plus, you can put the rod ends anywhere on the bolt vertically and get stuff where you need it to be.
There has a been a few, but I vote for weekly installments!
