I thought I would do a series of posts regarding the AEM Infinity install. I guess we can call this "Infinity Part 1".

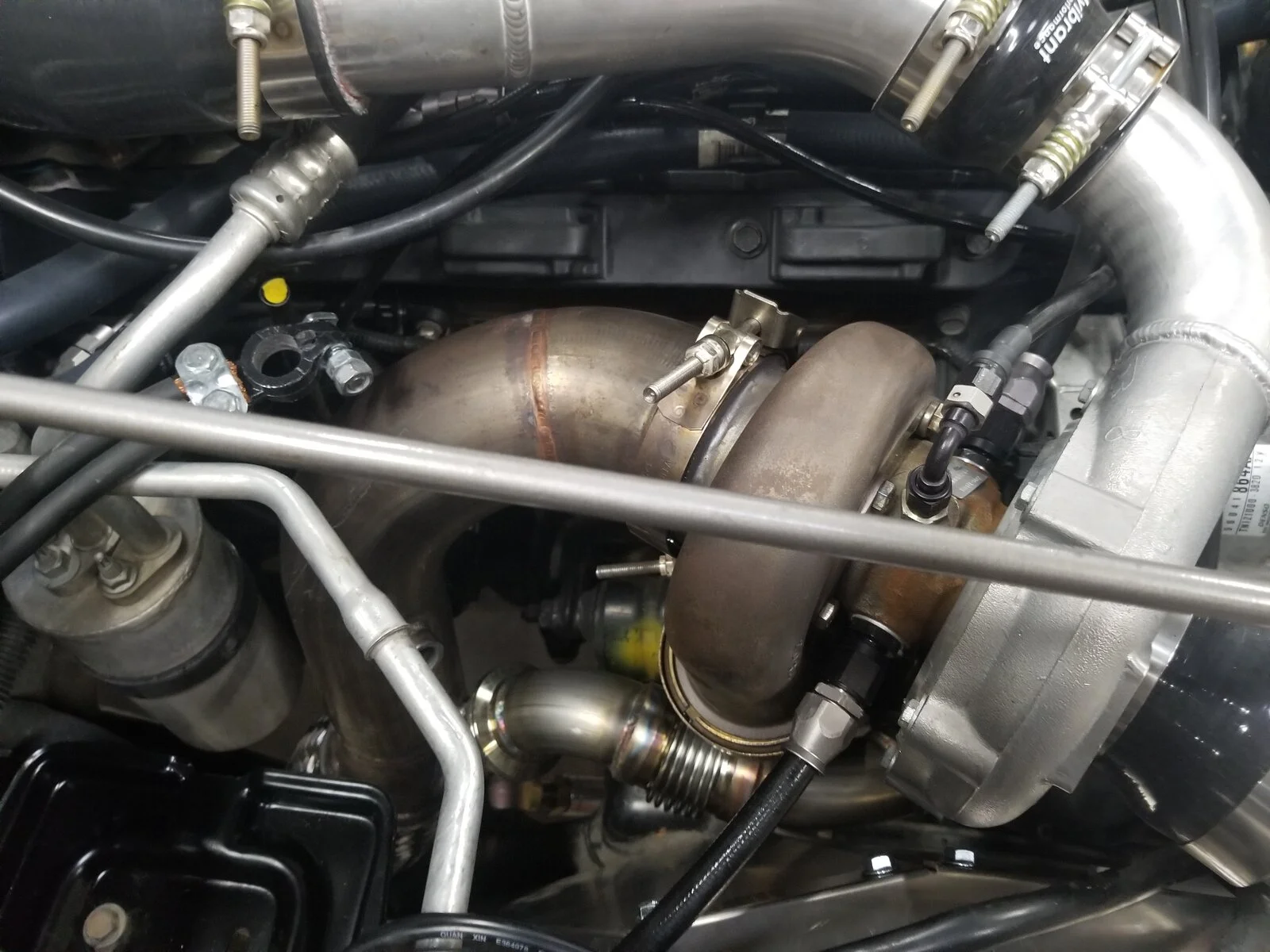

As a bit of an overview the Infinity is used as a stand alone, but the factory PCM is kept to drive the gauges as well as the alternator, A/C and cruise control. The Infinity is used to control fuel injectors, coils, idle stepper and a few other things. The PCM is still in its original mounting position, and is connected to the Infinity by a jumper harness that separates the PCM items from the Infinity items and the shared items. The Infinity is mounted under the dash on the driver's side to the bottom of the steering column.

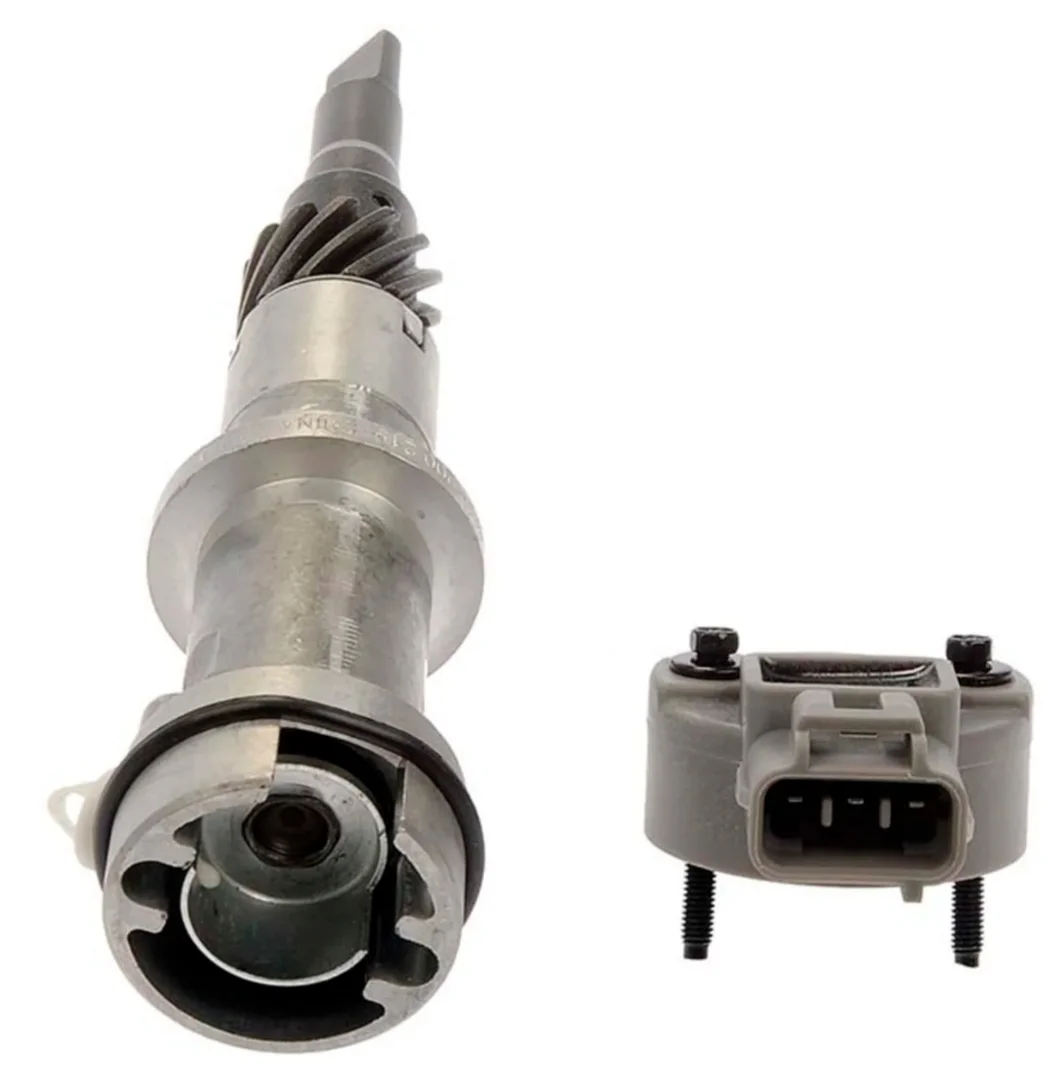

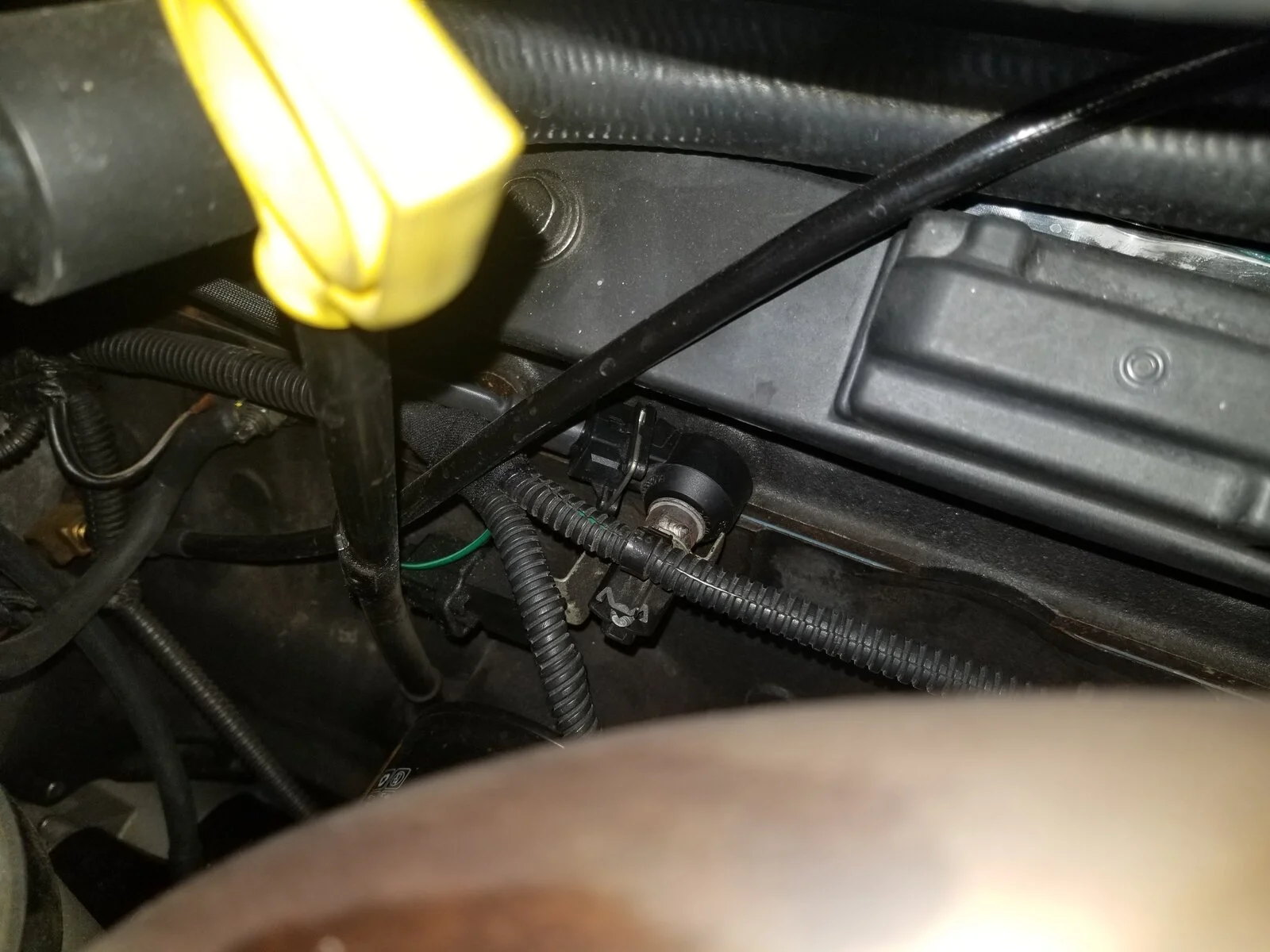

I'm going to start off with what I consider probably the most important aspect of stand alone computer integration, QR 0 the cam sensor, crank sensor and firing order. Without all of those items working properly together it will never start and run correctly. The AEM Infinity has an entire library of compatible cam and crank patterns. Unfortunately the Jeep 4.0 engine is not a supposed engine meaning there is no option to use the factory generated patterns. The Infinity does however have the ability to accept generic patterns. There are several options available for patterns, but I chose the 6 tooth hall effect sensor crank pattern with the 1 tooth hall effect sensor cam sensor. The cam sensor was easy for me as the 2002 has the pre-opda hall effect cam sensor. It uses a single tooth wheel and generates a single tooth pulse for every 720 degrees of crankshaft rotation. I know that the later opda units have several teeth on the cam sensor pickup wheel. Those would not work with the Infinity cam pickup without modifications. I simply tee'd into the cam sensor output and wired that to the Infinity.
For the crank sensor things are a bit more complicated. The 2002 uses a flywheel based crank pattern. The pattern is 3 sets of 4 teeth. I could have made some filler blocks to weld in and make the pattern 6 even spaced teeth, however I wanted to retain the factory crank pattern to drive the tachometer through the factory PCM. What I ended up doing was modifying the front crank pulley by cutting 6 even spaced teeth in the shell. I then added a sensor and bracket to the front of the engine that picks up the crankshaft position and sends the signal to the Infinity. Once that was done I could program the Infinity to use the 6 tooth crank and 1 tooth cam pattern. I then set the firing order to the factory Jeep 4.0 pattern. Next I set the option for wasted spark and assigned the coils. At this point I could crank the engine and check the timing. The Infinity has a setting for trigger offset. This setting allows you to set the degrees of separation between the cam and crank pattern theoretical TDC and actual mechanical cylinder #1 TDC. This is achieved by use of a wizard tool. Once setup correctly the timing displayed in the Infinity is equal to the actual timing advance at the engine. At that point cranking the engine results in the Infinity displaying RPM and sync status.
Images

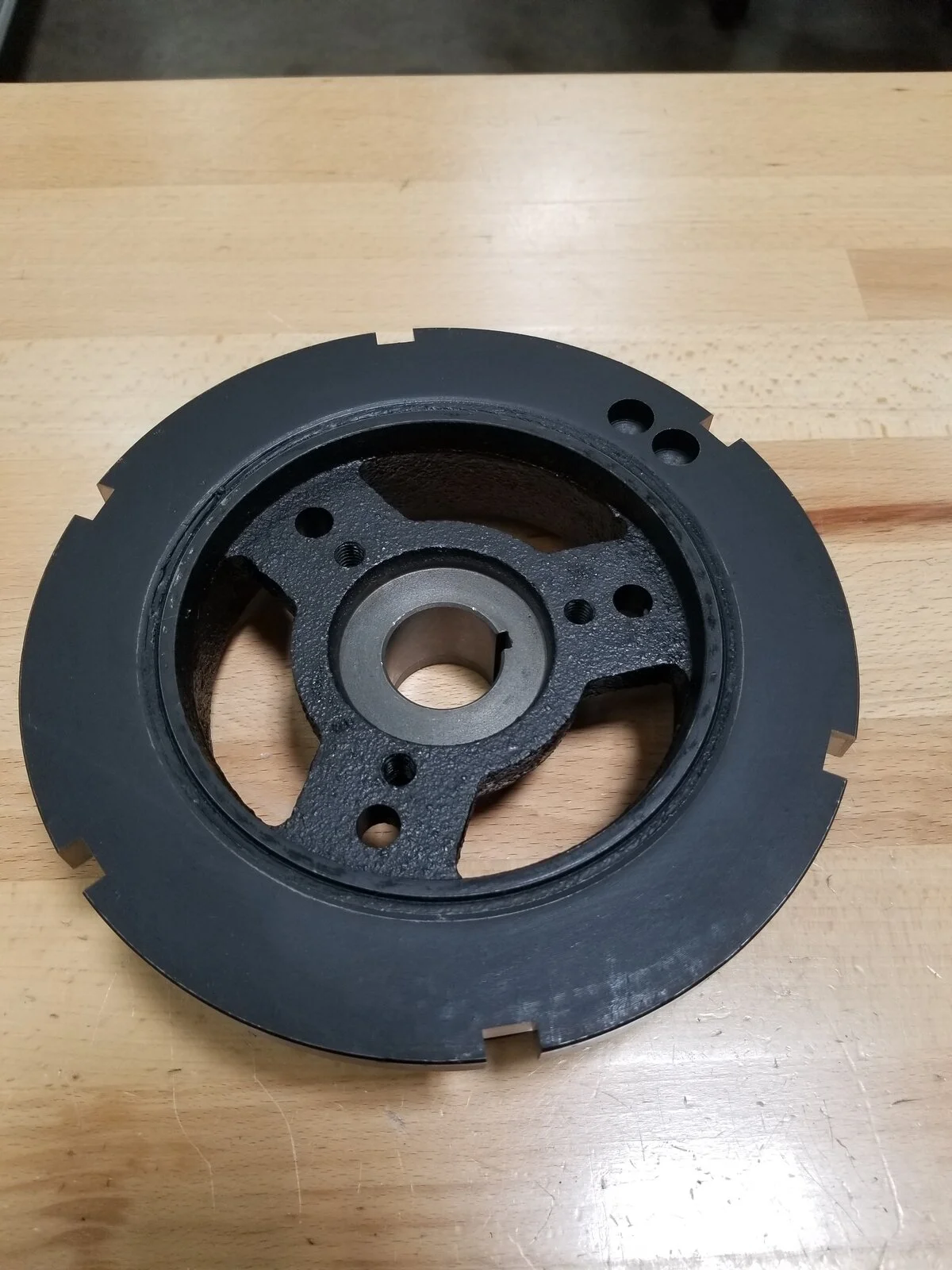

1. Modified crank damper
2. Crank sensor mount

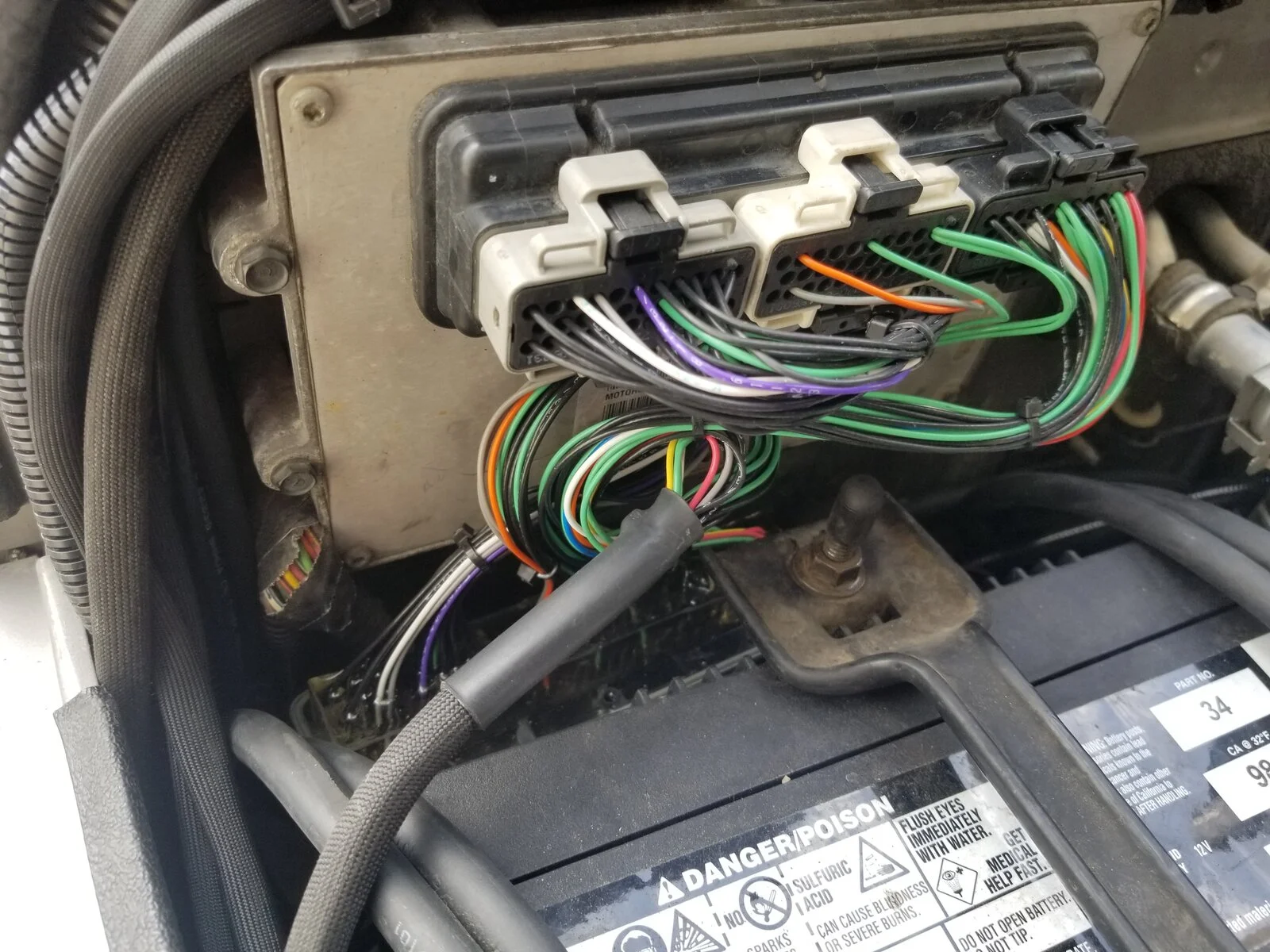

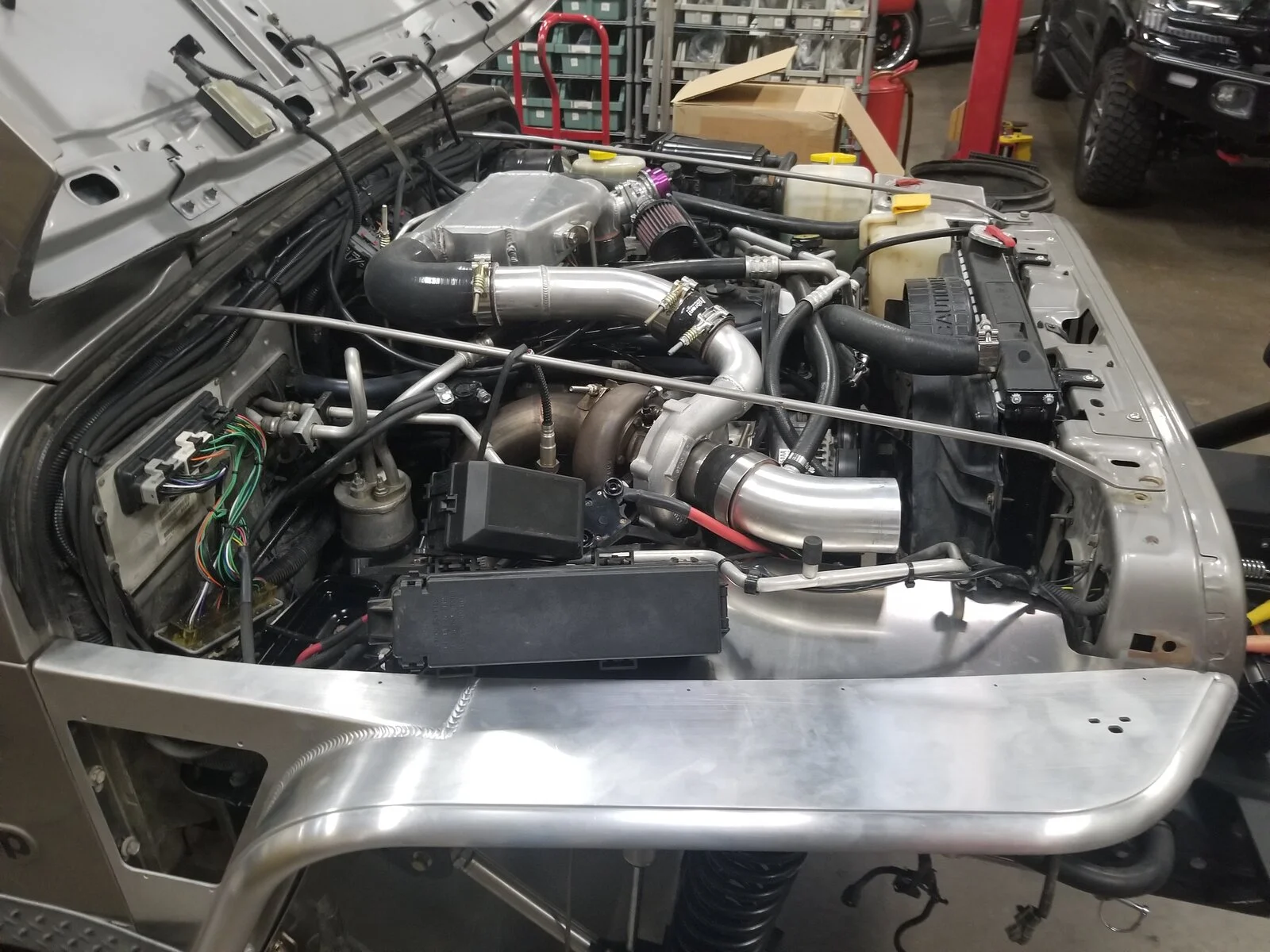

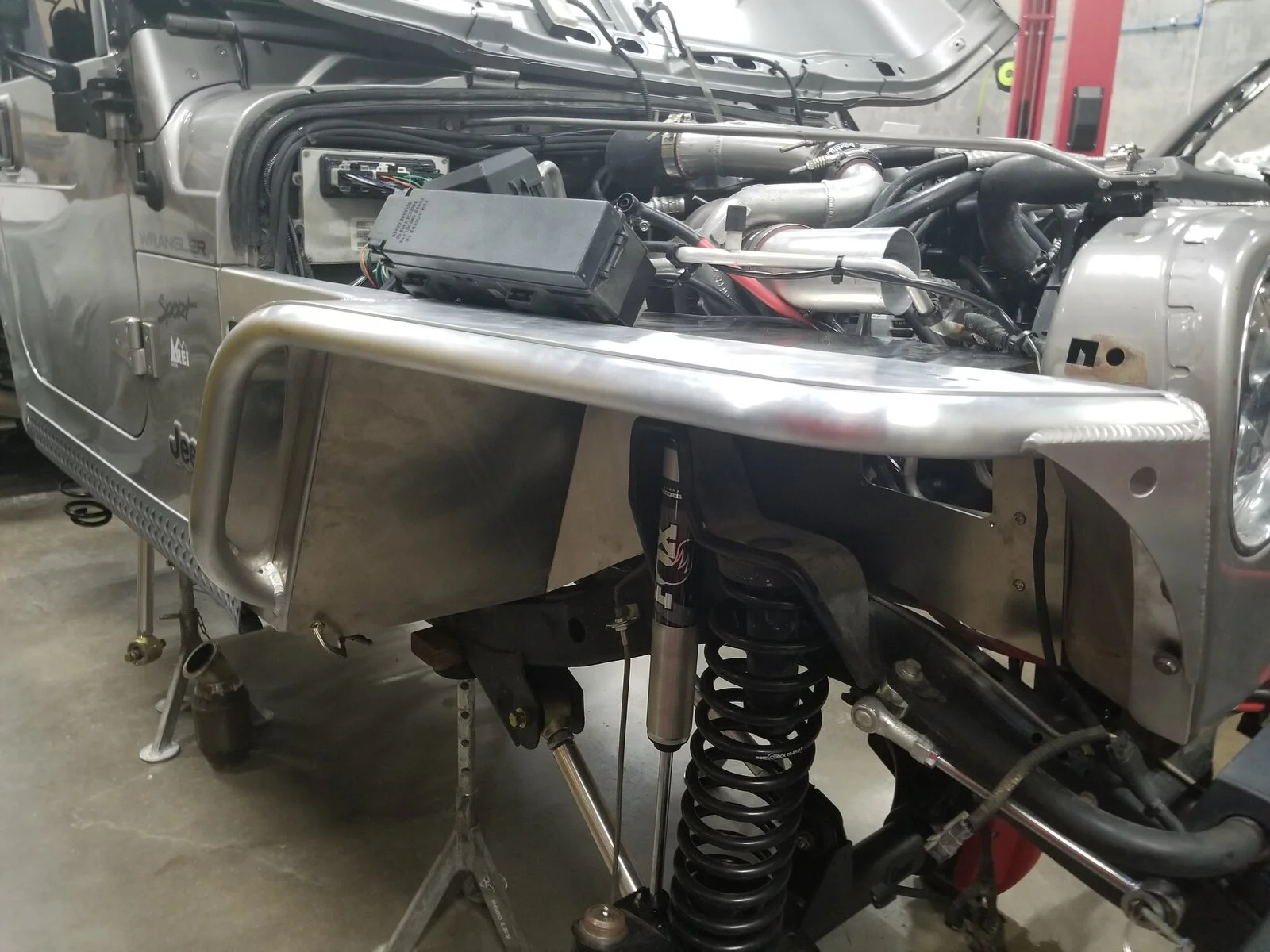

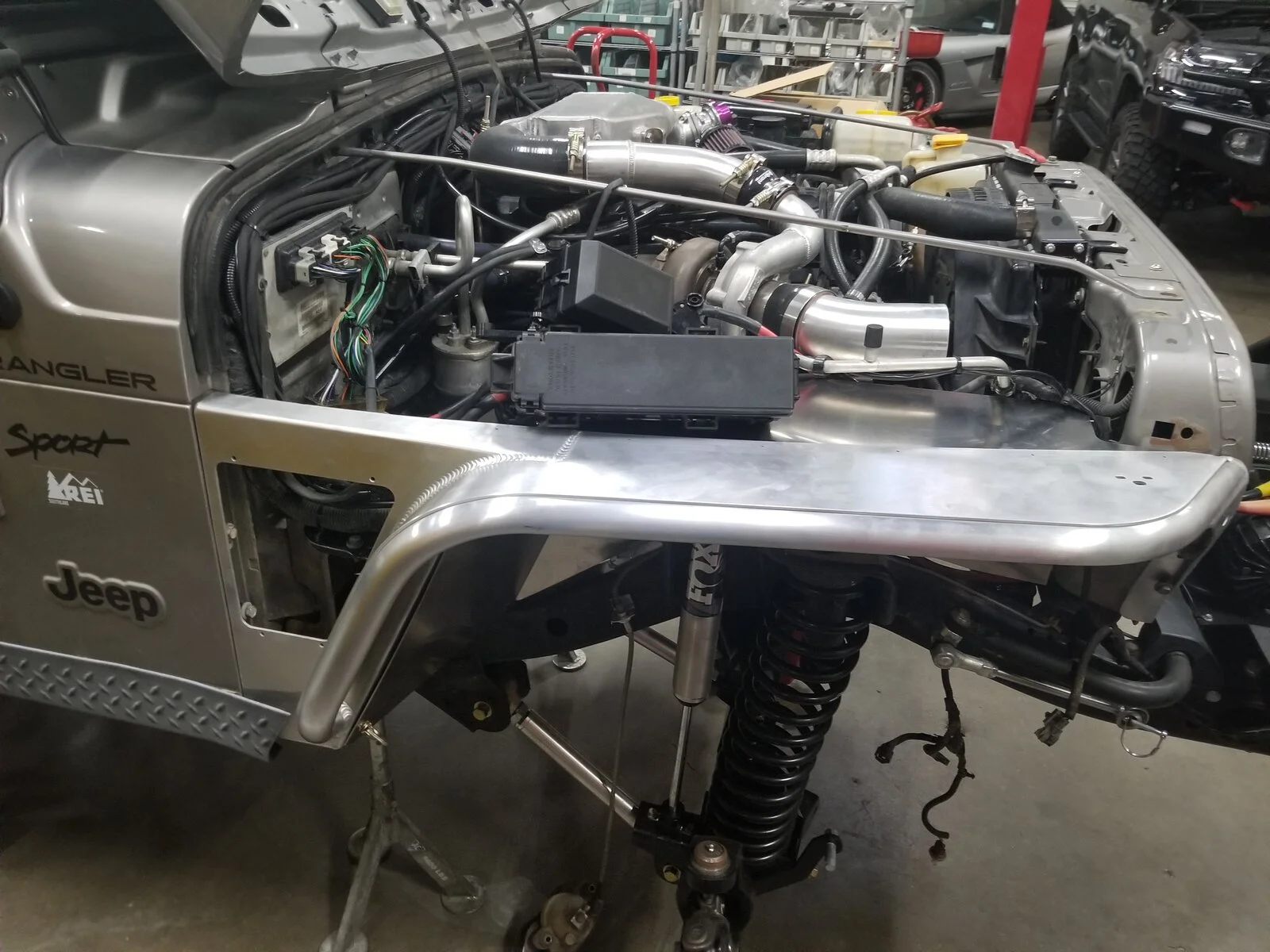

3. Factory PCM with jumper harness

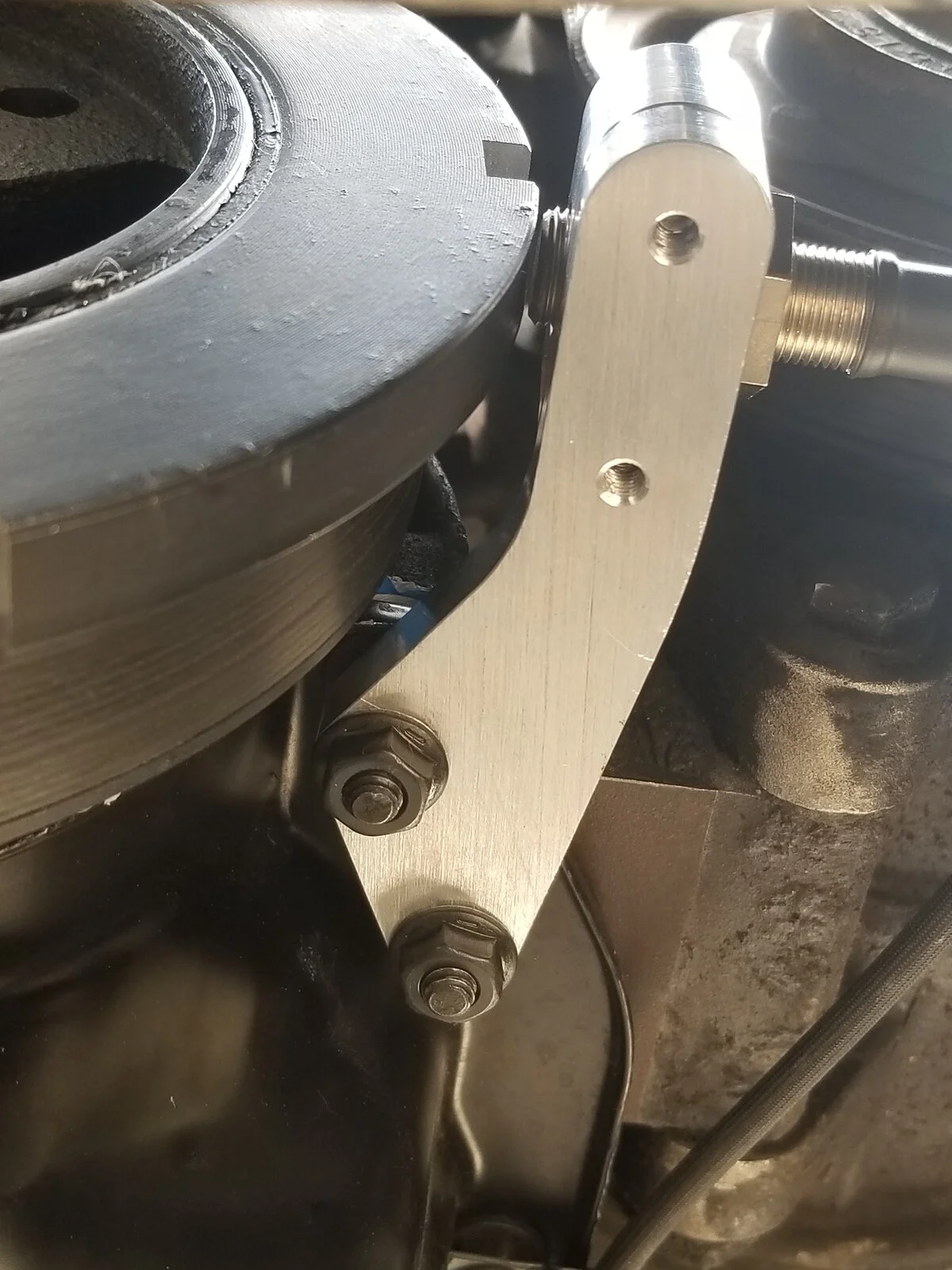

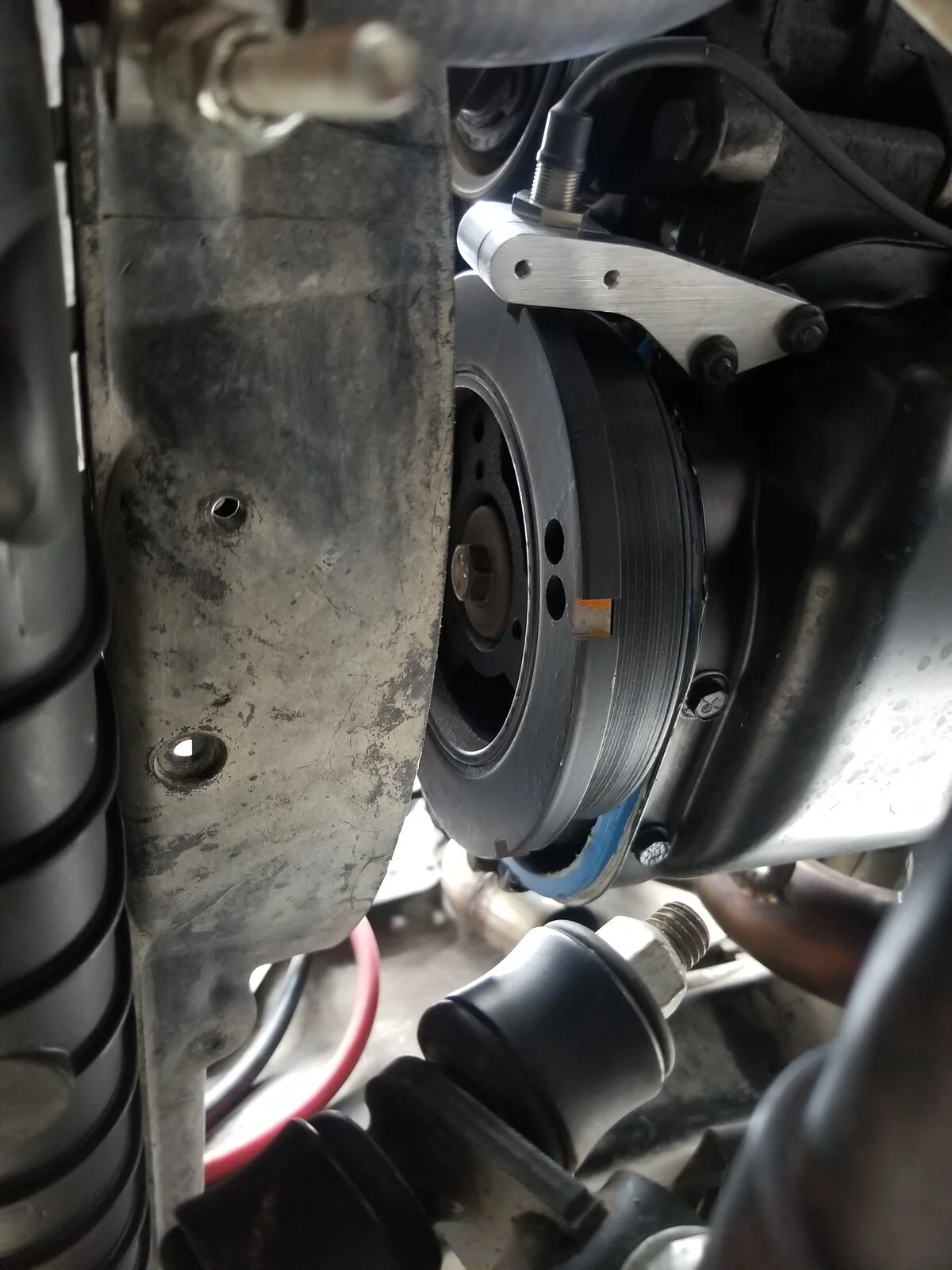

4. Modified damper with sensor and bracket

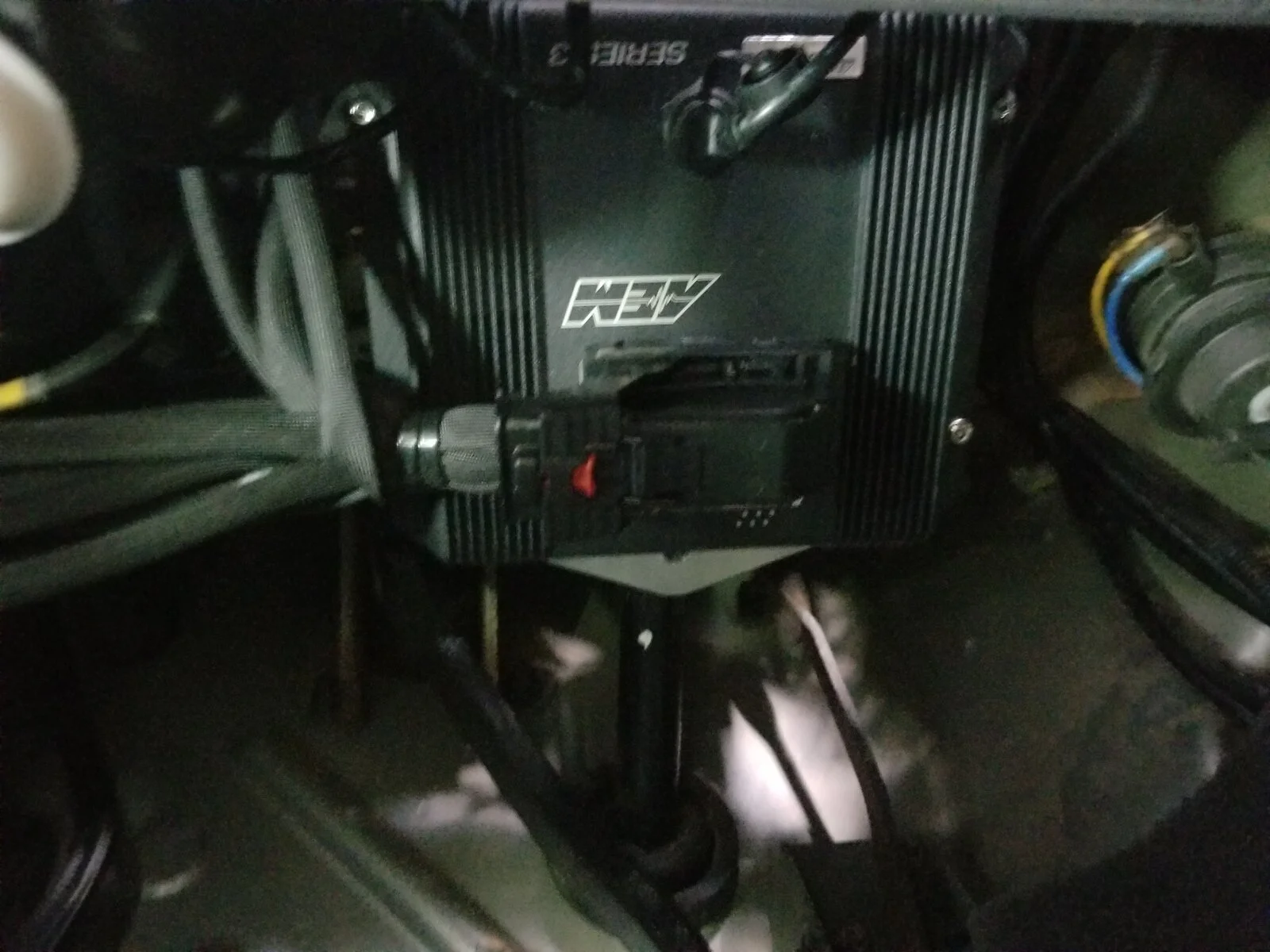

5. Infinity mount under dash
As a bit of an overview the Infinity is used as a stand alone, but the factory PCM is kept to drive the gauges as well as the alternator, A/C and cruise control. The Infinity is used to control fuel injectors, coils, idle stepper and a few other things. The PCM is still in its original mounting position, and is connected to the Infinity by a jumper harness that separates the PCM items from the Infinity items and the shared items. The Infinity is mounted under the dash on the driver's side to the bottom of the steering column.
I'm going to start off with what I consider probably the most important aspect of stand alone computer integration, QR 0 the cam sensor, crank sensor and firing order. Without all of those items working properly together it will never start and run correctly. The AEM Infinity has an entire library of compatible cam and crank patterns. Unfortunately the Jeep 4.0 engine is not a supposed engine meaning there is no option to use the factory generated patterns. The Infinity does however have the ability to accept generic patterns. There are several options available for patterns, but I chose the 6 tooth hall effect sensor crank pattern with the 1 tooth hall effect sensor cam sensor. The cam sensor was easy for me as the 2002 has the pre-opda hall effect cam sensor. It uses a single tooth wheel and generates a single tooth pulse for every 720 degrees of crankshaft rotation. I know that the later opda units have several teeth on the cam sensor pickup wheel. Those would not work with the Infinity cam pickup without modifications. I simply tee'd into the cam sensor output and wired that to the Infinity.
For the crank sensor things are a bit more complicated. The 2002 uses a flywheel based crank pattern. The pattern is 3 sets of 4 teeth. I could have made some filler blocks to weld in and make the pattern 6 even spaced teeth, however I wanted to retain the factory crank pattern to drive the tachometer through the factory PCM. What I ended up doing was modifying the front crank pulley by cutting 6 even spaced teeth in the shell. I then added a sensor and bracket to the front of the engine that picks up the crankshaft position and sends the signal to the Infinity. Once that was done I could program the Infinity to use the 6 tooth crank and 1 tooth cam pattern. I then set the firing order to the factory Jeep 4.0 pattern. Next I set the option for wasted spark and assigned the coils. At this point I could crank the engine and check the timing. The Infinity has a setting for trigger offset. This setting allows you to set the degrees of separation between the cam and crank pattern theoretical TDC and actual mechanical cylinder #1 TDC. This is achieved by use of a wizard tool. Once setup correctly the timing displayed in the Infinity is equal to the actual timing advance at the engine. At that point cranking the engine results in the Infinity displaying RPM and sync status.
